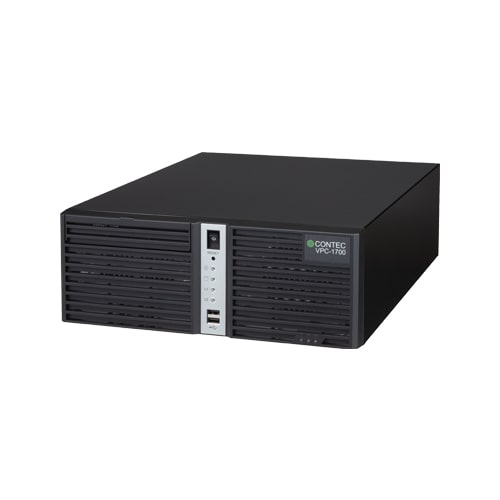

VPC-1700-G_img1VPC-1700-G_img1

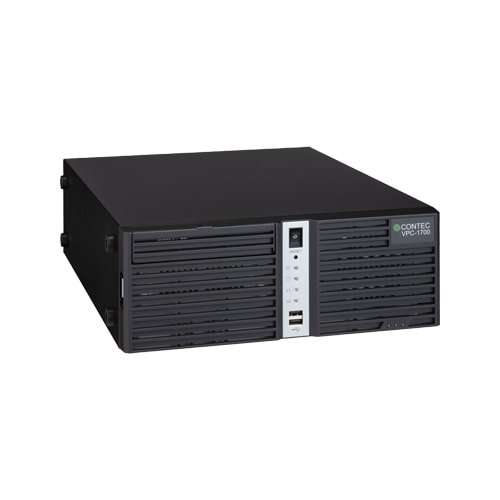

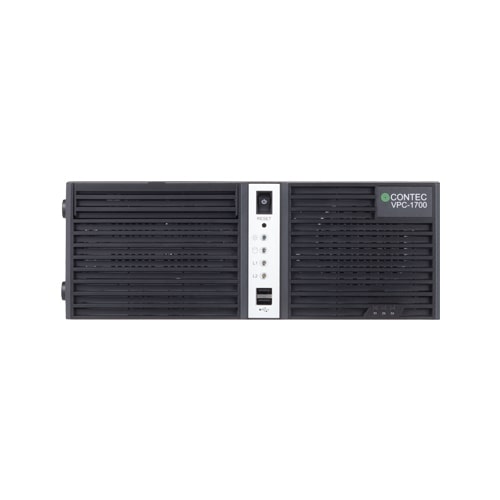

VPC-1700-G

  • Intel® Core™ processor series Coffee Lake Supported
  • High-performance graphics with CPU embedded type
  • Mirroring (RAID1) supported
  • Removable storage adopted
  • Expand your peripherals with various interfaces
  • The selection of expansion slots from 1x PCI-Express(x1), 2x PCI or 3x PCI

Data Sheet PDF

SKU: VPC-1700-G Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a BTO industrial computer that is equipped with a 8th generation Intel® Core™ processor series. The Intel® Q370 chipset with DDR4 memory (8GB to 32GB) provides advanced computing and graphical performance. This product features a variety of interfaces such as one each port of DVI-I, HDMI, DisplayPort, four USB3.1 Gen1(USB3.0) ports (rear: 4), four USB2.0 ports (front:2, rear:2), four serial ports (RS-232C/422A/485×1, RS-232C×3), and three 1000BASE-T ports, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals. Two types of expansion slots are provided: 1x PCI-Express (x1) slot and 2x PCI slots, or 3x PCI slots.

  • Intel® Core™ processor series Coffee Lake Supported
    • This product contains a power-saving, high performance 8th generation Intel® Core™ processor and provides advanced computing and graphical performance without consuming massive power. Taking up CPU embedded type can contribute to longer-term product availability.
  • High-performance graphics with CPU embedded type
    • Full HD video can be smoothly played with the Intel® HD Graphics 630/610. Furthermore, the product can support full HD outputs from three screens of the DVI-I, DisplayPort, and HDMI.
  • Mirroring (RAID1) supported
    • Mirroring (hardware or software option) can be configured to suit the application and ensure the system to be redundant.
  • Removable storage adopted

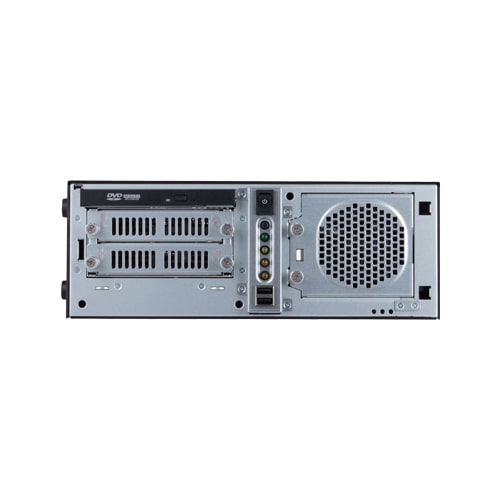

    • The front-accessible 3.5 inch SATA storage supports mirroring and other RAID functions.
  • Expand your peripherals with various interfaces

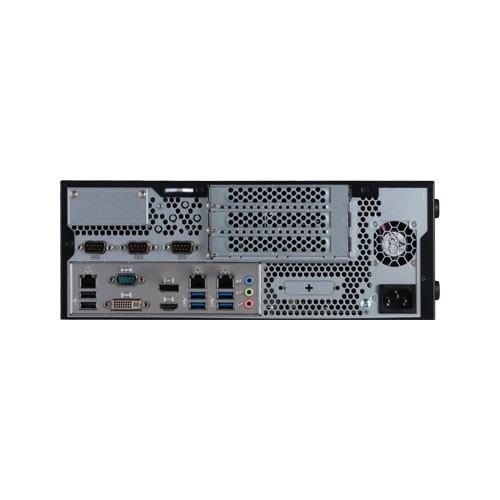

    • Interfaces including DVI-I, HDMI, DisplayPort, 1000BASE-T x 3, USB3.1 Gen1 (USB3.0) x 4, USB2.0 x 4, serial port (RS-232C/RS-422A/RS485 x 1, RS-232C x 3), and audio are provided.
  • The selection of expansion slots from 1x PCI-Express(x1), 2x PCI or 3x PCI
    • Expansion slots can be selected from 1x PCI-Express (x1) slot and 2x PCI slots, or 3x PCI slots. The maximum size of the board that can be set is 176(L) x 106(H)[mm].

Specifications

Specifications
Mechanical Design
Mounting Desktop; Wall Mount
Software Support
Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
Core System
CPU Generation (Development code) 8th Gen. (Coffee Lake-S)
Processor Core i7-8700T; Core i5-8500T; Celeron G4900T
CPU socket LGA1151
Memory up to 32GB; 8GB
RAS Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
GPU
AI Performance
Security TCG TPM 2.0
Interface
Video 1x DisplayPort; 1x HDMI; 1x DVI-I
LAN 3x 1000BASE-T
Wireless
Audio 1x Line out; 1x Line in; 1x Mic-in
I/O 4x USB3.2 Gen1 (USB3.0); 4x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
Memory card
Expansion Slot
Expansion bus 3 Slots (1x PCI Express(x1), 2x PCI); 3 Slots (3x PCI)
Drive bay 2x 3.5-inch bay (SATA); 1x 2.5-inch shadow bay (SATA)
Power
Input voltage 100 to 240VAC
Environment
Operating temperature 5 to 40°C (41 to 104°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Standards & Certifications CE; FCC Class A; VCCI Class A

Ordering Informations

Ordering Information
Model Description Certification

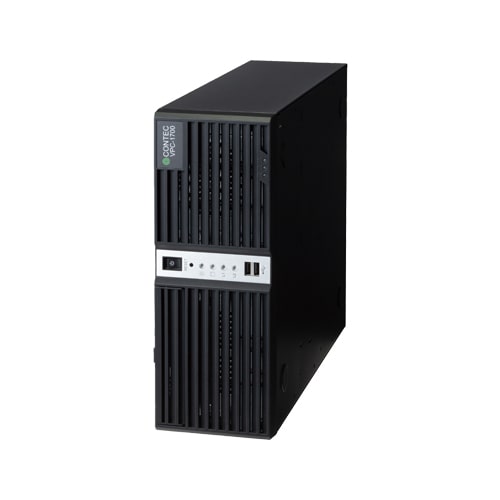

VPC-1700-G Slim Tower PC / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x1), 2x PCI / 3x PCI
  • CE marking
  • FCC compliant
  • VCCI
BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation *1.

CPU
  • Core i7-8700T
  • Core i5-8500T
  • Celeron G4900T
Memory
  • 8GB
  • 16GB
  • 32GB
Storage 1
  • 3.5 inch HDD 2TB / Removable
  • 3.5 inch HDD 4TB / Removable
  • 2.5 inch SSD 256GB / Removable
  • 2.5 inch SSD 512GB / Removable
  • 2.5 inch SSD 1TB / Removable
  • None
Storage 2 *2
  • 3.5 inch HDD 2TB / Removable
  • 3.5 inch HDD 4TB / Removable
  • 2.5 inch SSD 256GB / Removable
  • 2.5 inch SSD 512GB / Removable
  • 2.5 inch SSD 1TB / Removable
  • None
Optical Drive / Hard Disk
  • DVD super multi drive
  • 2.5 inch SSD 256GB
  • 2.5 inch SSD 512GB
  • 2.5 inch SSD 1TB
  • None
RAID(Mirroring)
  • Software RAID
  • Hardware RAID
  • None
OS
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean)
  • None
Expansion Slots
  • 1x PCI Express(x1), 2x PCI
  • 3x PCI
  • None
Options
  • Keyboard
  • Mouse
  • Stand
  • Durable case fan(Sanyo denki)
  • OS installation drive selection
  • None

*1 There are combinations that can not be configured. Please inquire in detail.*2 If needs to configure the RAID function, selects the same device for Storage 2 as of Storage 1

Options
Storage
Item Item Name
HDD-2TS-3 3.5-inch 2TB SATA Hard Disk Drive
HDD-2TS-3R 3.5-inch 2TB SATA Hard Disk Drive, RAID
HDD-4TS-3 3.5-inch 4TB SATA Hard Disk Drive
HDD-4TS-3R 3.5-inch 4TB SATA Hard Disk Drive, RAID
SSD-256GS-2T 2.5-inch 256GB SATA Solid State Drive
SSD-256GS-2TR 2.5-inch 256GB SATA Solid State Drive, RAID
