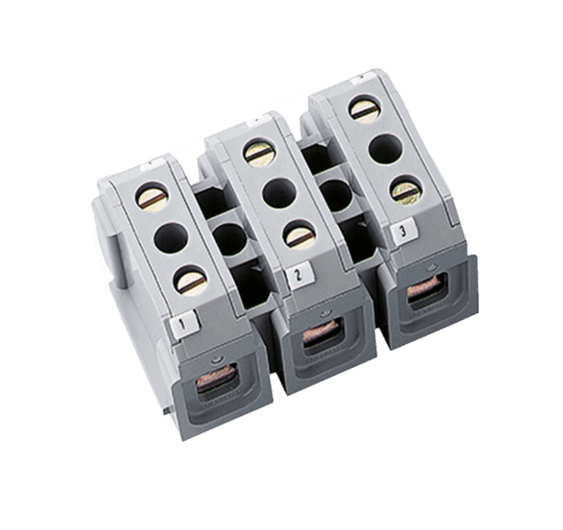

The continuous demand for increased nominal insulation voltage and current carrying capacity in Ex e terminals made us these larger BARTEC terminal blocks.Terminals for 4 mm² and 16 mm² conductors are available in 2- and 3-pole versions. Terminals for 35 mm² conductors are available in a 3-pole version. The terminals can be fitted directly onto a metal base or onto a 10 x 5 mm mounting rail.
| Dimensions | see data sheet |
|---|---|
| Material | Insulation: Duroplast Terminal: 4 mm²/16 mm²: copper alloy 35 mm²: galvanised steel |
| Installation | BARTEC mounting rail or base of enclosure |
| Voltage | 1000 V |
