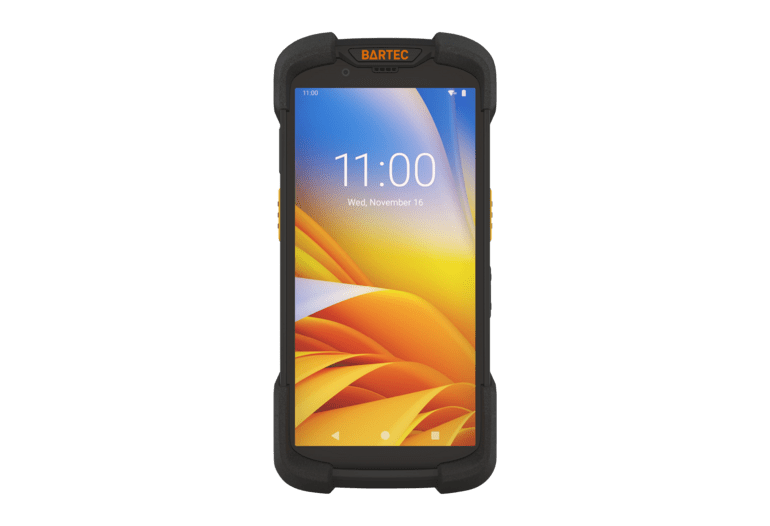

TC78ex-NI Touch Computer

Login to See Prices

for Zone 2/22 and Class I,II,III Div 2

B7-A2D-211121110**

Certified for Zone 2 and Div. 2 hazardous areas
Ultra-rugged yet lighter and thinner than previous generations
Faster, future-ready wireless connections with WiFi 6E and 5G
6-inch Full HD+ display
Advanced Range scanning (up to 12m)
More value with Mobility DNA software

Category: Touch & Mobile Computers

Description

Marking

ATEX:Ex II 3G Ex ic op is IIC T4 GcEx II 3D Ex ic op is IIIC T135°C Dc IP64

IECEx:Ex ic op is IIC T4 GcEx ic op is IIIC T135°C Dc IP64

UKEX:Ex II 3G Ex ic op is IIC T4 GcEx II 3D Ex ic op is IIIC T135°C Dc IP64

NEC/CEC 500/505:Class I Div. 2 Groups A, B, C and DClass II Div. 2 Groups F, GClass III; T4

Ambient Temperature

Operating temperature-20°C to +50°C (-4°F to 122°F)Storage temperature-40°C to +70°C (-40°F to 158°F)(without battery)

Certification

ATEX Zone 2/22: DE EN
IECEx Zone 2/22: EN
UKEX Zone 2/22: EN
NEC/CEC 500/505: EN
