Allows to implement artificial inteligence (AI) and algorithms to develop custom solutions.

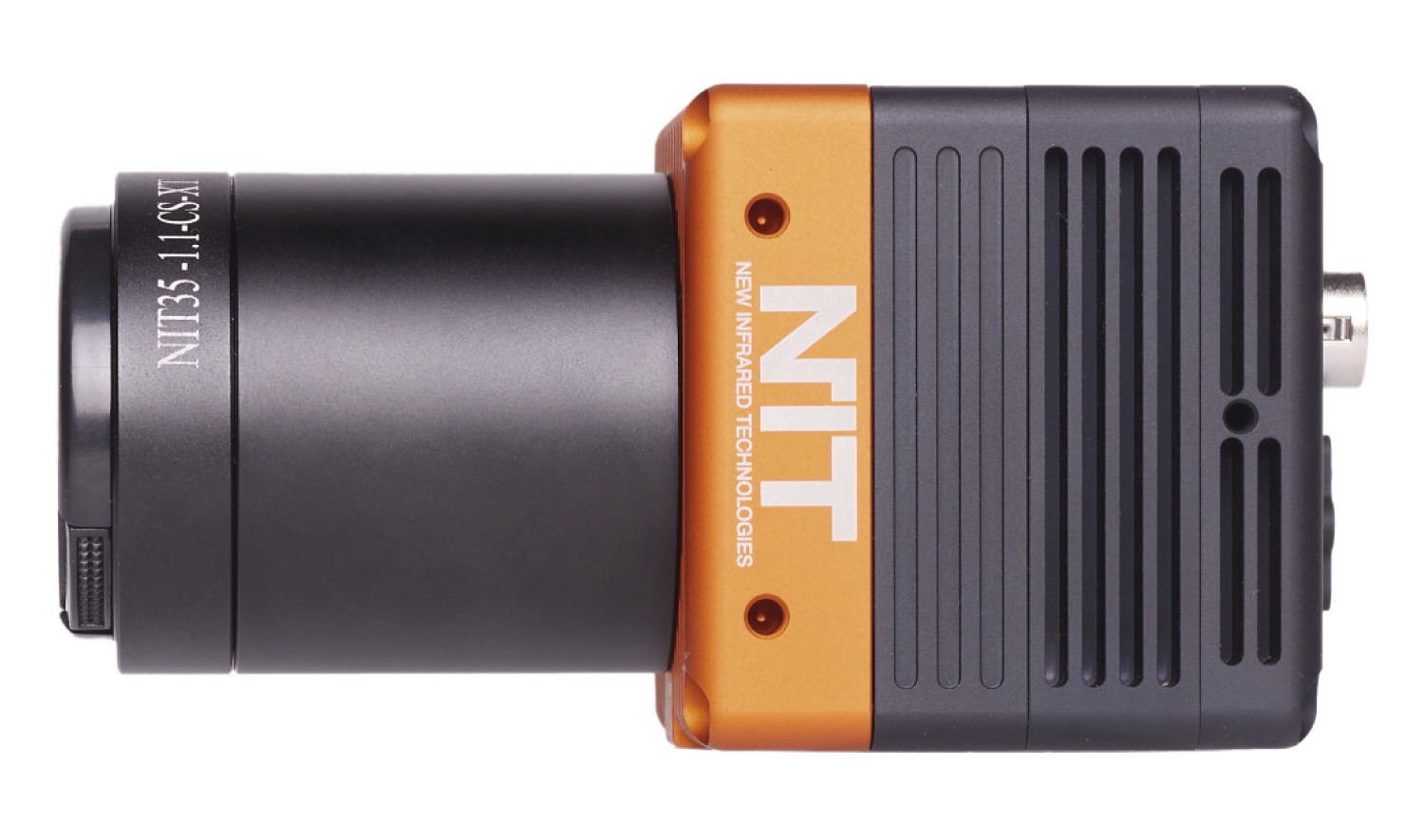

| DETECTOR TYPE | VPD PbSe FPA with digital interface, uncooled operation |
|---|---|
| ARRAY FORMAT | 128×128 (16384 pixels) |
| PIXEL SIZE | 50 um x 50 um (square format) |
| SPECTRAL RANGE | MWIR, 1.0 µm to 5.0 µm |
| PEAK WAVELENGTH OF DETECTION | 3.7 microns |
| INTEGRATION TIME | 10 – 1000 µs, selectable |
| RAW DATA COMMUNICATION | 14 bit |
| INTERFACES | – GigE VISION 2.0 (GenICam compatible) with PoE – Multipurpose DI/DO connector (trigger IN/OUT) (cable sold separately) |
| MAXIMUM FRAME RATE | 4000 fps (TACHYON 16k CAMERA PLUS) (see table) |
| ROI | ROI windowing function (see table for full description of possible modes) |
| MECHANICAL SHUTTER | Mechanical shutter for 1-pt offset correction |
| START-UP TIME | < 10 seconds |
| POWER SUPPLY | PoE, 8 W (non-PoE operation requires 12 VDC) |
| Metal housing with rear connectors and tripod screw holes (M3 and M4) | |
| DIMENSIONS AND WEIGHT (W/O OPTICS) | 66 (L) x 62 (W) x 62 (H) (mm), 400 grams |
| OPTICS (STANDARD OPTION) | f=35 mm, F#1.1, FoV 10.5º x 10.5º, AR Coating (1 – 5 µm) Manual focus with CS-mount interface |
| SOFTWARE INCLUDED | – NIT SOFTWARE SUITE (Acquisition and visualization SW) – SDK available for custom software programming |
| MINIMUM TEMPERATURE OF DETECTION | 100 ºC |

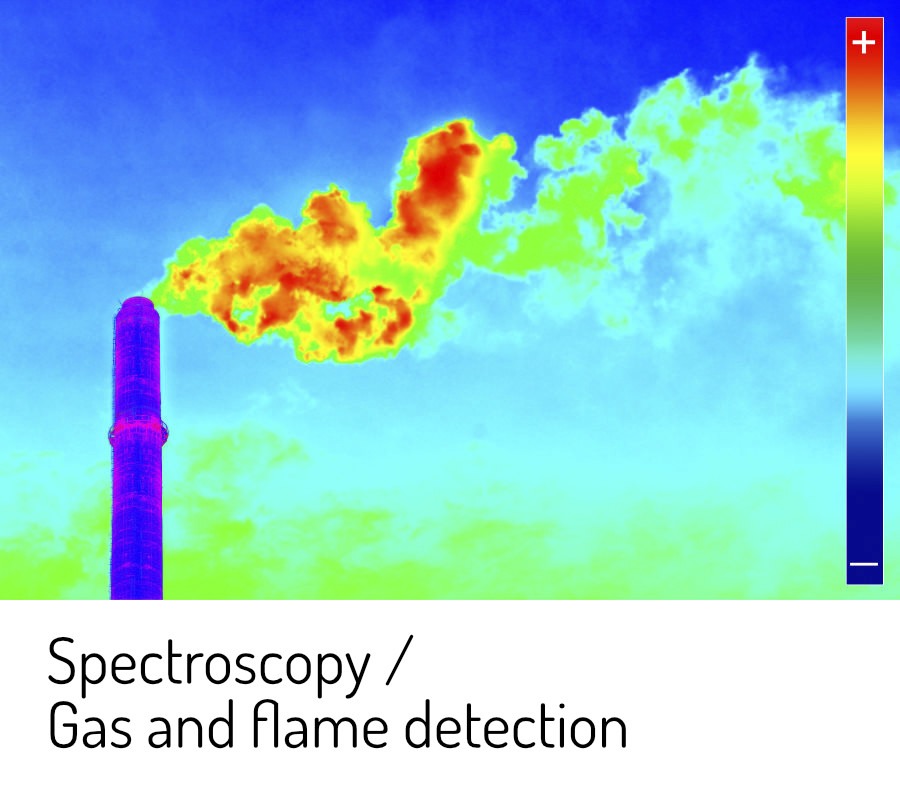

| INDUSTRIAL APPLICATIONS | Machine vision, additive manufacturing, industrial process monitoring, gas detection, spectroscopy, glass manufacturing quality assurance |
| TACHYON 16K | TACHYON 16K PLUS | |
|---|---|---|
| MAXIMUM FRAME RATE | 2000 frames per second @ 128 × 128 | 4000 frames per second @ 128 × 128 Allows higher frame rates using embedded ROI windowing functions |
| ACQUISITION MODE | 128 × 128: Interlaced acquisition 64 × 64, 32 × 32, 1 × 128: Global shutter acquisition |
All modes: Global shutter acquisition |
| WINDOWING MODES | 128 × 128 64 × 64 (center of FPA) 32 × 32 (center of FPA) 1 × 128 (center of FPA) |
Window position and dimensions configurable via software |
| NUC CORRECTION TABLES | Software correction | Hardware correction (4 preconfigured tables) |
| DATA TRANSMISSION MODES | RAW data, 14 bit | Selectable: – RAW data, 14 bit – NUC corrected, 16 bit – High-speed mode RAW/NUC: 12 bit |
