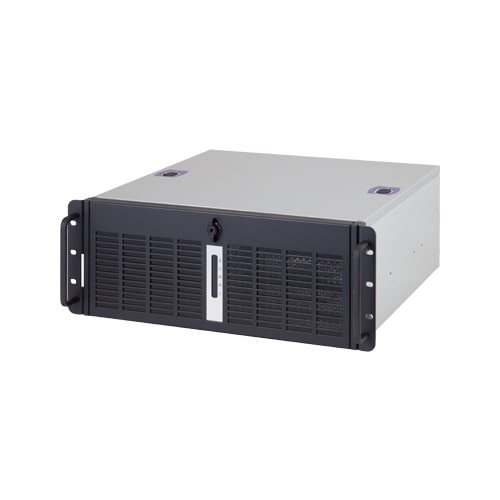

This product is a 19-inch rack-mount industrial-use PC that supports the 7th generation (Kaby Lake) of Intel® Core ™ series and contains the Q170 chipset. In addition to a wide range of interfaces, expansion slots of PCI bus×4, PCI Express (x16) bus×1, and PCI Express (x8) ×2 bus, PCI Express (x4) ×4 bus are equipped. The product adopts a highly reliable Japan-made power supply (mfd. by Nipron).Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers. Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use. Various selections and options are available to meet customer requests, including OS, CPU, memory, and storage options.
| Mounting | Rack Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 7th Gen. (Kaby Lake-S) |
|---|---|
| Processor | Core i7-7700; Core i5-7500; Core i3-7101E; Celeron G3930E |
| CPU socket | LGA1151 |
| Memory | up to 32GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 3x USB3.2 Gen1 (USB3.0) |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16); 2x PCI Express(x8); 4x PCI Express(x4); 4x PCI |
|---|---|
| Drive bay | 3x 5-inch bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | VCCI Class A |
| Model | Definition |
|---|---|
| Solution-ePC SR4120 – Rackmount PC / Intel 10th Gen. Core (Comet Lake-S + Q470) / 1x PCIe(x16) / 2x PCIe(x8) / 4x PCIe(x4) / 4x PCI / AC Power Supply SR4120 |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| SPF14SQ1701 [Limited Stock] | [End of Repair Service : July 24, 2031] Industrial Computer SPF14SQ1701 – Rackmount PC / Intel 7th Gen. Core (Kaby Lake + Q170) / 1x PCIe(x16) / 2x PCIe(x8) / 4x PCIe(x4) / 4x PCI / AC Power Supply |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| Power supply |
|
|---|---|
| CPU |
|
| Memory |
|
| Storage 1 (5″ bay) |
|
| Storage 2 (5″ bay) |
|
| Optical Drive (5″ bay) |
|
| RAID 1 (Mirroring)4 |
|
| OS |
|
Included mouse and keyboard |
Expansion COM / USB *8 |
|
Partitioning service |
|
Standard |
|
|
| Item | Item Name |
|---|---|
| HDD-2TS-3 | 3.5-inch 2TB SATA Hard Disk Drive |
| SSD-1TS-2T | 2.5-inch 1TB SATA SSD |
| SSD-256GS-2T | 2.5-inch 256GB SATA Solid State Drive |
| SSD-512GS-2T | 2.5-inch 512GB SATA SSD |
