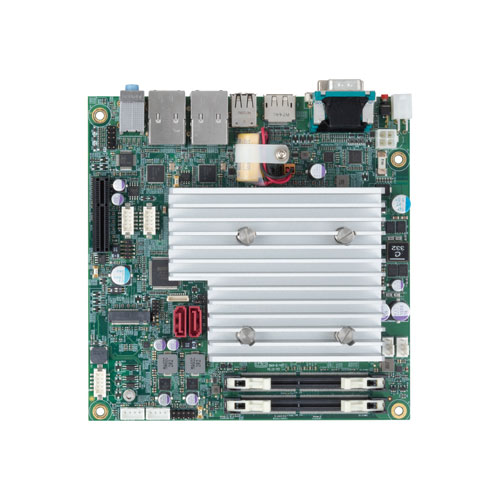

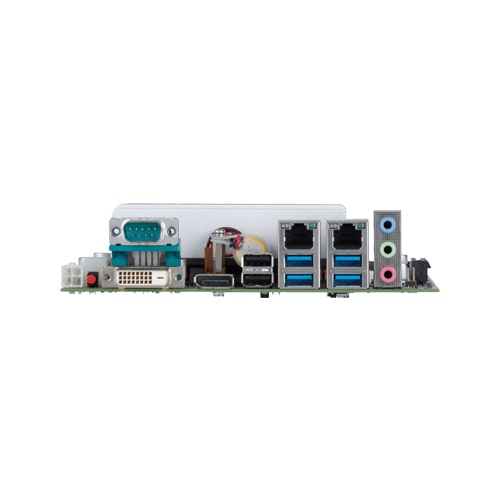

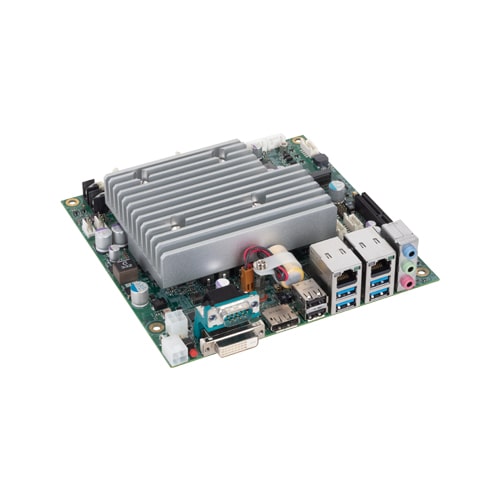

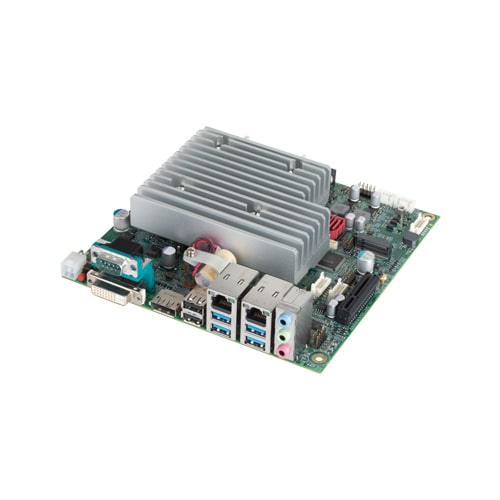

This product is the Mini-ITX mother board with M.2 slot.It adopts Seventh-generation Intel® Core i7/i5/Celeron Processor and DDR4 SDRAM memory with up to 32GB can be equipped.In addition, a variety of interface such as dual-LAN, USB3.0, Displayport, DVI-D, and RS-232C are provided.Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.
| Type | Mini-ITX |
|---|
| Supported OS | Windows 10 |
|---|
| CPU Generation (Development code) | 7th Gen. (Kaby Lake-U) |
|---|---|
| Processor | Core i5-7300U |
| CPU socket | – |
| Memory | up to 32GB; 8GB |
| RAS | Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |
| Video | 1x DisplayPort; 1x DVI-D |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x RS-232C |
| Memory card | – |
| Video | – |
|---|---|
| LAN | – |
| Audio | 1x Front audio (1xpin header connector) |
| I/O | 2x USB2.0; 2x RS-232C |
| Power connector | – |
| Expansion bus | 1x M.2 Key M (2242); 1x PCI Express(x4) |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F), during forced air cooling (0.5m/s); 0 to 55°C (32 to 131°F), during natural air cooling; 0 to 45°C (32 to 113°F), during natural air cooling |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| SMB-I73U01-LLVA | Industrial Motherboard / Mini-ITX / Core i5-7300U (Kaby Lake SoC) / DC Power Supply |
|
| Item | Item Name |
|---|---|
| PC-HDD100GS-2 | 2.5-inch 100GB SATA Hard Disk Drive |
| SSD-256GS-2M | 2.5-inch 256GB SATA Solid State Drive |
