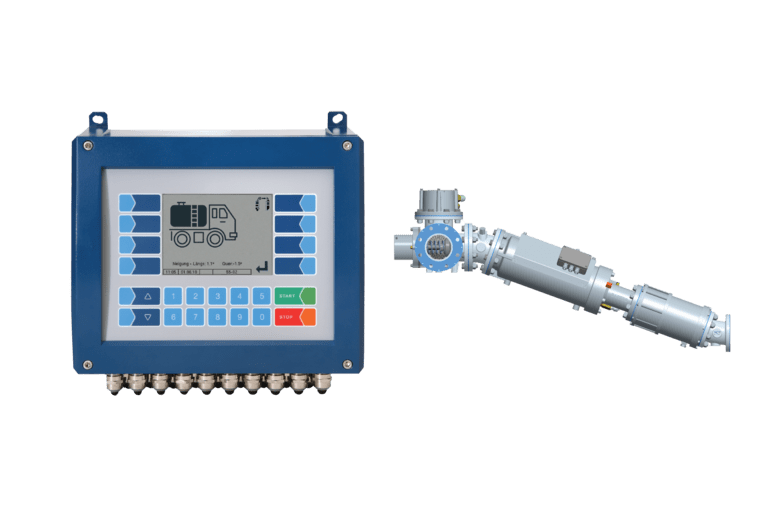

The unique and patented PETRO 3003 TIGER system works without any gas separator device or specific fine filter. It allows you to use up to three pumped wet hoses and an empty hose with only one integrated metering system, “TIGER EX”.
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved turbine wheel transducer with level and pressure sensor |
| Measurand: | Volume (l) |
| Measurement range: | Freely selectable in the flow range of the transducer |
| Type of liquid: | Liquids in the viscosity range < 20mPas at 20°C
(Heating oil, Gasoil, Diesel, Biodiesel, etc.) |
| Flow rate: | 30-300 l/min | 80-800 l/min | 100-1,000 l/min |
| Accuracy class: | Better than 0.5 |
| Total Weight: | Starting at 39 kg |
