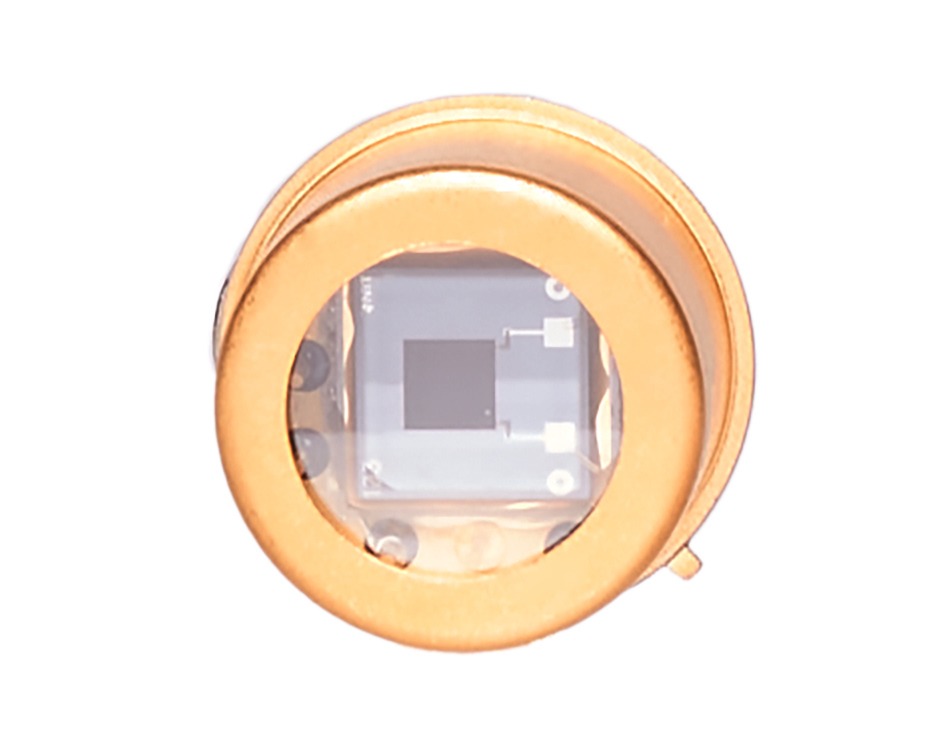

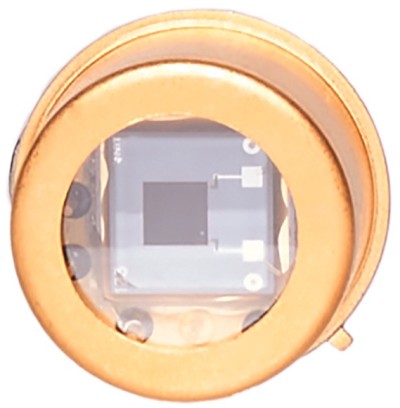

| AVAILABLE GEOMETRIES 1 mm x 1 mm, 2 mm x 2 mm |
| PACKAGINGS SMD non hermetic, TO-5 hermetic |
| READOUT ELECTRONICS External (not included) |
| UNCOOLED PERFORMANCE |
| SAPPHIRE WINDOW |
| Detector sensing material: VPD polycrystalline PbSe |
| Room temperature performance: Operational, no need of cooling devices |
| Standard geometry: Square pixels |
| Pixel size (mm²): 2 models: 1×1, 2×2 |
| IR detection band: MWIR (1–5 microns, peak wavelength @ 3.7 microns) |
| Spectral response: 1.0 – 5.0 microns |
| WLpeak: 3.7 microns |
| D* (WLpeak): 2×10⁹ Jones |
| D* (-3dB): 1.6 / 4.5 microns |
| Time constant (µs): < 2 µs |
| Biasing voltage (typ): 5 VDC |
| Element resistance: 0.1 – 2.0 MΩ |
| Power: 1 mW |
| Cooling: Uncooled (operational at room temperature) |
| Packaging: With sapphire window, 2 options: – SMD – TO-5 (with cap, hermetic packaging) |
| Operating temperature: +5 / +70 ºC |

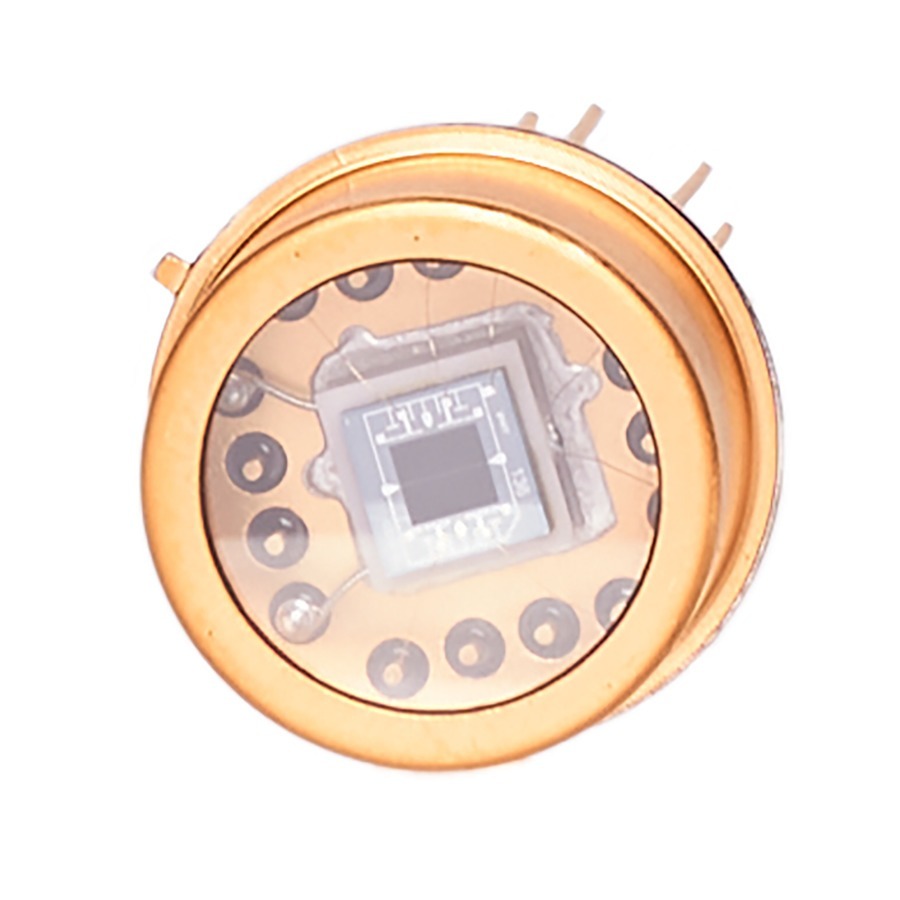

| AVAILABLE GEOMETRIES | 1 mm x 1 mm, 2 mm x 2 mm |
|---|---|
| PACKAGINGS | TO-8 hermetic (12 or 16 pins), 0.6” diameter |
| READOUT ELECTRONICS | External (no included) – compatible with LEPTON PREAMP with USB OUTPUT |
| COOLING STAGES | 1-TEC / 2-TEC |
| SAPPHIRE WINDOW | |
| CUSTOMIZABLE |
| VPD PbSe single element device | Detector size: 1×1 mm² / 2×2 mm² |
|---|---|
| Detection band: MWIR (1 – 5 microns) | Cooled detector with 1-TEC or 2-TEC stages for higher sensitivity |
| Thermistor calibration curve available | TO-8 hermetic package, 0.6-inch diameter (15.24 mm), 12 pin leads (2 for the TEC stage, 2 for the thermistor, 2 for the detector) |
| D* (lambda peak, 1000 Hz, 1.2 Hz):1x10E10 Jones |
| AVAILABLE GEOMETRIES 1 mm x 1 mm, 2 mm x 2 mm |
| PACKAGINGS TO-8 hermetic (12 or 16 pins), 0.6” diameter |
| READOUT ELECTRONICS External (no included) – compatible with LEPTON PREAMP with USB OUTPUT |
| COOLING STAGES 1-TEC / 2-TEC |
| SAPPHIRE WINDOW |
| CUSTOMIZABLE |
| VPD PbSe single element device | Detector size: 1×1 mm2 / 2 x 2 mm2 |
|---|---|
| Detection band: MWIR (1 – 5 microns) | Cooled detector with 1-TEC or 2-TEC stages for higher sensitivity |
| Thermistor calibration curve available | TO-8 hermetic package, 0.6-inch diameter (15.24 mm), 12 pin leads (2 for the TEC stage, 2 for the thermistor, 2 for the detector) |
| D* (lambda peak, 1000 Hz, 1.2 Hz): 1x10E10 Jones |
