SH-9210AT-POE_img1SH-9210AT-POE_img1

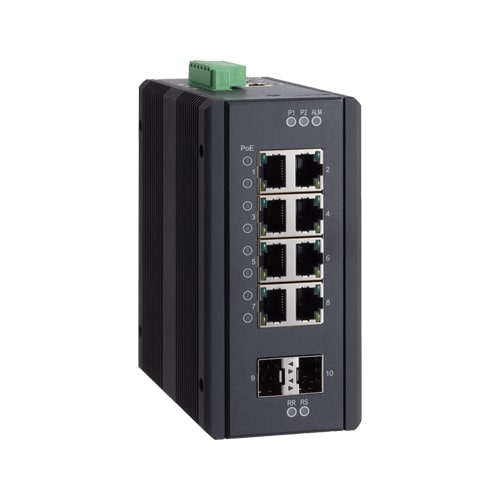

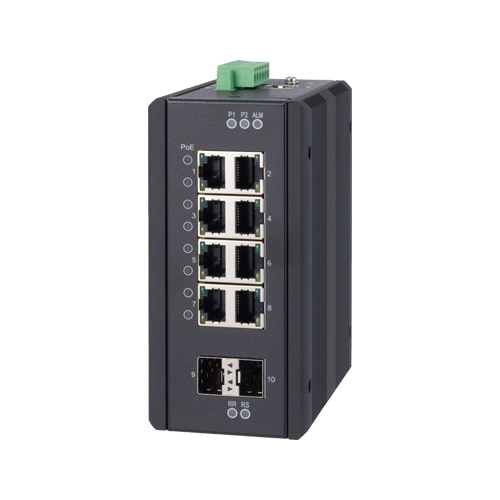

SH-9210AT-POE

  • Rich Managed Functions for Monitoring, Control, and Reliability
  • Supports ambient temperatures from -35°C to +70°C
  • PoE power supply function based on IEEE802.3af, IEEE802.3at
  • Eight of 1000BASE-T ports are equipped
  • Two SFP slots
  • Features dual power support, and capable of operating in a wide-ranged power inputs

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: SH-9210AT-POE Categories: , Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

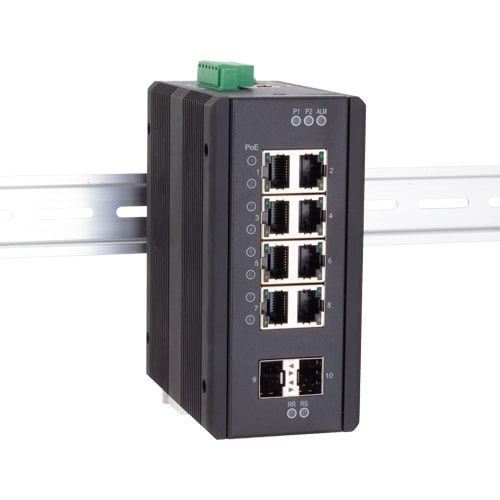

    This product is an industrial managed switching hub equipped with two SFP slot ports and eight gigabit ports that support PoE power supply.Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -35 and + 70°C. Various fixing brackets are available for installations on walls and 35 mm DIN rails. There are two supplies of power. You can use Category 5 or higher LAN cables to supply power from up to seven ports to devices that conform to IEEE 802.3af/at. Carefully read this Reference Manual to connect the product with devices and establish the system.

    • Rich Managed Functions for Monitoring, Control, and Reliability
      • Rich functions such as VLAN, QoS, RSTP, and SNMP are provided for monitoring, control, and network reliability.
    • Supports ambient temperatures from -35°C to +70°C
      • The use of a metal casing with excellent heat dissipation achieves a wide range of temperature (-35 to +70°C) specifications, providing superior environmental resistance and durability, and allowing dependable use in harsh industrial environments.
    • PoE power supply function based on IEEE802.3af, IEEE802.3at
      • Power can be supplied to PoE devices that conform to IEEE802.3af, IEEE802.3at. Up to 30W per port and up to 180W for all ports can be powered.
    • Eight of 1000BASE-T ports are equipped
      • The product has eight ports which conform to IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T).
    • Two SFP slots
      • Two SFP slots and an SFP module can be installed to support 100/1000 Base SFPs.
    • Features dual power support, and capable of operating in a wide-ranged power inputs

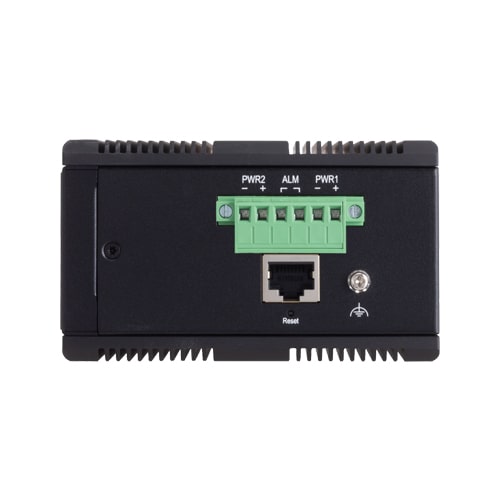

      • The product is capable of operating in a wide range of DC power between 12 and 58VDC *1. Moreover, dual power supports the product to continue to work even if one of the power supplies fails. Failures of the power supply can be seen with the LED on the front panel or the failure detection relay circuit.
        *1 The SH-9210A-POE is 47~58VDC.

    Specifications

    Specifications
    HUB and PoE Injector
    HUB Function 10M/100M/1000M switch
    Number of Ports x8 (10T/100TX/1000T)
    Number of sfp Ports 2
    PoE Function IEEE802.3at standard; IEEE802.3af standard

    Ordering Informations

    Ordering Information
    Model Description Certification
    SH-9210AT-POE Industrial Managed Gigabit PoE Ethernet Switching HUB / 10Ports
    • CE marking
    • FCC compliant
    • VCCI
    SFPモジュール
    Item Item Name
    SH-SFP-1G-LXD 1000BASE-LX SFP module (10 km, SMF)
    SH-SFP-1G-SXD 1000BASE-SX SFP module (550 m, MMF)
