SH-9005F_img1SH-9005F_img1

SH-9005F

  • Five of 1000BASE-T ports are equipped
  • Capable of operating in a wide-ranged power inputs, and features dual power support
  • Adaptable to a wide range of temperature between -20°C and 60°C(-4°F and 140°F)
  • DIN rail mounting or Wall installation

Data Sheet PDF

SKU: SH-9005F Categories: , Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a industrial switching HUB with 5 ports for IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) compliant. In addition, the Auto MDI/MDI-X features automatic negotiation. An ideal product for the place where quietness is required as it contains no fan. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -20°C and 60°C( -4°F and 140°F). There are two supplies of power, and function that prevents power from connecting in reverse. Please read this manual carefully so that you can build a system by connecting the Switching Hub Unit to external devices.

  • Five of 1000BASE-T ports are equipped
    • The product has five ports which conform to IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T). Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.
  • Capable of operating in a wide-ranged power inputs, and features dual power support

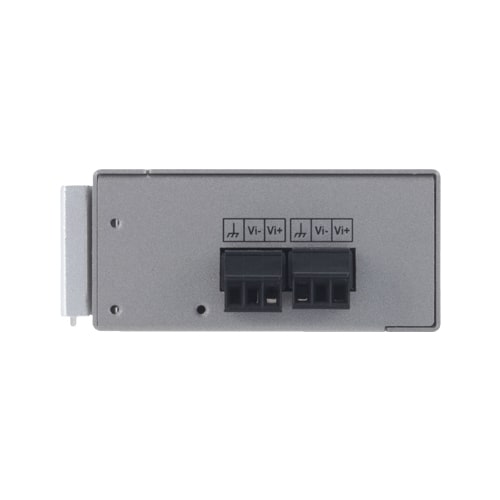

    • The product is capable of operating in a wide range of DC power between 8 and 35VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails.
  • Adaptable to a wide range of temperature between -20°C and 60°C(-4°F and 140°F)
    • The use of a metal casing with excellent heat dissipation achieves a wide range of temperature (-20°C to 60°C, -4°F to 140°F) specifications, providing superior environmental resistance and durability, and allowing dependable use in harsh industrial environments.
  • DIN rail mounting or Wall installation

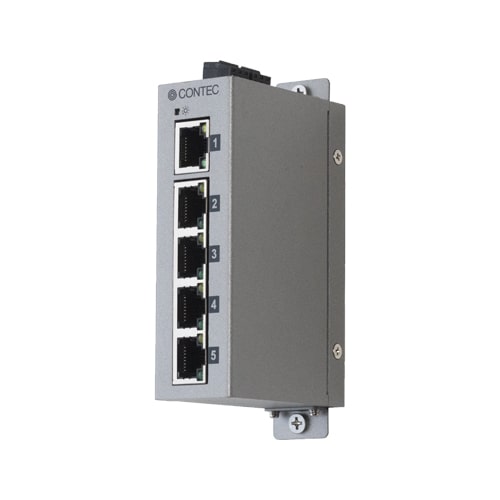

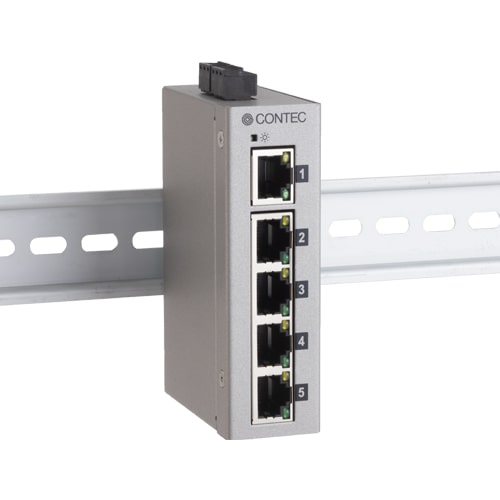

    • With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.

Specifications

Specifications
HUB and PoE Injector
HUB Function 10M/100M/1000M switch
Number of Ports x5 (10T/100TX/1000T)
Number of sfp Ports
PoE Function

Ordering Informations

Ordering Information
Model Description Certification
SH-9005F Gigabit Industrial Unmanaged Switching HUB / 5Ports
  • CE marking
  • FCC compliant
  • UL
  • VCCI
Power Supply / AC Adapter
Item Item Name
POA201-10-2 AC adaptor (12V,1A)
