SH-8008F-2_img1SH-8008F-2_img1

SH-8008F-2

  • With its compact size, it corresponds to 100BASE-TX in eight all port
  • 2-way power connector and reverse wiring protection within
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Installation on DIN rail is possible
  • Compatible with 8 to 35VDC wide range power

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: SH-8008F-2 Categories: , Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

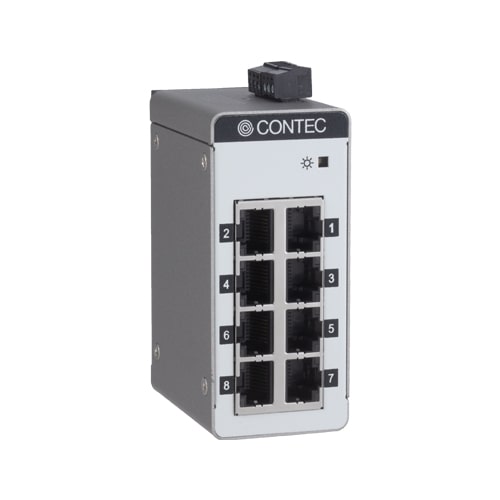

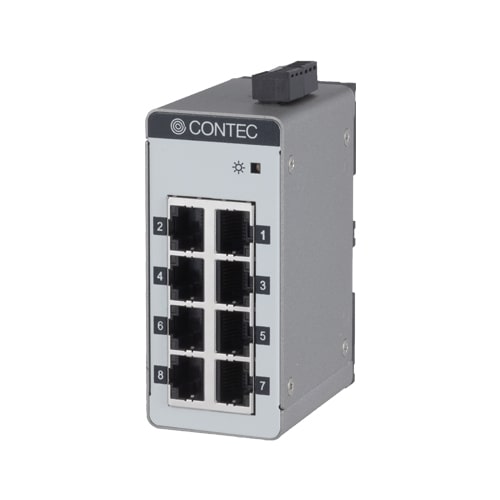

    This product is an 100Mbit compact-sized industrial switching HUB (8 ports). This hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -20°C and +60°C. This product has been arranged so that the DIN rail position is in the center, compared to the previous model. As a result, it can be installed in a variety of control panel.

    • With its compact size, it corresponds to 100BASE-TX in eight all port
      • This product contains eight ports for IEEE802.3u (100BASE-TX)/IEEE802.3(10BASE-T) in the compact size(40(W) x 70(D) x 90(H) mm).

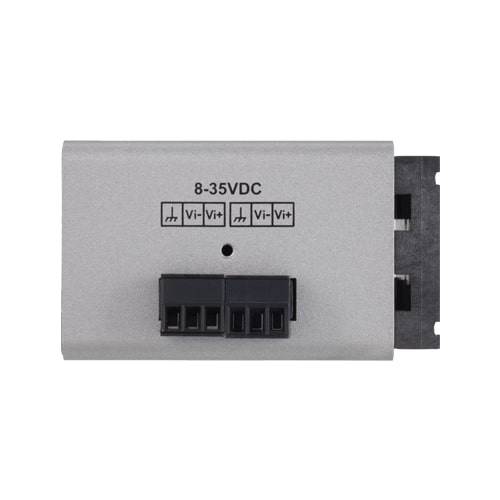

    • 2-way power connector and reverse wiring protection within
      • Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

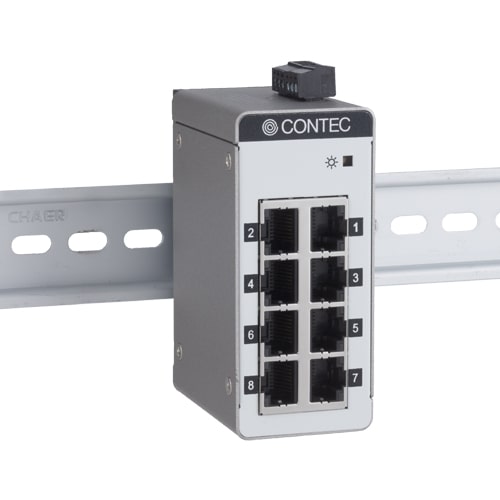

    • Installation on DIN rail is possible
      • As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well.
    • Compatible with 8 to 35VDC wide range power
      • It is compatible with 8 – 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.

    Specifications

    Specifications
    HUB and PoE Injector
    HUB Function 10M/100M switch
    Number of Ports x8 (10T/100TX)
    Number of sfp Ports
    PoE Function –

    Ordering Informations

    Ordering Information
    Model Description Certification
    SH-8008F-2 10/100M Unmanaged Industrial Switching HUB / 8-port
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    POA201-10-2 AC adaptor (12V,1A)
