SH-8008F_img1SH-8008F_img1

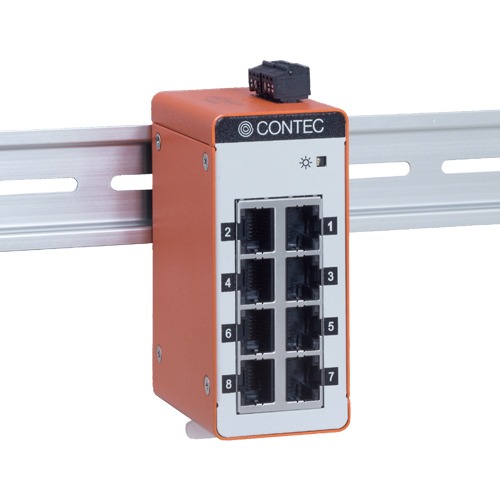

SH-8008F

  • With its compact size, it corresponds to 100BASE-TX in eight all ports.
  • 2-way power connector and reverse wiring protection within
  • Adaptable to a wide range of temperature between -20 and +60°C
  • For Auto MDI/MDI-X feature, auto-negotiation feature
  • Installation on DIN rail is possible
  • Compatible with 8 – 35VDC wide range power

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: SH-8008F Categories: , Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a compact-sized industrial switching HUB [40(W) x 60(D) x 90(H)mm] with 8 ports for IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) compliant. In addition, the Auto MDI/MDI-X features automatic negotiation. An ideal product for the place where quietness is required as it contains no fan. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -20 and + 60°C. There are two supplies of power, and function that prevents power from connecting in reverse.

    • With its compact size, it corresponds to 100BASE-TX in eight all ports.
      • This product contains eight ports for IEEE802.3u (100BASE-TX)/ IEEE802.3(10BASE-T) in the compact size(40(W) x 60(D) x 90(H) mm).

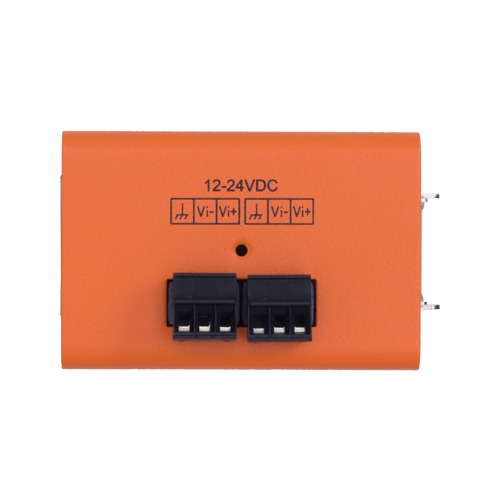

    • 2-way power connector and reverse wiring protection within
      • The product supports 2-way power supply. Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • For Auto MDI/MDI-X feature, auto-negotiation feature
      • The Auto MDI/MDI-X feature automatically determines straight or crossover cable, avoiding wiring trouble due to wiring mistake. Moreover, auto-recognition function of communication rates (10/100Mbps) and communication methods (half/full duplex) by the auto-negotiation feature.
    • Installation on DIN rail is possible
      • As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well.
    • Compatible with 8 – 35VDC wide range power
      • It is compatible with 8 – 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.

    Specifications

    Specifications
    HUB and PoE Injector
    HUB Function 10M/100M switch
    Number of Ports x8 (10T/100TX)
    Number of sfp Ports
    PoE Function –

    Ordering Informations

    Ordering Information
    Model Description Certification
    SH-8008F 10/100M Unmanaged Industrial Switching HUB / 8Ports
    • CE marking
    • FCC compliant
    • VCCI
    • UL
    Options
    Power Supply / AC Adapter
    Item Item Name
    POA201-10-2 AC adaptor (12V,1A)
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
