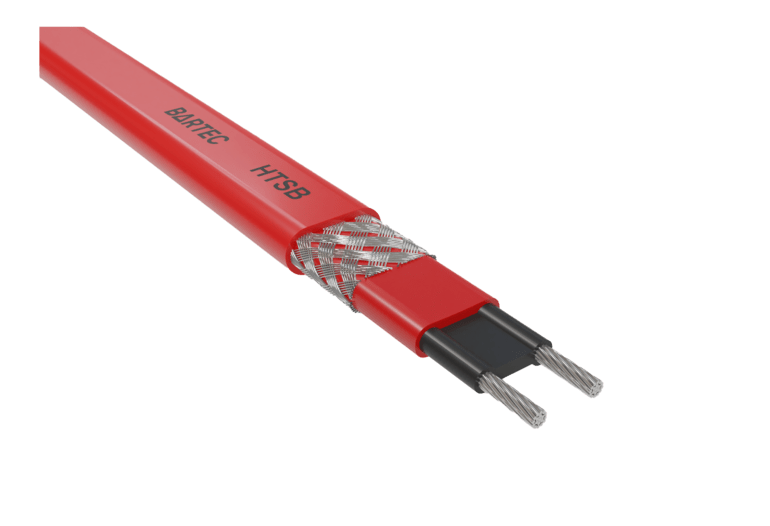

The self-regulating heating cable HTSB is suitable for frost protection and temperature maintenance on pipes and vessels at high process temperatures in industry and hazardous areas. It can be used where steam cleaning is required.The power output of the HTSB varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.With the high fluoropolymer protective jacket, the heating cable is resistant to oil, greases and most chemicals.
ATEX:II 2G Ex 60079-30-1 IIC T3, T2 GbII 2D Ex 60079-30-1 IIIC T200°C, T300°C Db
IECEx:Ex 60079-30-1 IIC T3, T2 GbEx 60079-30-1 IIIC T200°C, T300°C Db
Max. continuous operating temperature, energized +250°CMax. continuous exposure temperature, de-energized +250°C
| Nominal voltage | AC 208 V to 277 V AC 110 to 120 V |
|---|---|
| Max. continuous operating temperature, energized | +250 °C |
| Max. continuous exposure temperature, de-energized | +250 °C |
| Min. installation temperature | -40 °C |
| Min. start-up temperature | -40 °C |
| Temperature class | T3: 5HTSB2, 10HTSB2, 15HTSB2, 20HTSB2 T2: 25HTSB2, 30HTSB2 |
| Max. braid resistance | 18,2 Ohm/km |
| Dimensions with braiding and jacket | 12.1 x 5.4 mm |
| Min. bending radius | 35 mm |
