Medium-SD55_LYNX_1Medium-SD55_LYNX_1

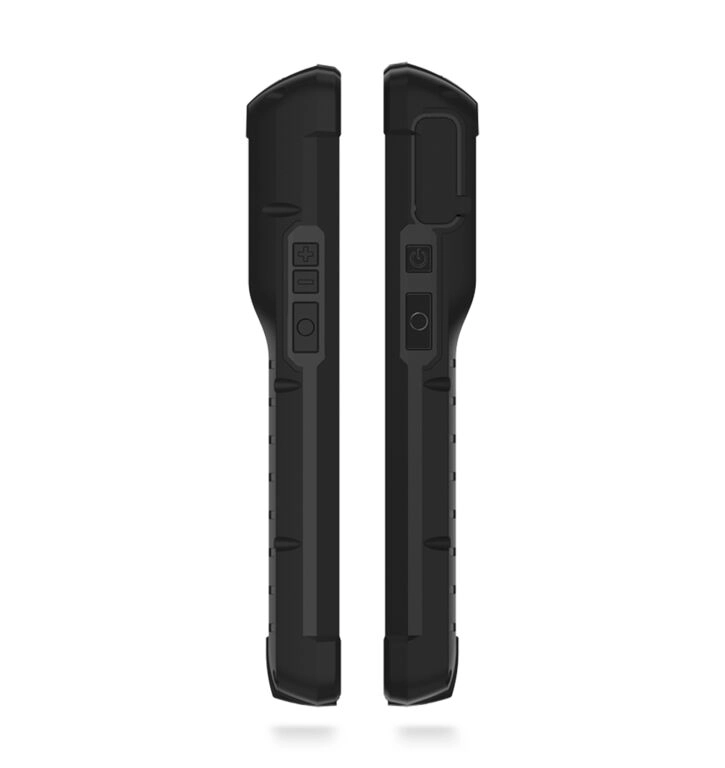

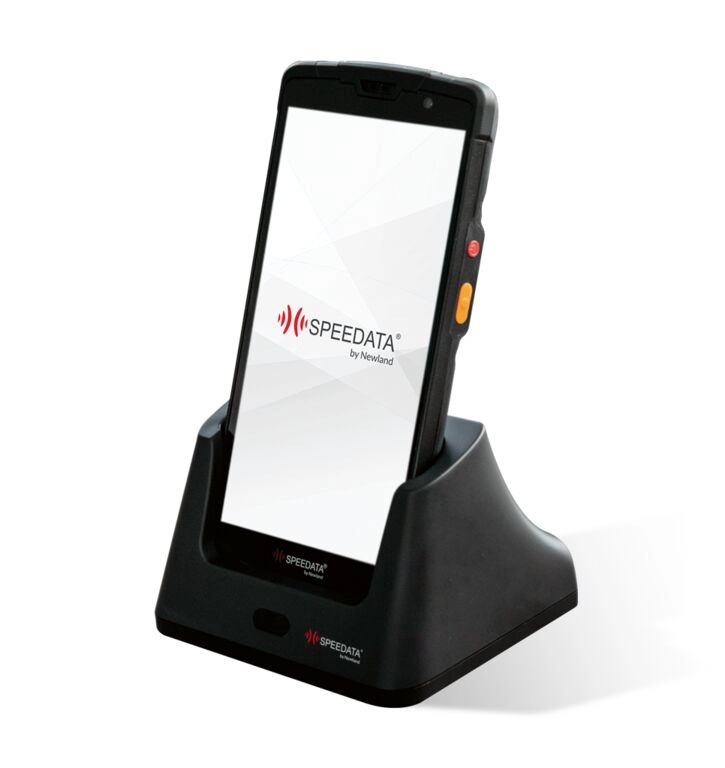

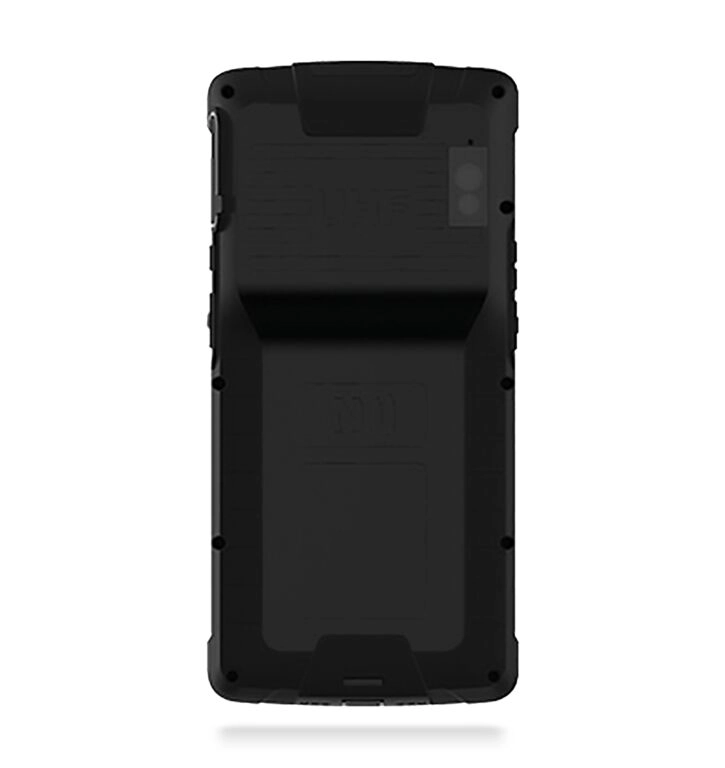

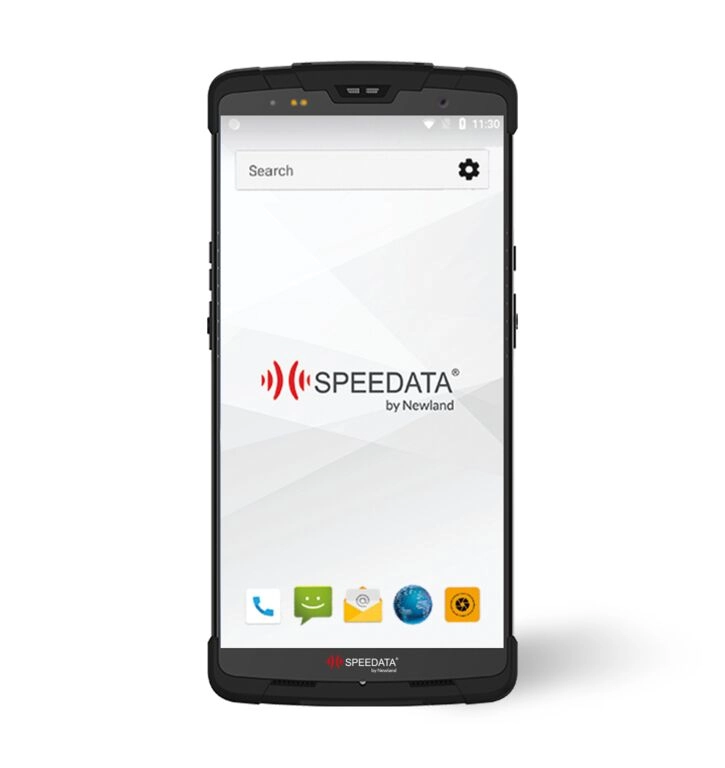

SD55 Lynx UHF

With its capacitive touchscreen and Android 8.1 operating system, the SD55 Lynx UHF is everything you’ve asked for in a mobile computer, and more. Equipped with a UHF Antenna, this device can easily read RFID tags hard-to-reach areas of your stockroom.

Data Sheet

Request Quote


    Email Verification Code (required)



    Category:
    Description
    Design, simple operation and a rugged casing all fit together in this mobile computer, armed with UHF.

    The SD55 Lynx MD is part of the SD55 Android Mobile Computer Series. With optimized solutions for Logistical and Healthcare applications, the SD55 Series consists of different models that slot into your industry scanning needs.

    Features

    Supports. All major 1D and 2D barcode symbologies.

    Software. Built on Android 8.1

    Display. 5.5 inch (1440 x 720) 5 point capacitive touch screen.

    Processor. Octa-Core 2.0 GHz CPU.

    Offers. Wi-Fi 802.11 a/b/g/n (2.4GHz & 5GHz), Bluetooth 5.0, camera, NFC, GSM, WCDMA.

    TECHNICAL SPECIFICATION

    Type SD55UHF-C
    Operating System

    Android 8.1
    Size 150(h) x 72.5(w) x 16.5(d) mm
    Weight 290g (with battery)
    PTT ready Yes (3rd party software required)
    LWP ready No
    Bluetooth® 4.1 BLE
    Frequencies

    FDD LTE B1/B3/B5/B7/B8

    TDD LTE B38/B39/B40/B4

    WCDMA B1/B2/B5/B8

    GSM B2/B3/B5/B8

    CDMA1x/CDMA2000 BC0/BC1
    Wi-Fi® IEEE 802.11 a/b/g/n/ac 2.4G 5G dual frequency
    RFID ISO14443A/B, ISO15693, NFC reading distance: 0~5cm; UHF: ISO18000-6C, Euro frequency (865MHz – 867MHz), Antenna: 1.5dBi ceramic antenna, Power: working voltage 3.6-5V,RF output 5dBm to 30dBm(1W), 1dbm adjustable, Standby power consumption: about 0.25W, maximum 4W(typical 3.5W), Identification range: indoor >5m, outdoor open environment >3m, Group read rate: >30 tags per second, Inventory speed: >30 tags/sec
    Location GPS+BD+GLONASS
    Display 5.5″, IPS highlight screen
    Processor Octa-Core 2.0 GHz
    Memory 4GB RAM | 64GB internal memory
    Micro-SD Yes
    Camera 13M Pixels AF Rear camera; High brightness LED flash, 5M Pixels FF Front camera
    Battery 5800mAh
    Operation IP65 dust-/waterproof | 1.5m drop to concrete | usable from -20 °C to +55 °C
