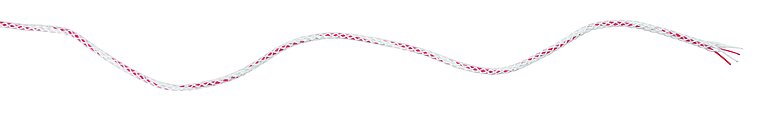

The SCR sensor cable is used for detecting electrically conductive liquids such as water.This sensor cable can detect the location of the leak precisely.The SCR is a 4-core flexible round cable with protective braiding.
N/A
Temperature resistance -50 °C to +180 °C
Structure |
Sensors: 2 x 0.25 mm², protected by partially permeable PTFE insulation Colour: red, white Rated resistance: 6 Ohm/m Return conductor: 2 x 0.25 mm² with FEP Protective braiding made of FEP |
Dimensions |
Cable diameter: 5 mm Minimum bending radius: 6 x cable diameter |
