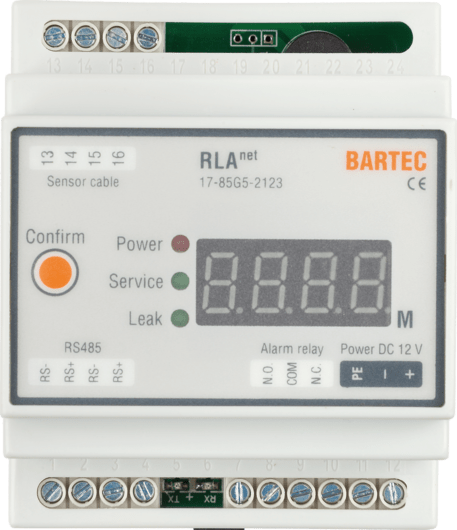

The monitoring unit RLAnetoperating with the sensor cable SCR and/or the point sensor PS as well as the optical point sensor PSO/PSO+. The system detects minor liquid leakages fast and reliable. An optical and acoustic signal arises. Simultaneously the potential-free contact switches. This can be used for signaling to PLC or to a building control unit. The leakage is being localized exact by 1 meter and get visualized on the 4-digit display. Thus a leakage will be found by a service person quick and true. The max. monitoring length is 500 m. Up to 50 point sensors can be installed.VisualizationThe service-software (for WINDOWS-PC) calls the system status via RS485 in real-time. The data is available in Modbus RTU protocol. Up to 250 Modbus addresses can be handled. The typical application parametrization will also be managed by using this service-software.
Protection class |
IP 20 |
Dimensions |
70 mm x 86 mm x 53 mm (W x H x D) |
Material |
Housing material: Thermoplastic |
Measuring principle |
Conductive (conductive liquids > 30 μS/cm) Accuracy: ±1 % |
Installation |
Clip-on enclosure for mounting rail TS 35 |
Storage temperature |
-40 °C to +60 °C |
Humidity |
5 % to 95 % air humidity (non-condensating) |
Display |
optical: – Power LED red (relay de-energized) – Leak LED green (relay energized) – Service LED green (relay energized) acoustic: – Piezoelectric buzzer quit by pressing button on front panel |
Memory |
Alarm-/Break storage, last 32 events |
Voltage |
DC 12 V to 24 V ±10 % |
Power |
3 W |
Connection |
Inputs: – Sensor via 4-wire cable – Sensor cable length: max. 500 m – Point sensors: max. 50 pieces – Sensitivity: adjustable Outputs: – Collective message alarmrelay, 1 floating change-over contact – AC-12: 0.5 A, 125 V – DC-13: 1 A, 24 V – RS485, Modbus RTU, for process visualization and parametrization |
