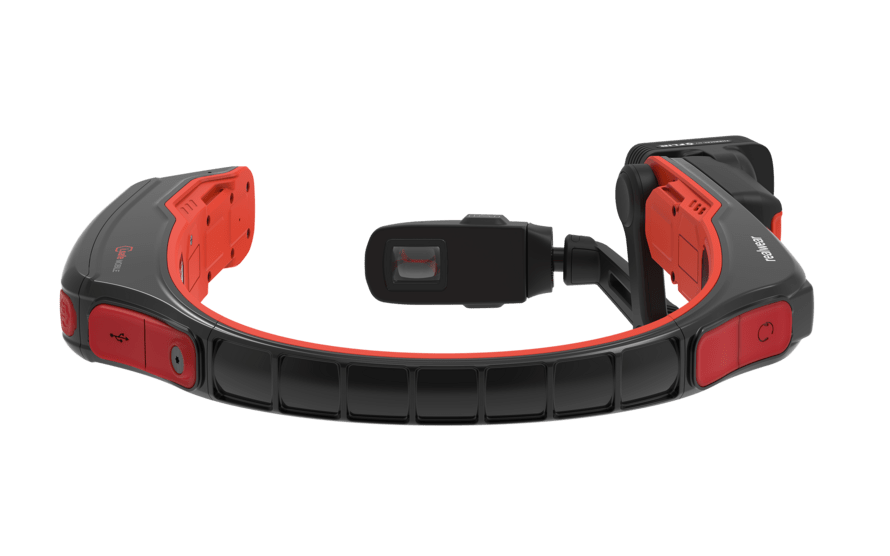

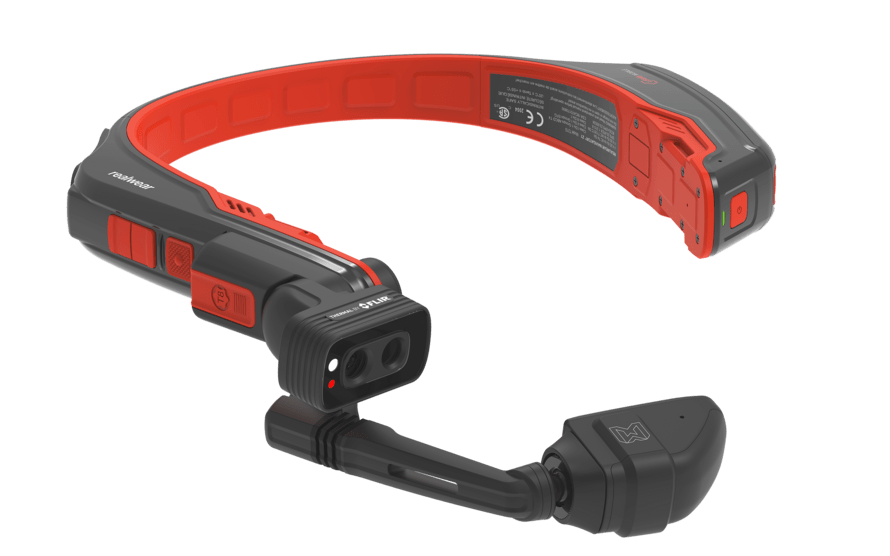

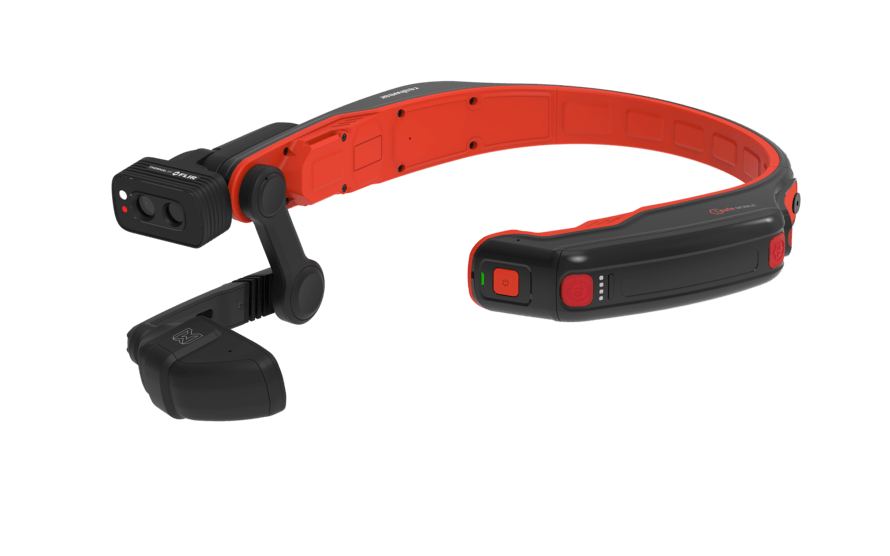

The world’s most advanced intrinsically safe head-mounted wearable with intuitive voice control for completely hands-free operation during remote training and support, field service management tasks and site inspections, suitable for noisy environments of up to 100 dBA. The Android™-based smart glasses are equipped with a powerful chipset with AI engine, a high-resolution display, a 48 MP visual camera and a Teledyne FLIR Thermal Camera Module. The Thermal Camera Module is compatible with the FLIR Thermal Suite for viewing radiometric photos, with temperature readings built-in to the image.
| Dimensions | Weight: 383 g |
|---|---|
| Sampling rate | 8,7 Hz |
| Anschlussmöglichkeiten (generierung) | 3,5 mm Kophöreranschluss USB Typ C |
| Connection options (headphones, USB, accessories, …) | USB Typ C |
| Battery | 2550 mAh, 3,7 V replaceable |
| Operating system | Android™ 12 (AOSP) + WearHF™ hands-free interface |
| Camera | 48 MP AF front |
| Processor | Qualcomm® QCS6490 |
| Types of protection | IP66 MIL-STD 810H Usable from -20 °C to +55 °C |
| Sensor type | FLIR Lepton® 3.5 |
| Field of view (DFOV) ° | 71 |
| Field of view (HFOV) ° | 57 |
| Memory | 8 GB RAM 128 GB internal memory |
| Spectral range | 8 – 14 |
| Temperature detection from (°C) | -10 |
| Temperature detection up to (°C) | 400 |
| Temperature accuracy | ±5 °C oder 5 % (typisch) ±10 °C oder 10 % (typisch) |
| Thermal resolution | 160 x 120 |
| Thermal Sensitivity | <50 mK |
| Connectivity | Bluetooth® 5.2 GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS |
| Video (pixel & bitrate) | 1080 p @ 60 fps |
 ATEX |
Europe | I M1 Ex ia I Ma II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T200°C Db |
 IECEx |
International | Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T200°C Db |
 UKEX |
United Kingdom | I M1 Ex ia I Ma II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T200°C Db |
 QPS |
Northern America | Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T200 °C Class III |
 IA |
South Africa | Ex ib IIC T4 Gb Ex ib IIIC T200°C Db |
 INMETRO |
Brasil | Ex ib IIC T4 Gb Ex ib IIIC T200°C Db |
 PCEC |
China | Ex ib II C T4 Gb Ex ib IIIC T200°C Db |
 TIIS |
Japan | Ex ib IIC T4 Gb Ex ib IIIC T200°C Db |
 KCs |
South Korea | Ex ib IIC T4 Gb Ex ib IIC T200°C Db |
 |
