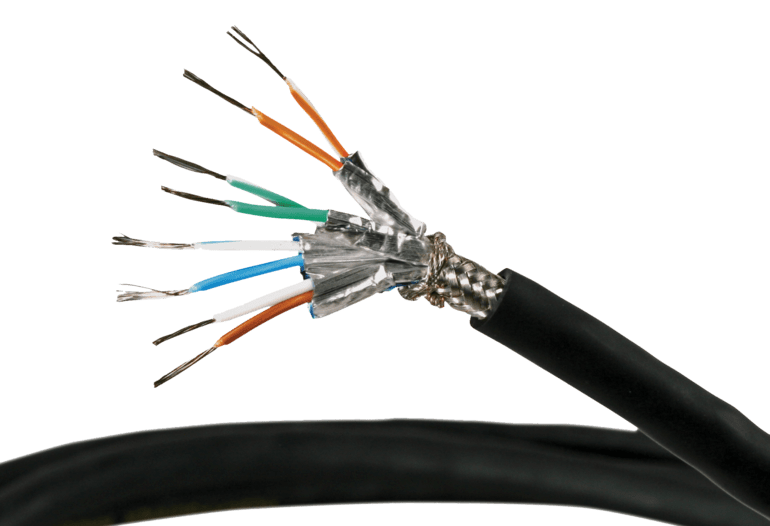

RADOX OFL offshore Cat5e/Cat7 cables

CAT5e or CAT7 for harsh environments
PE foamed cores
SHF2 sheath with extreme oil, mud & chemical resistance
Temperature operation range acc. to IEC60092 -40 to +90°C. Sheath max temperature +130°C
Extremely flexible
Tin plated copper braid + individual alutape on pairs
DNV certified and NEK606 compliant incl. MUD
Flame retardant acc. to IEC 60332
Large stock in Norway – can be sold world wide

Category: Cables and Wires

Description

Technical Data

Data Sheets

Finally, better offshore Cat5/Cat7 cables! Both cables can enter any Ex d enclosure without potting – please ask for documentation.

HUBER+SUHNER RADOX OFL CAT5e

4X(2X24AWG) SHF2 MUD IEC 60332- 1- 2 85188410

[batch no] [date of manufacture] [prod- place]

-40°C to +130°C

Technical Data

Structure	Cat5e – 4x(2x24AWG). Cat7 – 4x(2x23AWG). Braid coverage +90% Standard sheath color black
