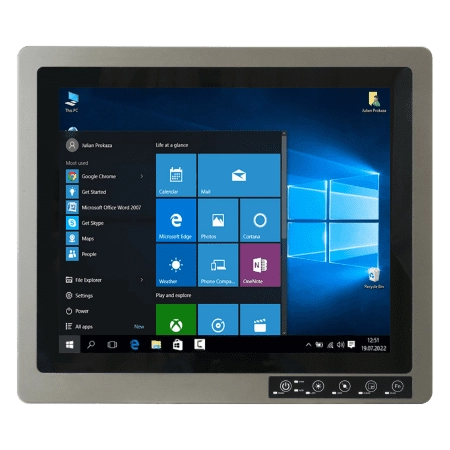

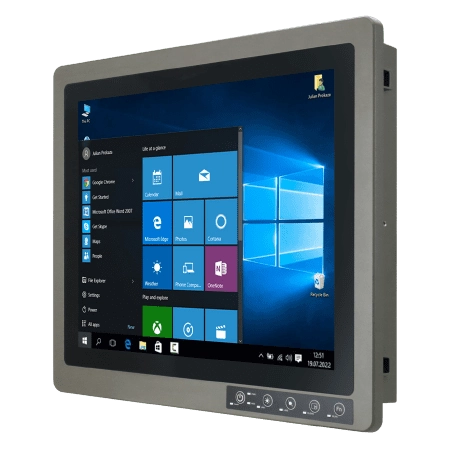

Winmate R19IHAT-66EX-T – 19″ ATEX Panel PC

Fully rugged 19″ Aluminium, PC.  ATEX Zone 2 & Class 1, Division 2 certified for hazardous area applications.

Data Sheet

Request Quote


    Email Verification Code (required)



    Category:
    Description
    Additional Features

    Winmate’s ATEX Zone 2 and Class 1 Division 2 (C1D2) certified panel computers and touch screen operator interfaces are the perfect solution for hazardous environments in the refining and petrochemical industries. With a focus on safety and productivity, Winmate offers computing solutions that have been designed to improve the efficiency of these industries. With ATEX panel PC and rugged mobile solutions, Winmate has everything you need to succeed in these challenging environments.

    KEY FEATURES
    • 19″ 1000 nits LCD ATEX Panel PC
    • Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications
    • Intel® 11th Tiger Lake Core™ i5-1135G7 Processor
    • Fanless design with streamlined enclosure for highly efficient heat dissipation
    • Intelligent Heater for working in extreme cold environments -40°C

    FEATURES

    • Class 1, Division 2 & ATEX Zone 2 certified for hazardous area applications
    • High performance / low power Intel Haswell Core i7-4650U
    • 19-inch 600 nits LCD panel / Optional 1000 nits sunlight readable panel
    • Fanless, streamlined enclosure for highly efficient heat dissipation
    • Touch screen control button to enable/disable touch screen interface
    • Front control membrane keys Lockable by software
    • Intelligent Heater for working in extreme cold environments -40°C
    • Optional WLAN
    • Optional Optical Bonding

    DISPLAY

    Size 19″
    Active Display Area 376.32(H) x 301.06(V)
    Pixel Pitch 0.294(H) x 0.294(V)
    Resolution 1280 x 1024
    Contrast Ratio 1000:1
    Display Color 16.7M
    Panel Brightness 600 nits (typ.), Optional 1000 nits
    Viewing Angle -85~85(H);-80~80(V)
    Recommend Resolution 1280 x 1024
    Touch Sensor Type Projected Capacitive
    Resolution 1280 x 1024

    SYSTEM

    Processor Intel Core i7-4650U max. 3.3GHz
    Chipset Intel® HD graphics 5000
    Memory 1 x DDR3L SO-DIMM 1600 MHz, 4GB default. Max to 8GB
    BIOS AMI BIOS
    Storage mSATA SSD 128GB.Max to 512GB
    OS Windows Embedded Standard 7(optional)
    Windows 7 PRO for Embedded System (optional)
    Windows Embedded 8 Standard (optional)
    Windows Embedded 8.1 Industrial(optional)
    Windows 10 IoT Enterprise
    Net Weight (kg) 13.5 Kg
    Gross Weight(kg) 13 Kg

    I/O CONNECTORS

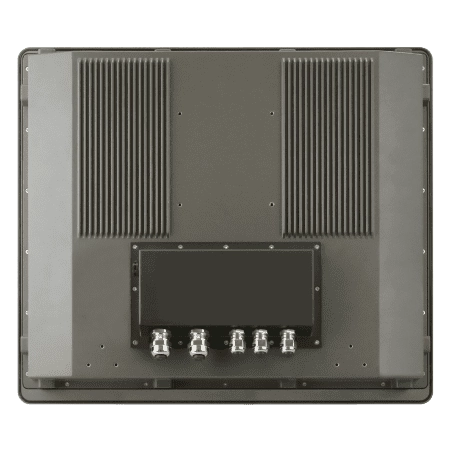

    Back Panel I/O Port
    • 2 x Ex-Type Brass Cable Gland M16 (Cable range 7.5~10.2mm)
    • 3 x Ex-Type Brass Cable Gland M12 (Cable range 5.4~8mm)
    Internal I/O pin-header
    • 1 x USB 2.0 terminal block
    • 1 x LAN terminal block
    • 1 x RS232/422/485 terminal block
    • 1 x 9~36V DC input terminal block

    MECHANICAL & ENVIRONMENT

    Operating Temperature -40˚C to +70˚C (with intelligent heater)
    Operating Humidity 5 to 95% (non-condensing)
    Certifications
    • Ordinary Location Safety:
      UL 60950-1
      CSA C22.2 No. 60950-1-07
      EN 60950-1
    • Hazardous Location Safety:
      CID2 No. cCSAus 261821
      Class I, Div.2, Groups A,B,C,D T4
      Meet Standards:
      ANSI/ISA-12.12.01-2013
      CSA Std. C22.2 No. 213-M1987
      -40oC to +70oC
    • ATEX II 3G Ex nA ic IIC T4 Gc
      No. Sira 16ATEX4204X
      Meet Standards:
      EN 60079-0, EN 60079-11, EN 60079-15
      -40oC to +70oC
    • IECEx Ex nA ic llC T4 Gc
      No. IECEx SIR 16.0070X
      Meet Standards:
      IEC 60079-0, IEC 60079-11, IEC 60079-15
      -40oC to +70oC
    • CE, FCC
    • Shock: MIL-STD-810G Method 516.6
    • Drop: MIL-STD-810G Method 516.6
    • Vibration: MIL-STD-810G Method 514.6
    Cooling System Fanless design
    Dimension (W x H x D) 474 x 410 x 111 mm
    IP Proof
    • IP54 Meet Standard IEC60079 (for Hazardous location)

    POWER

    Power Input 9~36V DC input (isolation)

    ACCESSORIES

    Standard
    Optional
    24V 150W AC to DC Adapter
    Power cord
    Open wired power cable for M12 cable Gland
    Open wired USB cable for M12 cable Gland
    Open wired LAN/COM cable for M16 cable Gland
    VESA Mounting Screws
    Mounting Clips & Screws
    3 Pins Terminal Block For Power
    8 Pins Terminal Block For LAN
    4 Pins Terminal Block For USB
    10 Pins Terminal Block For COM    		 SMA male to female extension cable for M12 cable
    Gland (Optional)

    Additional Features

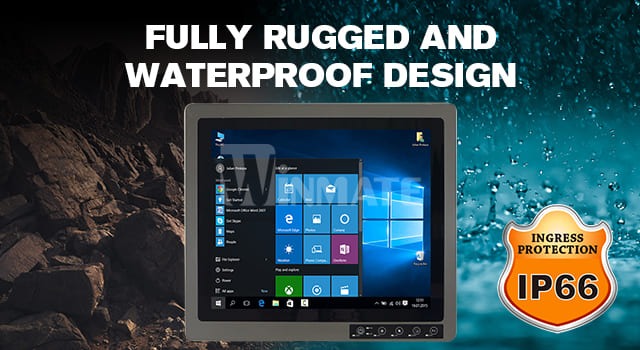

    Fully Rugged and Waterproof Design

    The R19IHAT-66EX-T ATEX panel PC offers all-around IP66 protection against dust and water, in compliance with the MIL-STD-810G standard. Suitable for applications in potentially explosive and harsh environments. With the EX-type
    brass cable glands M16/ M12 ports for maximum protection in wet and dusty operation conditions.

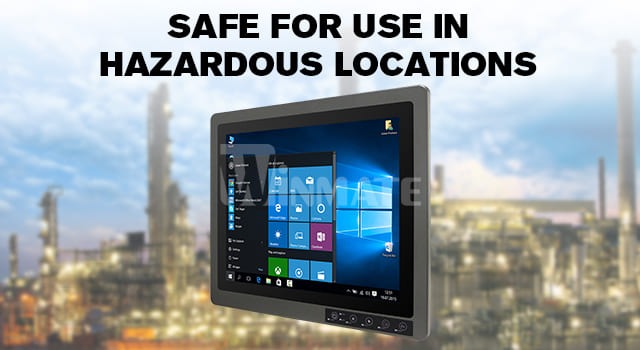

    Safe for Use in Hazardous Locations

    The R19IHAT-66EX-T complies with ATEX Zone 2 certification for remote data collection, process visualization, and control. Suitable for deployment in hazardous zones, such as explosion-prone areas, where explosion-proof safety
    requirements are the priority.

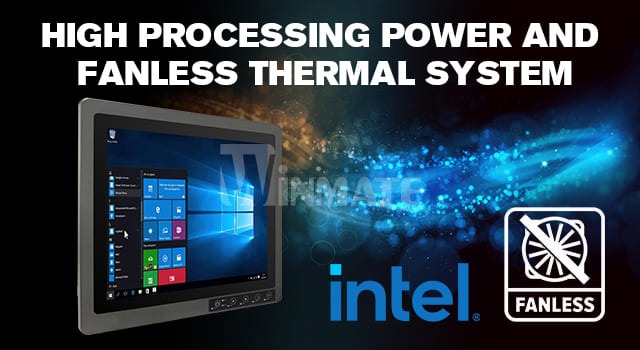

    High Processing Power and Fanless Thermal System

    Intel® CPU powers Winmate Explosion-proof Panel PC, and a fanless thermal design with a smooth enclosure offers highly efficient heat dissipation and high-performance computing for most demanding tasks.

    Suitable for Operations in Extreme Working Conditions

    R19IHAT-66EX-T Explosion-proof panel PC comes with the built-in intelligent heater and optional high brightness, operable at -40°C to 70°C and suitable for outdoor use in rain, sunny, windy, or cold applications.

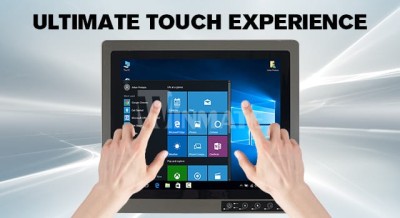

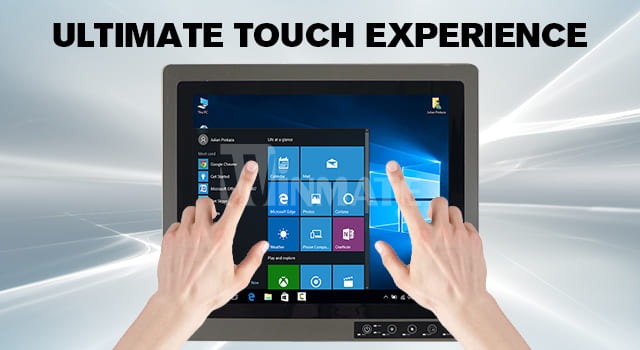

    Ultimate Touch Experience

    The 10.1” screen of M101S-EX features projected capacitive (PCAP) multi-touch for the best user Enhance customer experience and convenience with a PCAP touch that supports a multi-touch screen. Experience the ultimate durability
    in some of the most demanding applications, such as a control panel of a drilling rig.
