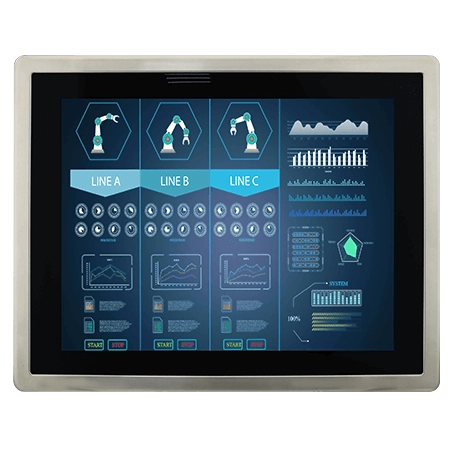

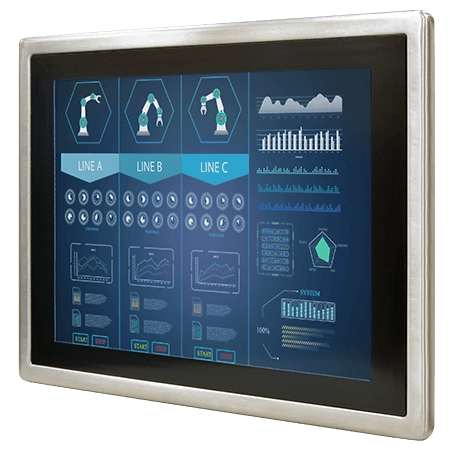

Winmate R15L600-65EX – ATEX Rugged Display

15-inch ATEX Certified Stainless Steel Monitor
A Display that Works in Hazardous Locations and Withstands Harsh Environments

Data Sheet

Category:
Description
Additional Features

A Display that Works in Hazardous Locations and Withstands Harsh Environments
R15L600-65EX is a stainless monitor with a set of features designed to withstand industrial use in
hazardous locations and extreme temperatures while providing high-tech solutions that increase
productivity, improve safety, and reduce operational costs.
The monitor features a 15” flat panel with the option for either explosion-proof ELO 5-wire resistive
touch or Projected Capacitive Multitouch in a 1024 x 768 pixel resolution. It is certified for use in UL
Class 1, Division 2 & ATEX Zone 2 locations. The R15L600-65EX monitor delivers a rugged solution for
harsh environments.

KEY FEATURES
  • Class 1, Division 2 & ATEX Zone 2 application certification rugged touchscreen
  • 15” 1024 x 768, 550 nits (Optional 1000 nits) LCD Panel
  • Explosion-proof 5-wire resistive touch
  • Stainless steel design
  • IP65 Certified, dust-proof and water-resistant
  • Wide temperature range -20˚C to 50˚C

TECHNICAL DESCRIPTION

Model Name R15L600-65EX
Panel Size 15″
Active Display Area (mm) 304.128(H) x 228.096(V)
Pixel Pitch (mm) 0.297 x 0.297
Resolution 1024×768
Brightness 8-550 nits, optional 1000 nits
Contrast Ratio 700:1
Viewing Angle -80~80 (H); -70~70 (V)
Number of Colors 16.2M,8-bits
Optional Touch Screen ELO 5 Wire resistive touch/Projected Capacitive Multitouch

MECHANICAL DESCRIPTION

Weight (kg) 11 kg (24.25 lbs)
Mounting VESA 100 x 100

POWER INFORMATION

Power Consumption 20W (typ.)
Power Input 9-36V DC with isolation protection

DISPLAY SIGNALS

OSD User Control Button: 1 x power, 2 x brightness/volume adjustment, 1 x ESC (Auto), 1 x OK (Menu)
LED Indicators: Power, Status

ENVIRONMENT & CERTIFICATION

Operating Temperature (°C) -20˚ to 50˚C (-4° to 122° F)
Operating Humidity Range 10% to 95% RH, non-condensing
Certification
  • UL60950-1, CSA C22.2 No. 60950-1-07, EN60950-1, IEC60950-1
  • ATEX zone 2 EX II 3 G Ex ic nA IIC T4 Gc
  • UL Class I, Div.2, Groups ABCD T4 ANSI/ISA12.12.01 CAN/CSA C22.2 No. 213-M1987
Storage Temperature (°C) -20° to 60° C (-22° to 140° F)

I/O SPECIFICATION

I/O Connectors Serial Interface: 1 x M12 Type RS232 (For remote control)
VGA: 1 x M21 Type VGA in
USB: 1 x M12 Type USB (For touch)
Optional RS232 :1 x M12 Type(For Touch)
Power Input: 1 x M21 type DC power input connector

PACKING LIST

Accessories DC Power Cable
Power Adapter to IP65 Connector
RS232 Remote Control Cable (M12, rated IP65)
RS232 for Touch Cable (M12, rated IP65. Optional)
USB for Touch Cable (M12, rated IP65)
VGA Cable (M21, rated IP65)
VESA Mounting Screws

ACCESSORIES

Standard
100~240V AC to DC Power Adapter with M12 Connector
Power Cord
M12 Type Power Cable
M12 Type RS232 Male Cable for remote control
M12 Type USB Male Cable for Touch
M12 Type VGA Cable
Manual
VESA screws

Additional Features

Certified for Hazardous Locations

The R15L600-65EX is ATEX Zone 2 certified computers for remote data collection, process visualization, and control. Suitable for the deployment in ATEX Zone, where safety is the priority.

Real-Time Production Monitoring and Control

Take production control to the next level with real-time data monitoring and visualization. The R15L600-65EX is a stainless ATEX display with a set of features designed to withstand industrial use in hazardous locations and extreme temperatures while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.

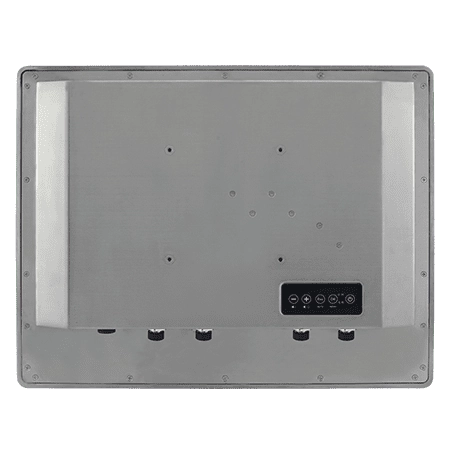

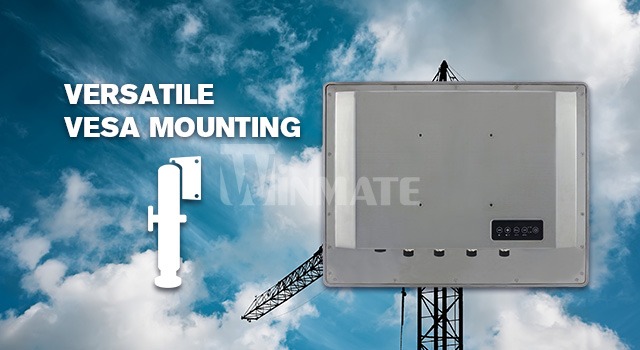

Supports VESA Mount

The R15L600-65EX supports standardized VESA 100 x 100 mm mount for the simple installation of the chassis at the operation location, compatible with swing arm mounting kits. The R15L600-EX ATEX display also supports a rear mount for installation inside a panel or console.

Explosion-Proof Resistive Touchscreen

The R15L600-65EX features explosion-proof ELO 5W resistive touch or ELO 5W projected capacitive PCAP multi-touch. Easy user controls and durability for some of the most demanding applications, such as control panel on a drilling rig.

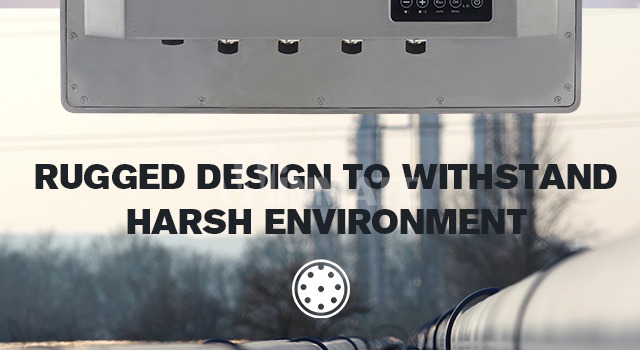

Rugged and Waterproof Design

The R15L600-65EX ATEX display offers full IP65 protection against dust and water, withstands vibration, and compliant with MIL-STD-810F standard requirements. Resists vibration that often occurs on the industrial site and in potentially explosive environments. All the I/O ports are feature waterproof connectors M12 type for maximum protection in wet and dusty operation conditions.
