PT-V15WB-200_img1PT-V15WB-200_img1

PT-V15WB-200

  • Uses a capacitive (PCAP) touch panel for smooth touch operation
  • The compact design features flexibility in installation
  • Both DC input connectors, a jack type and a terminal block type are quipped with the unit for optimized use
  • Fan-less design that reduces maintenance and inspection work
  • VESA standard support
  • “Power failure protection system” features power-off without OS shutdown

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PT-V15WB-200 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

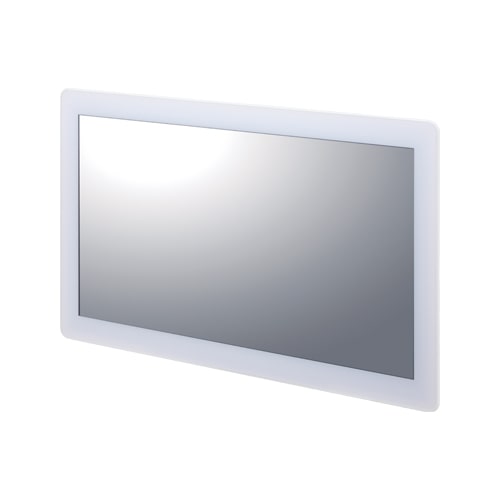

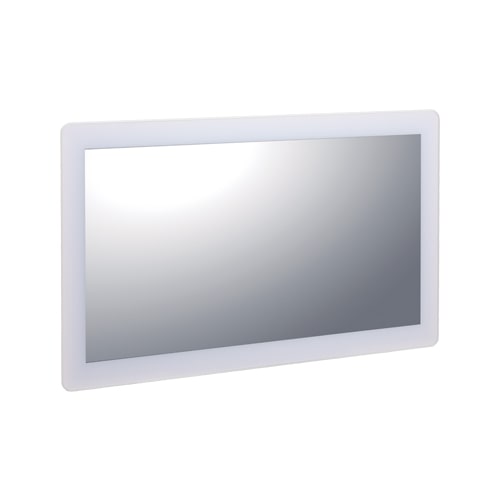

    This product is the “All-in-One” type PC, which has a 15.6-inch size (Full-HD 1920×1080) LCD touch screen integrated.Since only selected interfaces such as 1000BASE-T, USB 3.2 Gen1 (USB3.0), and Audio are provided, the product can be installed in a smaller space comparing to our earlier panel integrated computers.Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, the use of CONTEC-customized BIOS allows support to be provided at the BIOS level. In addition, Contec’s unique functions :”Power Failure Protection”, “CONTEC Fast Boot”, “Secure Boot USB Key”, “Disk Copy”, “Self-diagnosis” are available.

    • Uses a capacitive (PCAP) touch panel for smooth touch operation
      • A capacitive (PCAP) touch panel is used to support up to 10 points of multi-touch, achieving a beautiful screen display and a smooth operation feeling. Has excellent scratch resistance and transparency.
    • The compact design features flexibility in installation

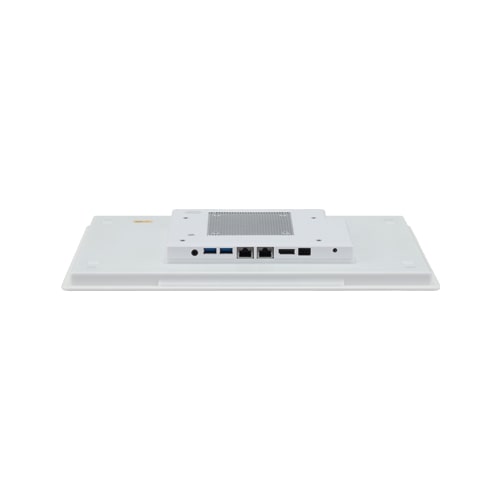

      • With minimum interfaces such as USB3.2 Gen1 (USB3.0) x 3, LAN x 2, Audio x 1, and DisplayPort x 1 the compact size PC, (389.2(W)×245.3(H)×38.7(D), features flexibility in installation.
    • Both DC input connectors, a jack type and a terminal block type are quipped with the unit for optimized use
      • In addition to the DC jack for connecting the optional AC adapter (PWA-60AWD2), terminal block to connect directly with DC power from equipment or machine is also equipped.
    • Fan-less design that reduces maintenance and inspection work
      • This product’s spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.
    • VESA standard support

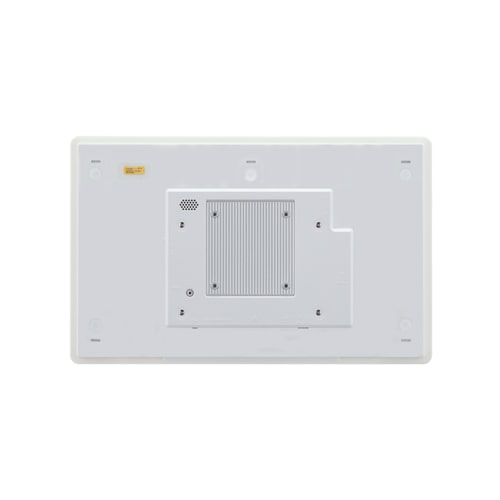

      • Conforming to the VESA standard (75×75), the product can be set on the various types of arms or stands.
    • “Power failure protection system” features power-off without OS shutdown
      • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.

    Specifications

    Specifications
    Mechanical Design
    Mounting VESA 75 x 75
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) Apollo Lake
    Processor Atom x5-E3940
    CPU socket –
    Memory 8GB
    RAS Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Touch Screen
    LCD size 15.6-inch
    LCD resolution 1920 x 1080 (Full HD)
    Touch panel resolution Full-HD (1920×1080)
    Detection method Projected capacitive touch (PCAP)
    Interface
    Video 1x DisplayPort
    LAN 2x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Monaural speaker
    I/O 3x USB3.2 Gen1 (USB3.0); 1x USB2.0
    Memory card 1x M.2 2242
    Expansion Slot
    Expansion bus –
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 40°C (32 to 104°F); * Derating may occur (Refer to Manual)
    Storage temperature -10 to 60°C (14 to 140°F)
    Standards & Certifications BSMI; CCC; CE; FCC Class A; KC; UKCA; UL; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    PT-V15WB-200-J104M05 15.6-inch VESA Mountable PCAP Touch Panel w/o OS Model (Memory 8GB , Storage 64GB)
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    PT-V15WB-200-J104M05W19 15.6-inch VESA Mountable PCAP Touch Panel Windows 10 IoT Enterprise 2019 LTSC 64bit(English / Chinese / Japanese / Korea)Model, (Memory 8GB , Storage 64GB)
    • CCC compliant
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    PWA-60AWD2 AC Adapter(24VDC)
    Other Accessories
    Item Item Name
    IPC-SND-03 Table Stand kit for flat-panel display
