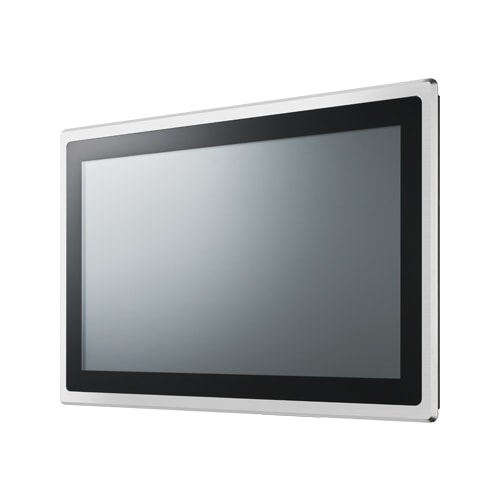

PT-M21WB-2500-G_img1PT-M21WB-2500-G_img1

PT-M21WB-2500-G

  • Compatible with Intel® 9th Gen. Coffee Lake-Refresh Platform
  • IP66 + Stainless Front Panel Design
  • CPU Built-in High-Performance Graphics
  • Adopt Removable Storage
  • Extend Peripherals Freely Rich Interface

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PT-M21WB-2500-G Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a high-performance embedded-type personal computer equipped with the 9th generation Intel® Core™ and Celeron® processor. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.

    • Compatible with Intel® 9th Gen. Coffee Lake-Refresh Platform
      • This product is equipped with the 9th generation Intel® Core™ processor and greatly realizes lower-power consumption while ensuring fine performance of operation tasks and drawing. Adopting embedded-type CPU contributes to a stable supply.Three types of CPU are lined up.
        • Intel® Core™ i7-9700TE
        • Intel® Core™ i5-9500TE
        • Intel® Core™ i3-9100TE
        • Intel® Celeron® G4900T
    • IP66 + Stainless Front Panel Design
      • The product uses stainless as its front bezel material and has IP66 certification to fulfill waterproof and dustproof applications especially in food and automation factory.
    • CPU Built-in High-Performance Graphics
      • Core i7, Core i3, and Celeron Models are corresponded to the Integrated Intel® HD Graphics. Full HD video can be smoothly played.It also supports full HD output of the two-screen with the DVI-I and DisplayPort.
    • Adopt Removable Storage
      • The product adopts front accessible two 2.5-inch SATA storages and support RAID function such as mirroring.
    • Extend Peripherals Freely Rich Interface
      • This product is equipped with a variety of expansion interfaces such as DVI-I, DisplayPort, 1000BASE-T × 2, USB3.2 Gen 2 × 4, USB2.0 × 2, serial (RS-232C) × 3, serial (RS-232C/422A/485) × 1, audio.

    Specifications

    Specifications
    Mechanical Design
    Mounting Panel Mount; VESA 100 x 100; VESA 75 x 75
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) 9th Gen. (Coffee Lake R-S)
    Processor Core i7-9700TE; Core i5-9500TE; Core i3-9100TE; Celeron G4900T
    CPU socket LGA1151
    Memory up to 32GB
    RAS –
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Touch Screen
    LCD size 21.5-inch
    LCD resolution 1920 x 1080 (Full HD)
    Touch panel resolution –
    Detection method Projected capacitive touch (PCAP)
    Interface
    Video 1x DisplayPort; 1x DVI-I
    LAN 2x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Mic-in
    I/O 4x USB3.2 Gen2; 2x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
    Memory card 1x M.2 2242
    Expansion Slot
    Expansion bus 1x M.2 Key M (2242); 1x Mini PCI Express
    Drive bay 2x 2.5-inch bay (SATA)
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 50°C (32 to 122°F) (w/ 0.7m/s airflow w/ standard temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s airflow w/ standard temp. HDD)
    Storage temperature -10 to 60°C (14 to 140°F)
    Standards & Certifications CE; FCC Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    PT-M21WB-2500-G604NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i7-9700TE, DDR4 8G Memory
    • CE marking
    • FCC compliant
    PT-M21WB-2500-G504NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i5-9500TE, DDR4 8G Memory
    • CE marking
    • FCC compliant
    PT-M21WB-2500-G404NA 21.5 inch PCAP Touch Panel PC with Intel® Core™ i3-9100TE, DDR4 8G Memory
    • CE marking
    • FCC compliant
    PT-M21WB-2500-G204NA 21.5 inch PCAP Touch Panel PC with Intel® Celeron® G4900T, DDR4 8G Memory
    • CE marking
    • FCC compliant
    Options
    Memory
    • ８GB
    • 16GB
    • 32GB
    Storage *1*2
    • 1 or 2x 500GB to 2TB 2.5″ HDD
    • 1 or 2x 32GB to 2TB 2.5″ SSD
    • 1x 16GB to 256GB M.2 SSD key M2242
    OS
    • Windows 10 IoT Enterprise 2019 LTSC (64-bit)
    Power Supply
    • Input: 100-240VAC, Output: 24VDC 5A
    Other
    • VESA Mount Fitting (Includes 6 VESA mount screws)

    *1 There are two removable storage bays.*2 If needs to configure the RAID function, selects two same devices for the storage bays.
