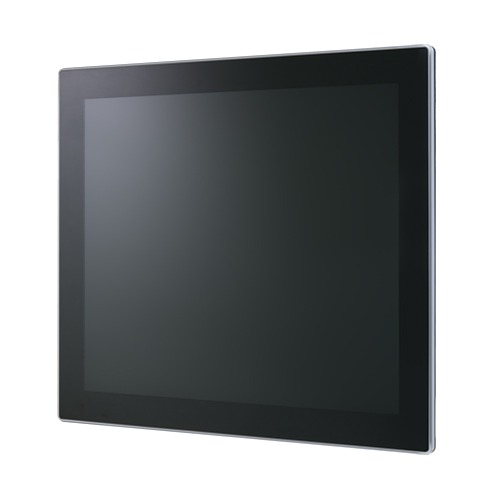

PT-M17SB-2500-G_img1PT-M17SB-2500-G_img1

PT-M17SB-2500-G

  • Compatible with Intel® 9th Gen. Coffee Lake-Refresh Platform
  • IP65 + True flat Front Panel Design
  • CPU Built-in High-Performance Graphics
  • Adopt Removable Storage
  • Extend Peripherals Freely Rich Interface

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PT-M17SB-2500-G Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a high-performance embedded-type personal computer equipped with the 9th generation Intel® Core™ and Celeron® processor. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.Positioned as a versatile solution for industrial automation, manufacturing, healthcare, retail, and more, the PT-M17SB-2500-G Touch Panel Computer is tailored to meet the demands of modern businesses. Its robust features, high-performance capabilities, and flexible mounting options make it an ideal choice for organizations seeking to enhance efficiency and productivity.

    • Compatible with Intel® 9th Gen. Coffee Lake-Refresh Platform
      • This product is equipped with the 9th generation Intel® Core™ processor and greatly realizes lower-power consumption while ensuring fine performance of operation tasks and drawing. Adopting embedded-type CPU contributes to a stable supply.Three types of CPU are lined up.
        • Intel® Core™ i7-9700TE
        • Intel® Core™ i5-9500TE
        • Intel® Core™ i3-9100TE
        • Intel® Celeron® G4900T
    • IP65 + True flat Front Panel Design
      • This product uses aluminum as the front baffle material and has IP65 certification. In addition to meeting waterproof and dustproof applications, the classic thin frame design can be widely used in various payment machines, information inquiry terminal facilities and automated factories.
    • CPU Built-in High-Performance Graphics
      • Core i7, Core i5 ,Core i3, and Celeron Models are corresponded to the Integrated Intel® HD Graphics. Full HD video can be smoothly played.It also supports full HD output of the two-screen with the DVI-I and DisplayPort.
    • Adopt Removable Storage
      • This product uses two 2.5-inch SATA storage trays on the front, supporting RAID functions such as mirroring. Ensure data security and maintenance convenience.

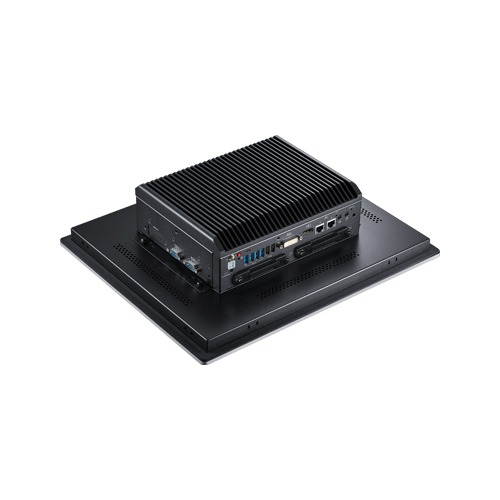

    • Extend Peripherals Freely Rich Interface
      • This product is equipped with a variety of expansion interfaces such as DVI-I, DisplayPort, 1000BASE-T × 2, USB3.2 Gen 2 × 4, USB2.0 × 2, serial (RS-232C) × 3, serial (RS-232C/422A/485) × 1, audio.

    Specifications

    Specifications
    Mechanical Design
    Mounting Panel Mount; VESA 100 x 100; VESA 75 x 75
    Software Support
    Supported OS Windows 11 IoT Enterprise 23H2 64-bit; Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) 9th Gen. (Coffee Lake R-S)
    Processor Core i7-9700TE; Core i5-9500TE; Core i3-9100TE; Celeron G4900T
    CPU socket LGA1151
    Memory up to 32GB
    RAS –
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Touch Screen
    LCD size 17-inch
    LCD resolution 1280 x 1024 (SXGA)
    Touch panel resolution –
    Detection method Projected capacitive touch (PCAP)
    Interface
    Video 1x DisplayPort; 1x DVI-I
    LAN 2x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Mic-in
    I/O 4x USB3.2 Gen2; 2x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
    Memory card –
    Expansion Slot
    Expansion bus 1x M.2 Key M/B (2242); 1x Mini PCI Express
    Drive bay 2x 2.5-inch bay (SATA)
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 ~ 50°C (32 ~ 122°F) (w/ 0.7m/s Air flow w/ standard temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s airflow w/ standard temp. HDD)
    Storage temperature -10 to 60°C (14 to 140°F)
    Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    PT-M17SB-2500-G204 17-inch PCAP Touch Panel PC with Intel Celeron G4900T, 8GB ECC
    • CE marking
    • FCC compliant
    • VCCI
    PT-M17SB-2500-G404 17-inch PCAP Touch Panel PC with Intel Core i3-9100TE, 8GB ECC
    • CE marking
    • FCC compliant
    • VCCI
    PT-M17SB-2500-G504 17-inch PCAP Touch Panel PC with Intel Core i5-9500TE, 8GB ECC
    • CE marking
    • FCC compliant
    • VCCI
    PT-M17SB-2500-G604 17-inch PCAP Touch Panel PC with Intel Core i7-9700TE, 8GB ECC
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Memory
    • ８GB DDR4-2666, Max.32GB
    • 16GB DDR4-2666, Max.32GB
    Storage *1*2
    • 1 or 2x 500GB to 2TB 2.5″ HDD
    • 1 or 2x 125GB to 2TB 2.5″ SSD
    • 1x 16GB to 256GB M.2 SSD key M2242
    OS
    • Windows 10 IoT Enterprise 2019 LTSC (64-bit)
    • Windows 11 IoT Enterprise 23H2 (64-bit)
    Power Supply
    • Input: 100-240VAC, Output: 24VDC 5A
    Other
    • VESA Mount (Includes 6 VESA mount screws)

    *1 There are two removable storage bays.*2 If needs to configure the RAID function, selects two same devices for the storage bays.
