| Mounting | Panel Mount; VESA Arm |
|---|
| Supported OS | Windows 11 24H2 LTSC 2024 64-bit |
|---|
| CPU Generation (Development code) | Elkhart Lake |
|---|---|
| Processor | Atom x6413E |
| CPU socket | – |
| Memory | up to 32GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key |
| LCD size | 15-inch |
|---|---|
| LCD resolution | 1024 x 768 (XGA) |
| Touch panel resolution | 1024 x 768 |
| Detection method | Analog resistive touch |
| Video | 1x DisplayPort; 1x Analog RGB |
|---|---|
| LAN | 2x 2.5GbE |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 2x USB3.1 Gen2; 4x USB2.0; 3x RS-232C; 1x RS-232C/422A/485 |
| Memory card | 1x CFast slot |
| Expansion bus | – |
|---|---|
| Drive bay | 1x 2.5-inch bay (SATA) |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (with no airflow) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|

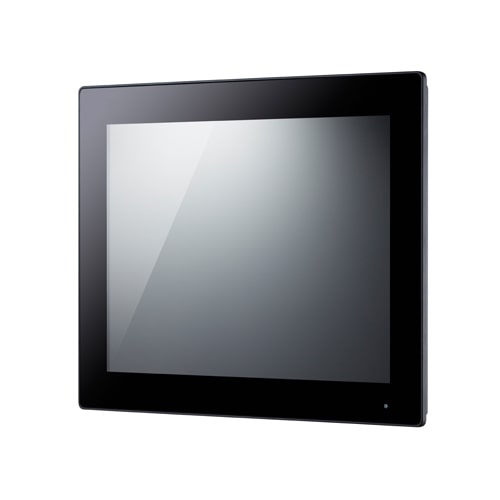

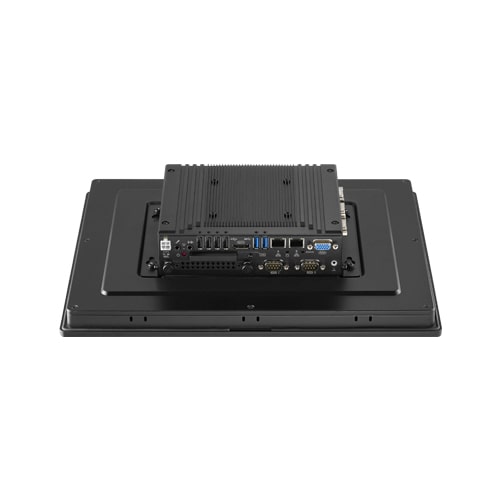

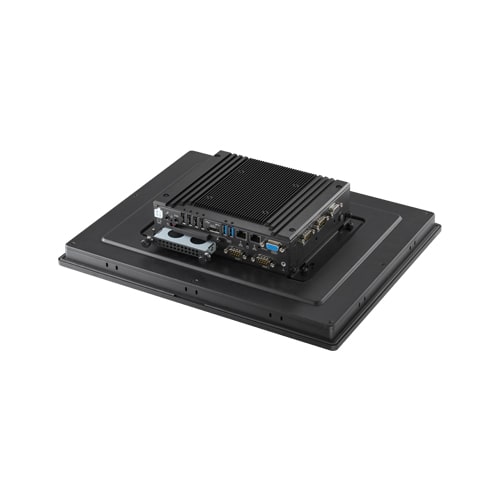

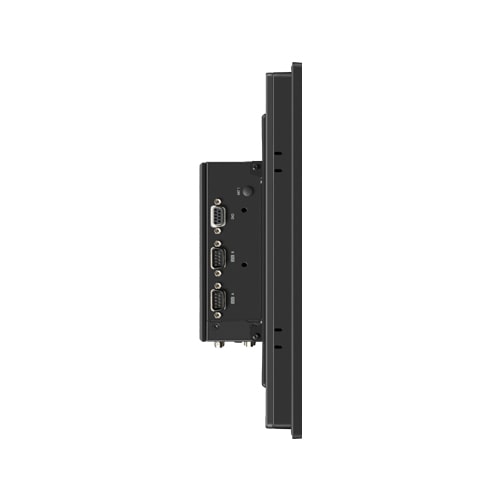

| PT-M15SA-300-G | 15-inch 5-wire resistive Panel PC / Atom x6413E (Elkhart Lake) / DC Power Supply |
|
| Storage |
|
|---|---|
| OS |
|
| Power Supply |
|
| Other |
|
