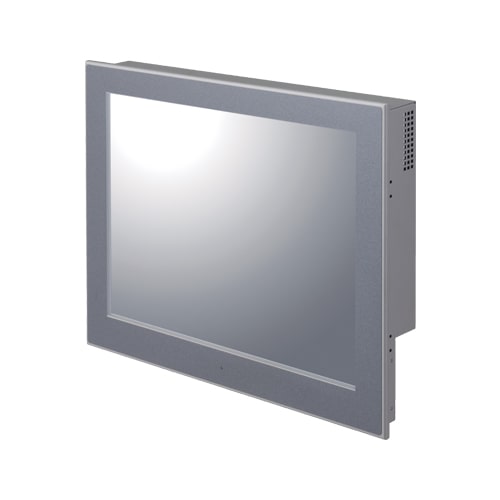

PT-M15SA-210_img1PT-M15SA-210_img1

PT-M15SA-210

  • Contributing to reduction of running cost and promotion of energy efficiency
  • Fan-less design reduces maintenance work
  • Adopting a 5-wire resistive film touch-screen holds high durability
  • “Power failure protection system” features power-off without OS shutdown
  • High-security design contributes to a highly reliable system
  • CONTEC-customized BIOS provides useful utility

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PT-M15SA-210 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a fan-less PANEL computer with an Intel Atom processor E3940 (1.6GHz). Addition to DisplayPort, a wide variety of interfaces including USB3.2 Gen1 (USB3.0) x 4, LAN x 2 are provided. It employs a M.2 card for storage and is fan-less to ensure a totally spindleless design that simplifies maintenance.Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level and Contec’s unique functions :”Power Failure Protection”, “CONTEC Fast Boot”, “Secure Boot USB Key”, “Disk Copy”, “Self-diagnosis” are available.

    • Contributing to reduction of running cost and promotion of energy efficiency
      • With the low power consumption platform Intel Atom® processor E3940, this product achieves low power consumption while ensuring adequate performance.
    • Fan-less design reduces maintenance work
      • The product is fan-less to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
    • Adopting a 5-wire resistive film touch-screen holds high durability
      • It has a 5-wire resistive film touch-screen that maintains high durability. The operating life is long-lasting of 36 million times*1 .
        • *1 with Load 250g, Speed twice/second, by machine keying.
    • “Power failure protection system” features power-off without OS shutdown
      • Equipped with the “Power failure protection system” function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 10 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
    • High-security design contributes to a highly reliable system
      • The latest security functions such as TPM2.0 and Secure Boot, as well as CONYEC’s original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
    • CONTEC-customized BIOS provides useful utility
      • Contec’s proprietary BIOS-based utility *2 has been implemented. “CONTEC Fast Boot” realizes Windows startup in 10 seconds *3 . Disk Copy provides secure disk backup at the BIOS level and supports backup in file and compressed file formats. In addition, a “BIOS update tool” for updating the BIOS *4 is available.
        • *2 For more information, see the BIOS Setup chapter.
        • *3It is an actual measurement value when the Windows 10 and HORM function is enabled at the factory. The time varies depending on the configuration. TXE, TPM, Network Stack, and SMART Self Test are not supported when fast startup is enabled.
        • *4For more information, please contact our Technical Support Center.

    Specifications

    Specifications
    Mechanical Design

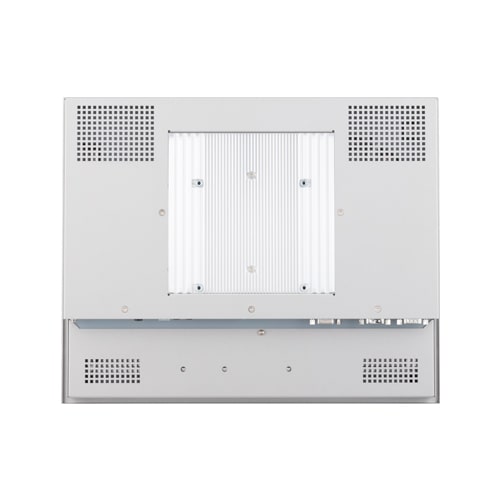

    Mounting Panel Mount; VESA 100 x 100
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) Apollo Lake
    Processor Atom x5-E3940
    CPU socket –
    Memory 8GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Touch Screen
    LCD size 15-inch
    LCD resolution 1024 x 768 (XGA)
    Touch panel resolution 1024 x 768
    Detection method Analog resistive touch

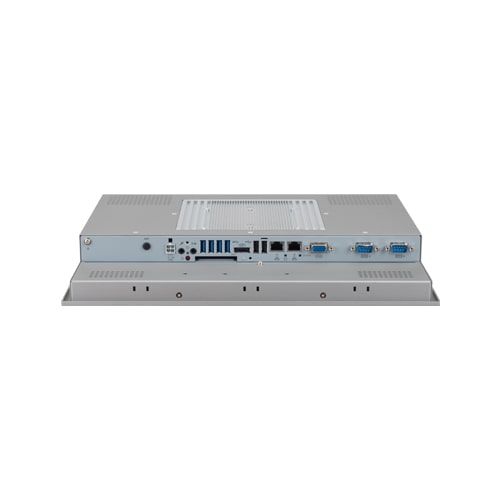

    Interface
    Video 1x DisplayPort; 1x Analog RGB
    LAN 2x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Mic-in
    I/O 4x USB3.2 Gen1 (USB3.0); 2x USB2.0
    Memory card 1x M.2 2242; 1x CFast slot
    Expansion Slot
    Expansion bus –
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature -20 to 65°C (-4 to 149°F) w/ 0.7m/s airflow, -20 to 55°C (-4 to 131°F) w/o airflow (at max. load); -20 to 70°C (-4 to 158°F) with 0.7m/s airflow, -20 to 60°C (-4 to 140°F) without airflow (During load derating)
    Storage temperature -20 to 70°C (-4 to 158°F)
    Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    PT-M15SA-210-J104M05 15-inch panel mount type / with resistive touch panel / without OS model (Memory 8GB, Storage 64GB)
    • CE marking
    • FCC compliant
    • VCCI
    PT-M15SA-210-J104M05W19 15-inch panel mount type / with resistive touch panel / Windows 10 IoT Enterprise 2019 LTSC 64bit ( English / Chinese / Japanese / Korean ) model (Memory 8GB, Storage 64GB)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    PWA-65AWD1 AC Adapter(12VDC)
    PWA-90AWD1 AC Adapter(12VDC)
    Storage
    Item Item Name
    CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
    CFS-16GBQ-A 1.0-inch 16GB SATA CFast Card (Q-MLC)
    CFS-32GBM2-A 1.0-inch 32GB SATA CFast Card (MLC)
    CFS-32GBQ-B 1.0-inch 32GB SATA CFast Card (Q-MLC)　(Wide temperature range spec)
    CFS-A 1.0-inch SATA CFast Card (SLC)
    Other Accessories
    Item Item Name
    IPC-CV15 Protection Cover for 15-inch PANEL-PC (10Sheet/Set)
