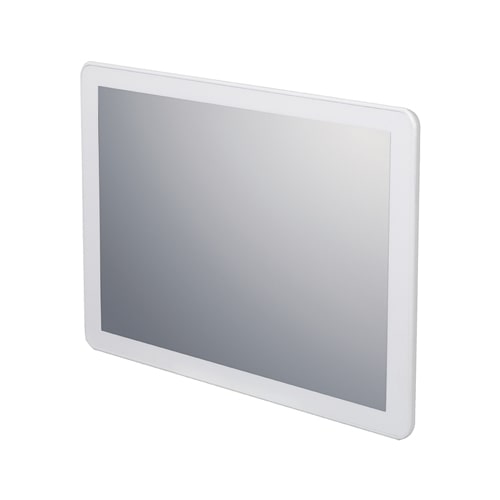

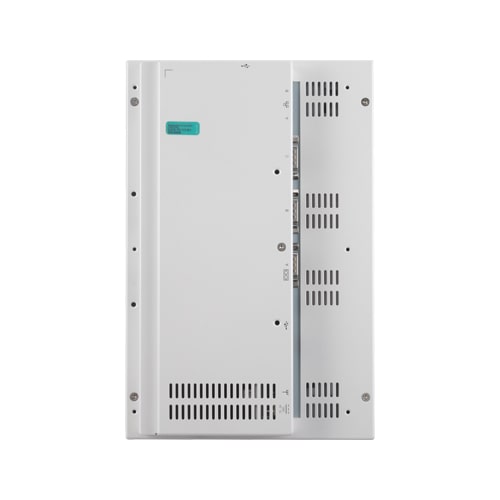

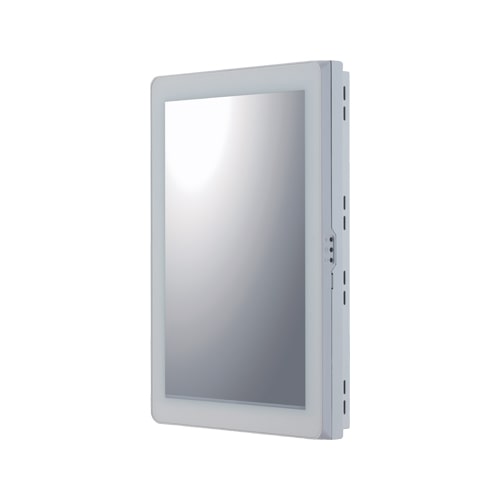

This product is a fanless panel computer equipped with a 10.1-inch (WXGA 1280 × 800; capacitive) touch panel display. This product is equipped with a built-in UPS battery that can operate for 5 minutes or more in the case of power failure such as a power outage and momentary blackout, contributing to improved system stability and reliability by being able to automatically shut down the OS using the included utility software.
| Mounting | Panel Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | Elkhart Lake |
|---|---|
| Processor | Atom x6413E |
| CPU socket | – |
| Memory | 8GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key |
| LCD size | 10.1-inch |
|---|---|
| LCD resolution | 1280 x 800 (WXGA) |
| Touch panel resolution | 1280ｘ800（WXGA） |
| Detection method | Projected capacitive touch (PCAP) |
| Video | – |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 5x USB2.0; 3x RS-232C |
| Memory card | – |
| Expansion bus | – |
|---|---|
| Drive bay | 1x 2.5-inch bay (SATA) |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 35°C (50 to 95°F) |
|---|---|
| Storage temperature | -10 to 50°C (14 to 122°F) (within 30 days); -10 to 40°C (14 to 104°F) (within 90 days); -10 to 30°C (14 to 86°F) (within 1 year) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| PT-M10WB-300-J2320 | 10.1-inch Panel Mountable PCAP / Atom x6413E / 8GB RAM / 128GB SSD |
|
| Item | Item Name |
|---|---|
| ACAP19-01 | Switching AC Adapter (19VDC 3.42A) |
