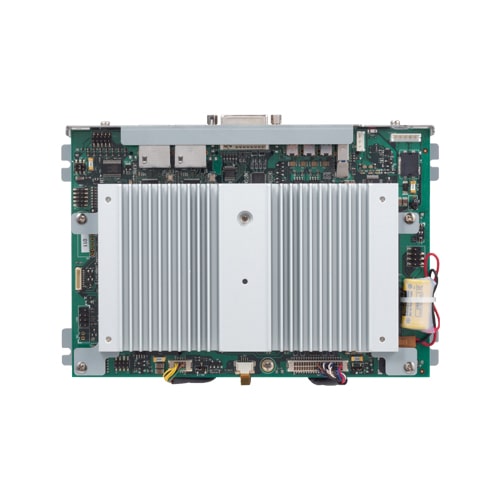

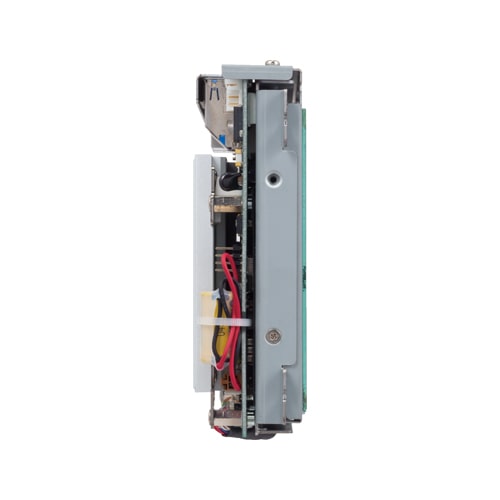

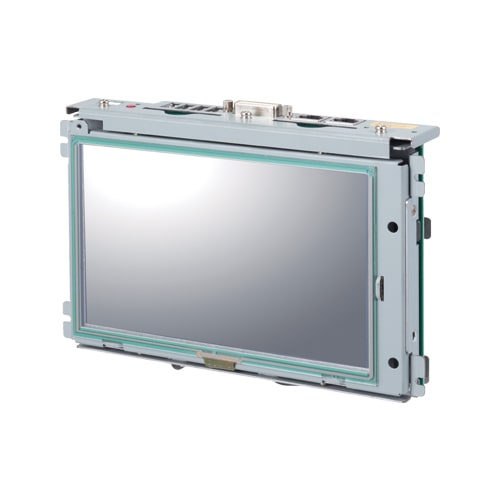

This product is a fanless Panel computer that is equipped with an Intel® Atom TM processor E3845 1.91GHz. With a 7-inch LCD touch-screen, the product allows to be integrated into various devices.Extendable interfaces such as DVI-I, LAN, USB3.2 Gen1 (USB3.0), USB2.0, and Serial are provided. It employs a CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance.Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.
| Mounting | Open frame |
|---|
| Supported OS | Windows Embedded Standard 7 32-bit |
|---|
| CPU Generation (Development code) | Bay Trail |
|---|---|
| Processor | Atom E3845 |
| CPU socket | – |
| Memory | 4GB |
| RAS | Hardware monitor (Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |
| LCD size | 7-inch |
|---|---|
| LCD resolution | 800 x 480 (WVGA) |
| Touch panel resolution | 800 x 480 (WVGA) |
| Detection method | Analog resistive touch |

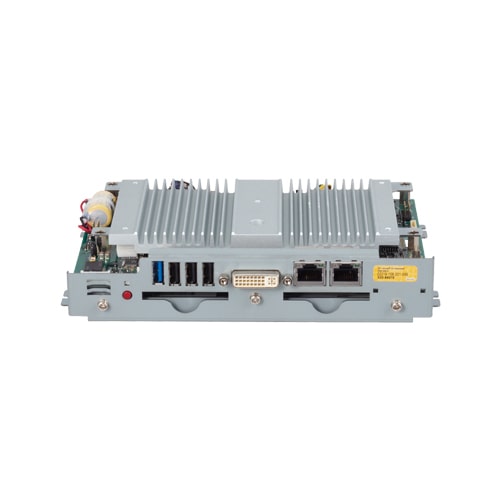

| Video | 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out |
| I/O | 3x USB2.0; 2x RS-232C; DIO (pin header) |
| Memory card | 2x CFast slots |
| Expansion bus | – |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | -10 to 55°C (14 to 131°F)（at light load）; -10 to 50°C (14 to 122°F) (at max. load） |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| PT-F07WA-100-J103NA | 7-inch Open Frame Resistive-film analog Touch Panel Without OS, (Memory 4GB without storage) |
|
