PT-D10WB-300_img1PT-D10WB-300_img1

PT-D10WB-300

  • Installable computer with desktop-type touch screen
  • Safe even if power is interrupted. UPS backup power supply, OS automatic shutdown function
  • Abundant expansion interface matched with device incorporation
  • Capacitive touch screen adopted
  • Fan-less design that reduces maintenance and inspection work

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PT-D10WB-300 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

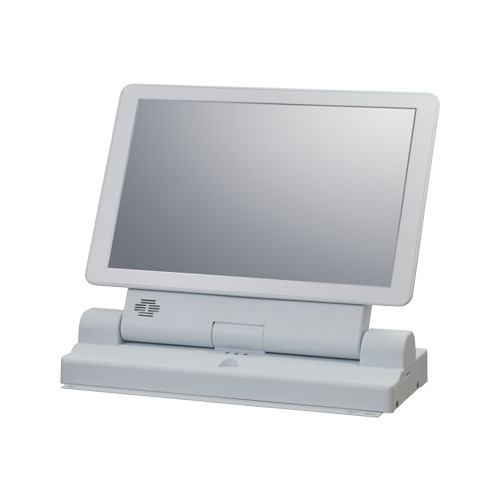

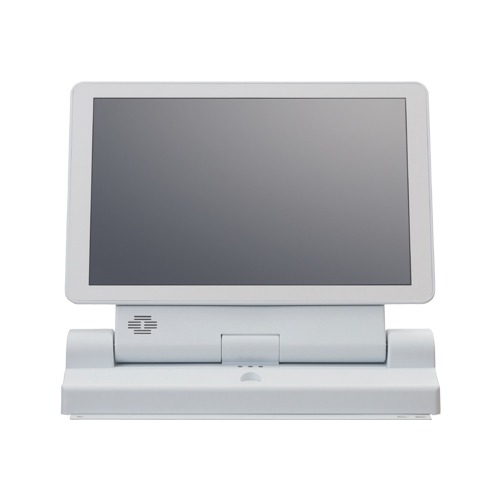

    This product is a liquid crystal integrated all-in-one computer, equipped with a 10.1-inch (WXGA 1280 × 800) touch screen display (capacitive type). It can be used for a wide range of applications, including as a control panel for medical devices or test equipment instead of a PC, or as a desk-mounted touch-type reception or authentication terminal.This product is equipped with a built-in UPS battery that can operate for 5 minutes or more in the case of power failure such as a power outage and momentary blackout, contributing to improved system stability and reliability by being able to automatically shut down the OS using the included utility software.Additionally, the angle of the display can be adjusted, and if pressed forward 90° the display can be closed completely, much like a laptop computer. In addition to desktop mounting using rubber feet (included), the product can be screwed to a device, fixing it like an embedded computer.

    Usage Examples

    Medical/Drug/Security system

    HMI for manufacturing and inspection machine

    Ordering/Reception/Authentication teminal

    • Installable computer with desktop-type touch screen

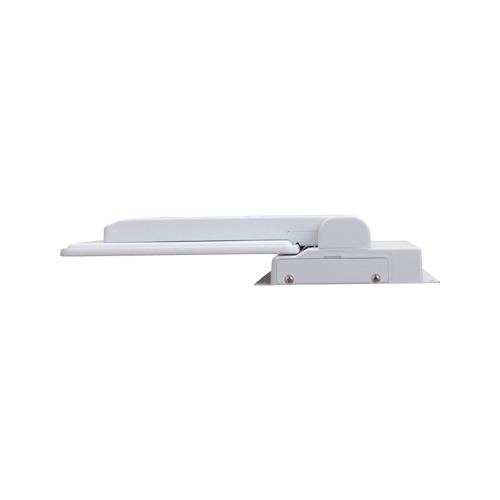

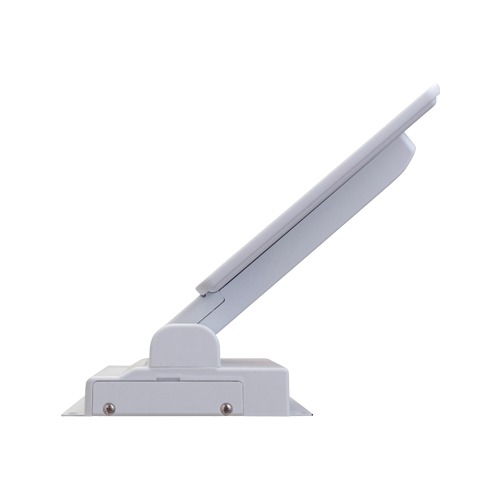

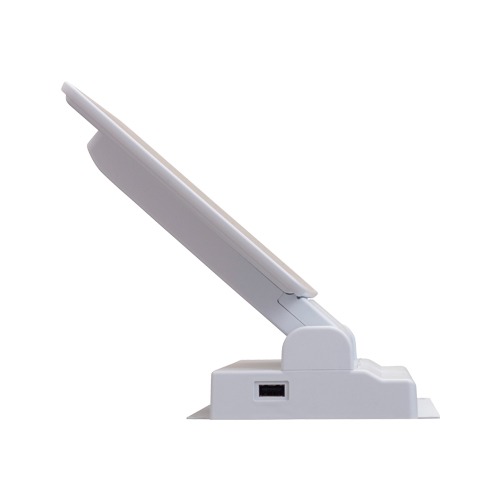

      • A panel computer equipped with a 10.1-inch (WXGA 1280 × 800) touch panel display that can either be mounted on a desktop using rubber feet (included) or screwed to a device, fixing it like an embedded computer. The angle of the display can be adjusted, and it is possible to close the display like a laptop computer by pressing forward 90°.
    • Safe even if power is interrupted. UPS backup power supply, OS automatic shutdown function
      • A backup power supply (nickel-metal hydride secondary battery) is built-in to the computer, protecting the system from sudden shutdown caused by unintended power interruption such as a power outage and momentary blackout. OS automatic shutdown utility software is also included.
    • Abundant expansion interface matched with device incorporation

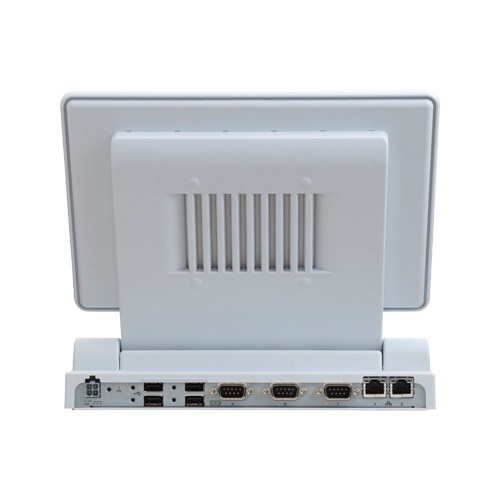

      • Equipped with an abundant interface, including USB 2.0 × 5, LAN × 2, and COM (RS-232C) × 3. Peripheral equipment for professional use, such as barcode readers or thermal printers, can be connected directly. Storage can also be easily exchanged from the side.
    • Capacitive touch screen adopted
      • It is tuned to be operable with the use of rubber gloves, so there is no problem using it in places where gloves are required.
    • Fan-less design that reduces maintenance and inspection work
      • This product’s spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.

    Specifications

    Specifications
    Mechanical Design
    Mounting Desktop
    Software Support
    Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit
    Core System
    CPU Generation (Development code) Elkhart Lake
    Processor Atom x6413E
    CPU socket –
    Memory 8GB
    RAS Hardware monitor (Temperature / Voltage); Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key
    Touch Screen
    LCD size 10.1-inch
    LCD resolution 1280 x 800 (WXGA)
    Touch panel resolution 1280ｘ800（WXGA）
    Detection method Projected capacitive touch (PCAP)
    Interface
    Video –
    LAN 2x 1000BASE-T/100BASE-TX/10BASE-T
    Wireless –
    Audio –
    I/O 5x USB2.0; 3x RS-232C
    Memory card –
    Expansion Slot
    Expansion bus –
    Drive bay 1x 2.5-inch bay (SATA)
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 35°C (50 to 95°F)
    Storage temperature -10 to 50°C (14 to 122°F) (within 30 days); -10 to 40°C (14 to 104°F) (within 90 days); -10 to 30°C (14 to 86°F) (within 1 year)
    Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    PT-D10WB-300-J2320 10.1-inch Desk-top PCAP / Atom x6413E / 8GB RAM / 128GB SSD / Win10 IoT Ent. 2021
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Power Supply / AC Adapter
    Item Item Name
    ACAP19-01 Switching AC Adapter (19VDC 3.42A)
