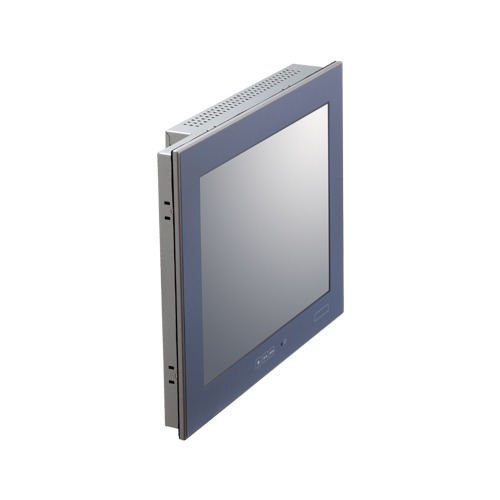

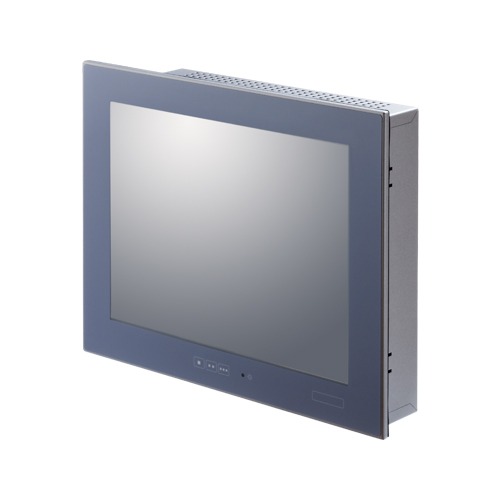

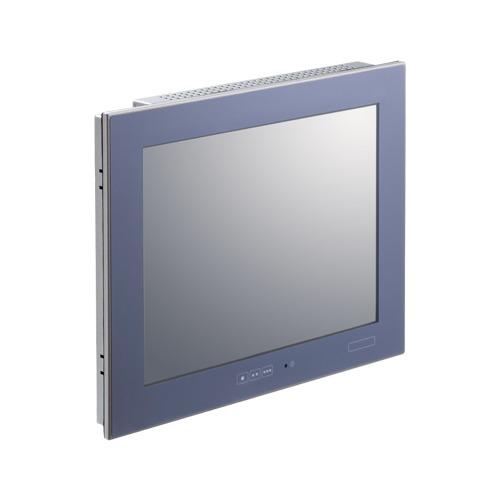

This product is a fanless computer for embedded applications. It features an ARM® Cortex-A8 AM3354 600MHz chipset.
As the unit has assorted interfaces including the USB, SD Card, 100BASE-TX, and Serial connectors, it can be used widely as a general-purpose terminal for embedded applications. It uses Windows Embedded Compact 7 loaded from Flash ROM along with user programs, the unit is implemented as diskless hardware without the need for a shutdown procedure.
Also, this product uses a 5-wire resistive film touch panel, which has improved durability. The front side has an IP65-rated dustproof/drip-proof structure. Also, this product uses a 5-wire resistive film touch panel, which has improved durability.
This product can be used in a variety of applications as the controller such as operation terminals located in manufacturing lines, distribution systems, and other parts of factories.
This product uses a 5-wire resistive film touch panel that has excellent durability, which provides a long operating lifetime. Compared to our conventional product, the IPC-PT/LS11 Series, the number of operations has increased from 10 million to 36 million*1.
*1 This value has been tested by mechanical touching under 300g of force at a rate of two presses per second.
Front side in IP65-rated dustproof/drip-proof structure.

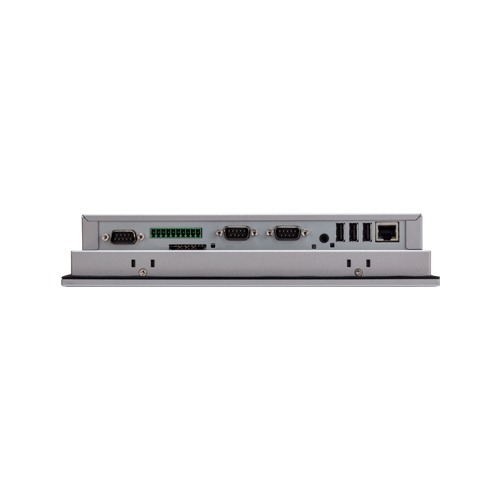

This product is standard-equipped with 3 serial channels (RS-232C × 2, RS-422A/485 × 1), USB, SD card slot, 100BASE-TX, 4 channels of general-purpose, isolated digital I/O ports, and stereo sound function. The drivers for the equipped interfaces are installed as standard.
This product stays trouble-free, being equipped with USB removal prevention fitting and cable clamp for connectors with no locking mechanism, such as USB cable, and with hardware to properly mount and avoid falling out of SD card.
XIP & memory loading boot function, enabling high-speed startup/operation.
| Mounting | Panel Mount; VESA 75 x 75 |
|---|
| Supported OS | Windows Embedded Compact 7 |
|---|
| CPU Generation (Development code) | – |
|---|---|
| Processor | ARM Cortex-A8 600MHz |
| CPU socket | – |
| Memory | 256MB |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | – |
| LCD size | 12.1-inch |
|---|---|
| LCD resolution | 800 x 600 (SVGA) |
| Touch panel resolution | – |
| Detection method | Analog resistive touch |
| Video | – |
|---|---|
| LAN | 1x 100BASE-TX |
| Wireless | – |
| Audio | 1x Line out |
| I/O | 3x USB2.0; 2x RS-232C; 1x RS-422A/485 |
| Memory card | 2x SD card slots |
| Expansion bus | – |
|---|---|
| Drive bay | – |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (with no airflow) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| PT-310LS-AC353111 [Limited Stock] | [End of Repair Service : September 17, 2031] PANEL-PC PT-310LS Series, Fanless, ARM Cortex-A8, SD, 12.1inch, WEC7(Japanese), AC input |
|
| PT-310LS-AC353112 [Limited Stock] | [End of Repair Service : September 17, 2031] PANEL-PC PT-310LS Series, Fanless, ARM Cortex-A8, SD, 12.1inch, WEC7(English), AC input |
|
| Item | Item Name |
|---|---|
| IPC-ACCODE3 | AC Power Supply Cable (100V) for Power Supply Unit |
| Item | Item Name |
|---|---|
| IPC-CV12 | Protection Cover for 12.1-inch PANEL-PC (10Sheet/Set) |
