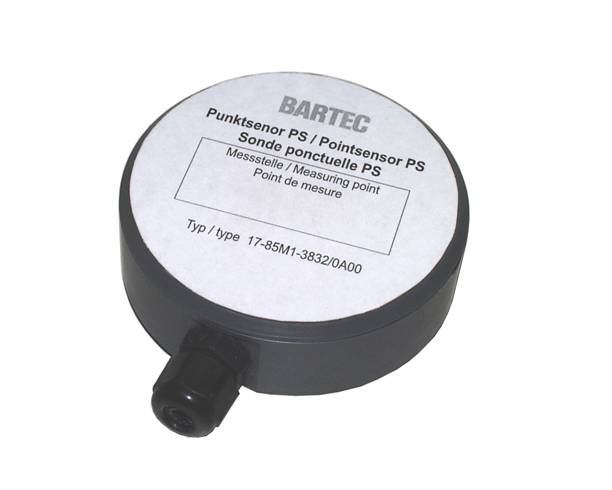

The point sensor is used to detect electrically conductive liquids such as water.With this point sensor the location of the leak can be detected quickly.
N/A
Temperature resistance -10 °C to +50 °C
Structure |
flat point sensor with cable gland and waterproof terminal area IPX4/X7 (to immerse 1 m, max. 12 h) |
Dimensions |
∅ 80 mm x 26 mm height |
Material |
Enclosure material PVC |
Sensitivity |
Leakage alarm as of 3 mm water level |
Connection |
Cable gland M 12 x 1.5 terminal area 3 to 6.5 mm Terminal screws at the input and output |
