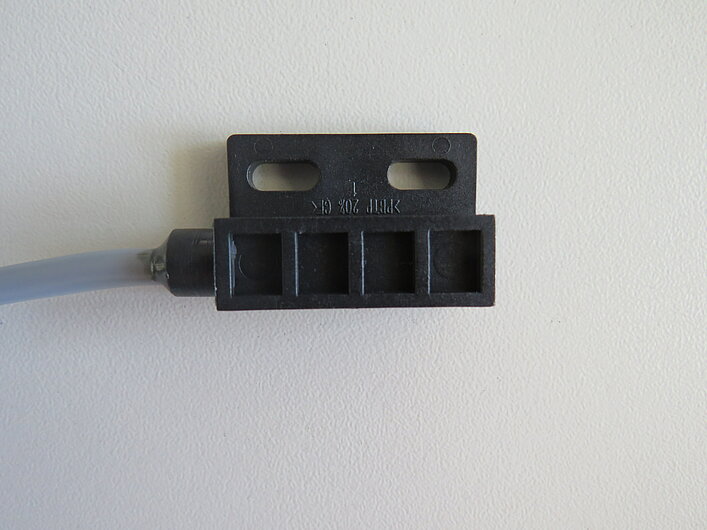

The proximity switch, type 07-.211-…./…., is a magnetic operated switch, available with either normally closed (NC), normally open (NO) or changeover (CO) contacts.
ATEX:Ex II 2 G Ex mb IIC T6 GbEx II 2 D Ex mb IIIC T80 °C Db IP 68
IECEx:Ex mb IIC T6 GbEx mb IIIC T80 °C Db IP68
Max. -60 °C ≤ Ta ≤ +75 °C(-76 °F ≤ Ta ≤ +167 °F) (T6)Max. -60 °C ≤ Ta ≤ +90 °C(-76 °F ≤ Ta ≤ +194 °F) (T5)* type depending values
| Degree of protection | IP 68 (IEC 60529) |
|---|---|
| Dimensions | see data sheet |
| Material | Celanex 3226 |
| Contact material | Silver or gold-coated contacts (all contact elements have a standard protective gold-coating as standard) |
| Voltage | see data sheet |
| Current | see data sheet |
