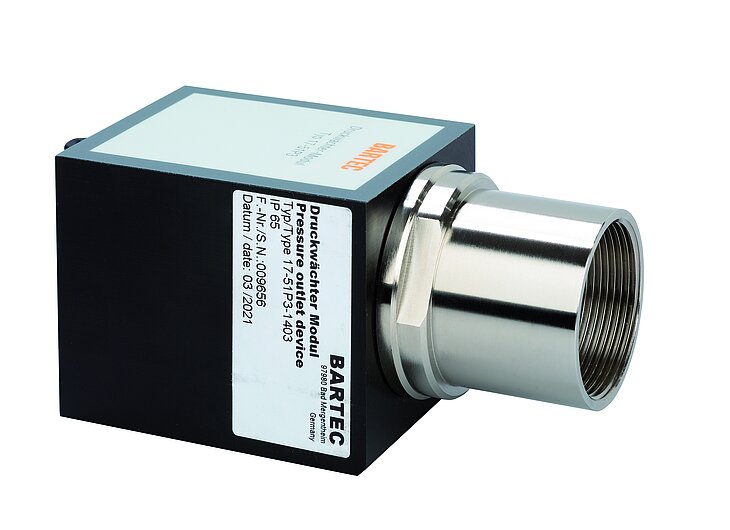

The pressure switch module is a component of pressurized controls for zone 1/21.For zone 1/21 applications, variants with different orifice sizes are available and can thus be optimally selected for the protected Ex p volume.The function of the pressure monitor module is on the one hand to measure the flow in connection with the Ex p control unit and on the other hand it serves as a pressure safety valve.
Operating temperature-20 °C to +80 °C(-4 °F to 176 °F)Storage temperature-20 °C to +80 °C(-4 °F to 176 °F)
| Protection class | IP 65 |
|---|---|
| Flying spark barrier | 3-fold |
| Structure | with Ex px/py operating equipment Mounting position: – any position – plastic body inside Ex p operating equipment |
| Opening pressure | 3 mbar |
| Installation | Mounting hole: Ø 37 mm |
| Connection | Quick plug-in connector for hose |
| Measuring orifice | 8 mm up to 18 mm |
| Ex p Control Unit | APEXpx or APEXpy |
