csm_No_Flow-Pour_Point_Analyzer_Model_P-840LT_fff37b9fb0csm_No_Flow-Pour_Point_Analyzer_Model_P-840LT_fff37b9fb0

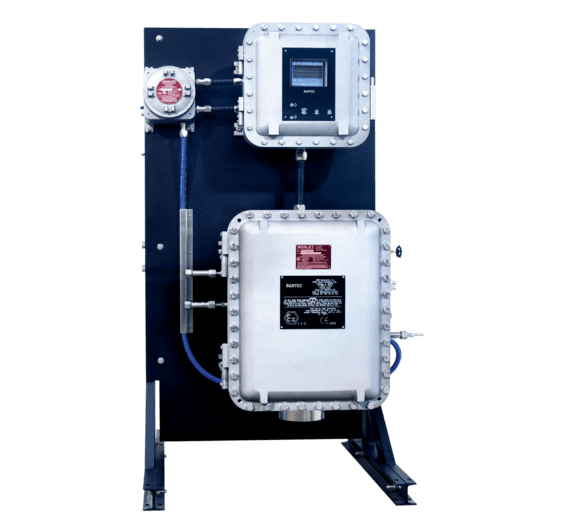

Pour Point Analyzer

Model P-840LT
P-840LT-1.00
  • Operating range -100 to 25 °C (-148 to 77 °F)
  • Rapid analysis cycles of 10 to 45 minutes
  • Superior repeatability of less than 0.5°F (0.25°C)
  • High pressure sample detection cell eliminates the need for atmospheric recovery
  • Stream switching and validation
  • Remote diagnostics over IP
Description
Technical Data
Manuals/Operating Instructions/Guides
Data Sheets
Brochures

To remain competitive, today’s refiners must employ all optimization and product control techniques available. The use of online physical property analyzers is one of the key features to reach those objectives because they measure important quality properties in the process directly. The no flow point (correlating to pour point) is the temperature where a product (as it is cooled) stops flowing.

Marking

Class I, Division 1, Group B, C and D.Ex db IIB T6 GbEx db IIB T6 Gb

Ambient Temperature

T6

Certification
  • Pour Point Analyzer IECEx Certificate of Conformity: EN
  • Pour Point Analyzer EU-TYPE EXAMINATION CERTIFICATE: EN
  • Pour Point Analyzer Certificate of Compliance: EN

Technical Data

Technology Differential pressure sensing system
Method Compliant with ASTM D7346 Correlates with ASTM D97
Measuring cycle Typical is less than 20 minutes
Analog outputs Pour Point/No Flow Point, cell temperature, pressure signal
Digital outputs Pour point alarm, analyzer fault, come read (programmable)
Digital inputs customer alarm, remote standby, stream switch, validation (dry contact)
Display 7″ color graphics
Weight approximately 340 kg (750 lbs)
Dimensions Approximately 940 x 1803 x 762 mm (37 x 71 x 30 inches)
MODBUS interface TCP/IP or Serial/RTU MODBUS output available
