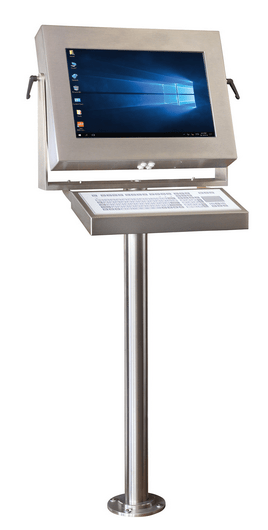

The POLARIS II Panel-PC is equipped with the Intel® Celeron® J1900 as standard. Allows high-performance visualation and operation ofthe processes directly on site. Windows 7® Ultimate or Windows 10 lot Enterprise are available as possible operating systems. This means that the Panel PCs are open for many different software packages, for example customised software or various types of commercially available standard visualisation software
ATEX Zone 2 and 21:Ex II 3(2)G Ex ec ib [ib IIC oder IIB Gb] IIC T4 GcEx Il 3G Ex ec ib IIC T4 GcEx II 2D (2G) Ex ib tb [ib IIC oder IIB Gb] IIIC T120 °C Db-25°C Ta +50 °C
IECEx:Ex ec ib [ib IIC or IIB Gb] IIC T4 GcEx ec ib IIC T4 GcEx ib tb [ib IIC or IIB Gb] IIIC T120 °C Db-25 °C ≤ Tamb ≤ +50 °C
Operation: 0 °C ≤ Ta ≤ +50 °C(32 °F ≤ Ta ≤ +122 °F )
|
Operating temperature range Ta |
Storage -25 °C to +60 °C Operation 0 °C to +50 °C |
|---|---|
| Protection class | IP 65 |
| Structure | Stainless-steel enclosure |
| Material | Stainless steel, polyester film |
| Interface | basic version: 2 x Ethernet 100BaseT 4 x USB (on version with keyboard and mouse, 1 x on terminals) Optional: RS232/422/485 Serial Interface |
| Audio | internal PC housing loudspeaker (optional) |
| Input voltage | DC 24 V ± 10 % AC 90 V or 253 V |
| Supply voltage | DC 24 V ± 10 % AC 100 to 230 V, 50 or 60 Hz |
| WLAN | Optional via Smart Device |
| Bluetooth | Optional via Smart Device e.g. connection to BARTEC BCS Bluetooth hand scanner (also zone 1) |
