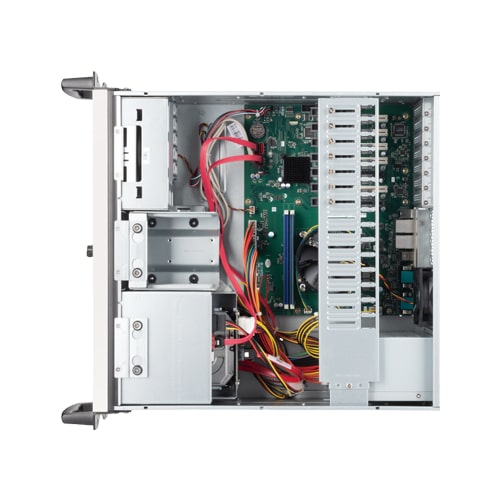

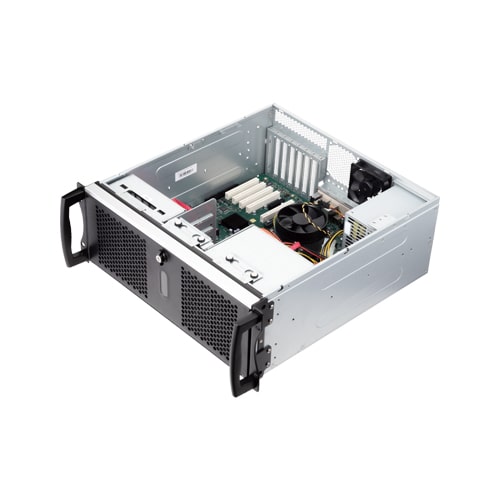

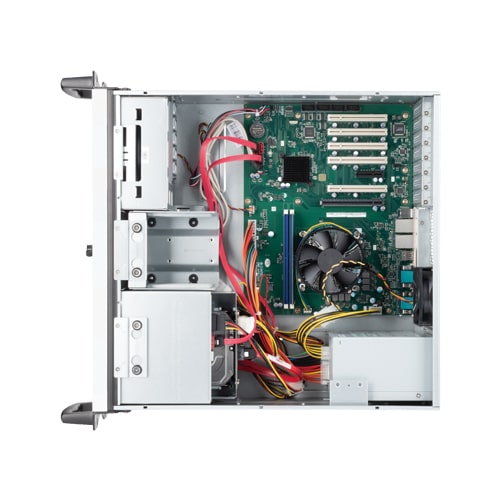

This product is a 19-inch rack-mount industrial-use PC that supports the 13th (Raptor Lake) of Intel® Core™ series and contains the H610E chipset. In addition to a wide range of interfaces, expansion slots of PCI bus x 5, PCI Express Gen5(x16) bus x 1, or PCI Express Gen5(x8) x 1, PCI Express Gen3(x4) x 1 bus are equipped. A reliable, Japan-made power supply can be selected. A power supply equipped with a nickel metal hydride battery, for optimal countermeasures against momentary and prolonged power outages are also available. Solution-ePC™ is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers. Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use.
| Mounting | Rack Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit; MIRACLE LINUX9.4 |
|---|
| CPU Generation (Development code) | 13th Gen. (Raptor Lake-S) |
|---|---|
| Processor | Core i9-13900E; Core i7-13700E; Core i5-13500E; Core i3-13100E |
| CPU socket | LGA1700 |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage) |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x HDMI; 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 2x RS-232C/422A/485 |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16)/(x8); 1x PCI Express(x4); 5x PCI |
|---|---|
| Drive bay | 2x 3.5-inch bay (SATA); 3x 5-inch bay (SATA) |
| Input voltage | 90 to 264VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| MR4310 | Solution-ePC – 19″ Rackmount PC / Intel 13th(Raptor Lake) / 1× PCIe(x16) or 1× PCIe(x8) / 1x PCIe(x4) / 5×PCI / AC Power Supply |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| Power |
|
|---|---|
| CPU |
|
| Memory |
|
| Storage 1 |
|
Storage 2 |
|
| OS |
|
| RAID |
|
| Keyboard &Mouse |
|
| Expansion slot COM |
COM3, COM4, COM5, COM6 4 port expansion |
| Other Options |
|
* The setting selected for whether a removable drive is present is common for storage 1 and storage 2. (Example: If you select that storage 1 is present, storage 2 is also selected to be present.)
| Item | Item Name |
|---|---|
| HDD-2TS-3 | 3.5-inch 2TB SATA Hard Disk Drive |
| HDD-2TS-3R | 3.5-inch 2TB SATA Hard Disk Drive, RAID |
