csm_MPCnet_TL_Ex_temperature_limiter_bd12f5de24csm_MPCnet_TL_Ex_temperature_limiter_bd12f5de24

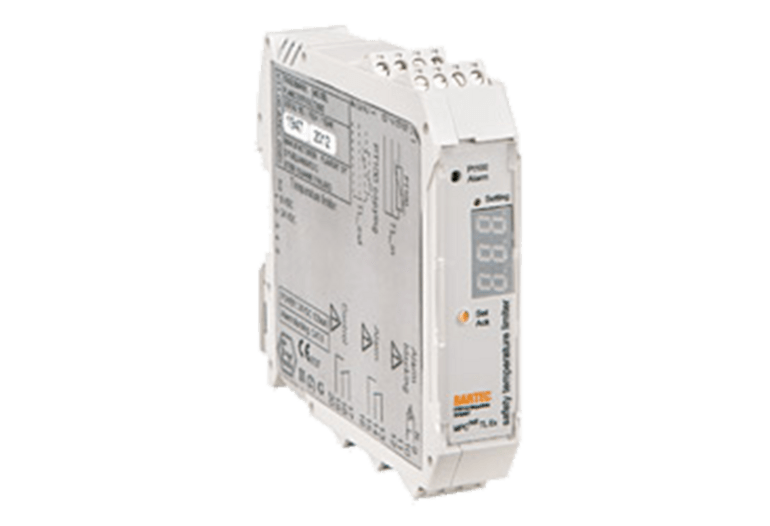

MPCnet TL Ex

MPCnet Ex temperature limiter
17-8851-00300000
  • ATEX approval
  • Optimised for trace heating applications (with service entry)
  • Fault monitoring
  • In conjunction with Pt100 Ex, it can be used for monitoring temperature in explosionprotected heating circuits
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Data Sheets

    The TL Ex safety temperature limiter is a constituent part of the MPCnet system and is used to monitor heatings and heating circuits. The device is for installation in non-hazardous areas. The heatings or heating circuits can be installed both in media-protected and also in hazardous (potentially explosive) areas

    Marking

    Ex II (2)G [Ex e]

    Ambient Temperature

    -20 °C to +40 °C

    Certification
    • EU Type Examination Certificate: EN

    Technical Data

    Mechanical data Dimensions 22.5 mm x 100 mm x 114.5 mm
    Installation: mounting rail TH35 metal
    Protection class IP 20
    Electrical measuring range -50 °C to +600 °C
    Measurement range accuracy +/-1°C
    Voltage DC 24 V Input current 105 mA, maximum 2,7 W

    Data Sheets

      MPCnet TL Ex temperature limiter
