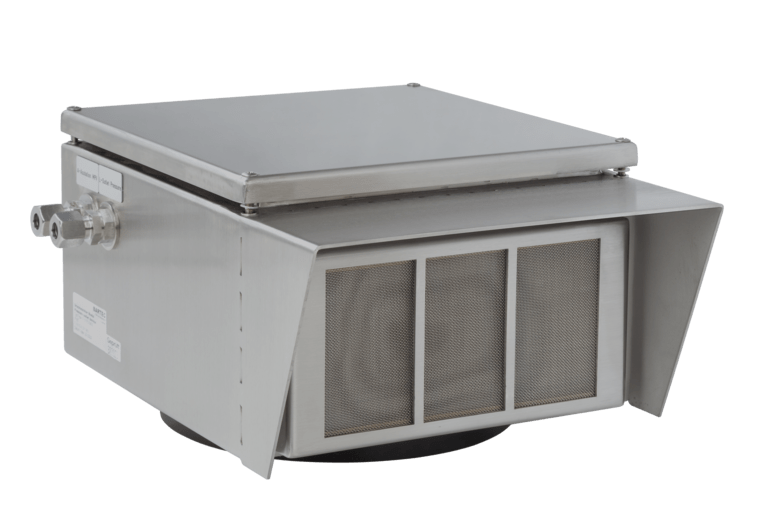

Motor Purge Control System consisting of a Motor Purge Controller – APEXmpcor SILASmpcand a Motor Purge Valve – mpv(pressure monitor) is a unit allowing a safe operation of electric motors in a hazardous environment.The explosion protection is ensured by means of a pressurized enclosure with leakage loss compensation. The Motor Purge Control System monitors, controls and regulates the purging gas supply for the Ex p motor.Any malfunctioning in the system or the purging gas supply will be reported reliably and deactivated by safely isolating the Ex p motor.
Operating temperatureStandard:-30 °C to +60 °C(-22 °F to +140 °F)Extended:-50 °C to +60 °C(-58 °F to +140 °F)
| Protection class | IP 65 |
|---|---|
| Structure | valve-controlled outlet for MPC Pressure relief: integrated, opens at 50 mbar Flying spark and particle barrier: integrated |
| Dimensions | see data sheet |
| Material | Stainless steel (V4A), (Sheet steel on request) |
| Installation | Mounting: Horizontal or vertical |
| Connection | Connections: 2 x pipe connection 10 mm Connection flange: DIN2633 NW 50 PN16 (MPV 2) DIN2633 NW 100 PN16 (MPV 3) (See Operating Instructions for dimensions) |
| Ex p Control Unit | APEXmpc or SILASmpc |
