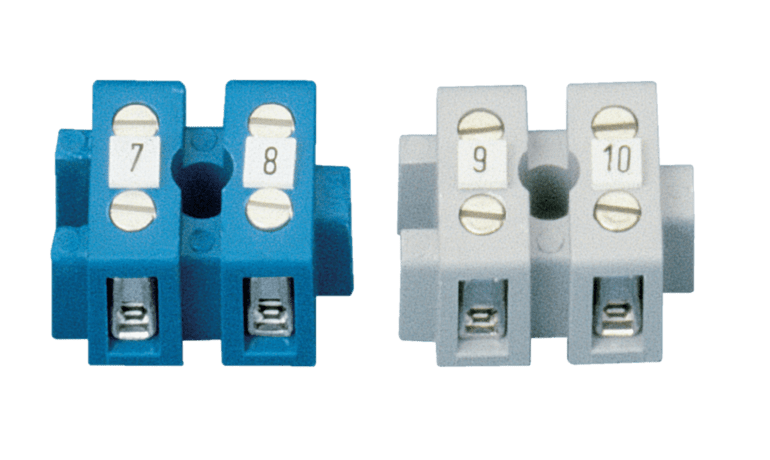

Ex e I/II mini-terminal:The mini terminal allows conductors to be connected in hazardous areas. In order to protect from mechanical damage, touch, dust and moisture, Ex terminals must be installed in increased safety type “e“ enclosures.BARTEC mini-terminals are available as 2 and 3-pole terminals which can be mounted in a row. The clearances and creepage distances allow the terminals to be mounted directly on metal. Each individual terminal pole is marked with a number or symbol by a clip-on label. 2 and 3-pole bridges are available for cross connection terminals.Ex I/II mini-terminals for intrinsically safe circuits:The design of the blue mini-terminal is the same as that of the Ex e I/II mini-terminal and is tested in the same way, too.
| Material | Insulation: duroplast |
|---|---|
| Contact material | Terminal: copper alloy |
| Installation | BARTEC mounting rail or base of enclosure Contact spacing: 11 mm |
| Weight | 2-pole: 13 g 3-pole: 19 g |
| Voltage | max. 440 V for UL (CSA:300 V) |
| Current | max. 23 A for UL (CSA: 16 A) |
| Connection | 2.5 mm² (single-, fine- and multi-stranded) (UL: AWG 24 – 14) |
