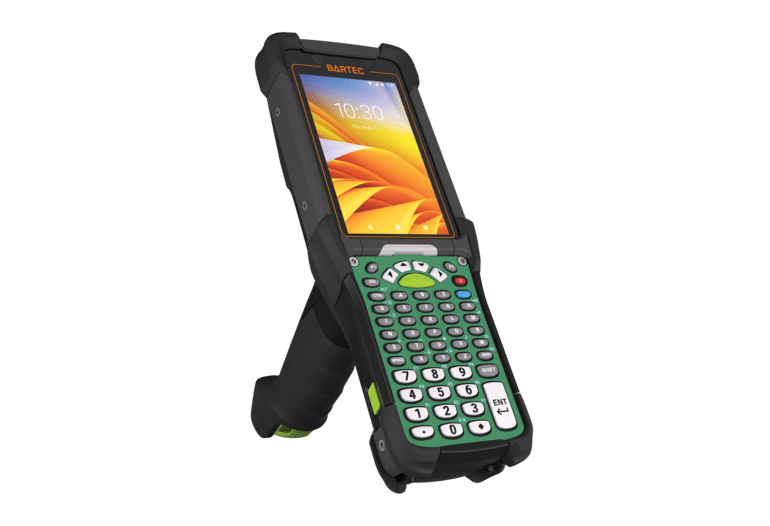

BARTEC MC9400/9450EX2Mobile Computer

Hardware Specifications

• Processor: Qualcomm® 4490 Octa-Core; 2.4 GHz
• Memory (RAM): 6 GB
• Mass Storage: 128 GB
• Display: 4.3″ Display with LED Backlight
• Resolution: 800 x 400 pixel, WVGA
• Front Glass: Corning Gorilla glass
• Touch Function: Capacitive Touch (Stylus, bare or gloved fingertip input)
• Size (L x W x H): 88 mm x 240 mm x 189 mm (3.5 inch x 9.4 inch x 7.4 inch)
• Weight (with battery): 743 g (1.64 lb)
• Battery: Lithium-ion battery 3.6 V/7000 mAh (25.2 Wh)

Connectivity and Network

• WLAN-WiFi: IEEE 802.11 a/b/g/n/ac/ax/d/h/i/r/k/v/w/mc; 2×2 MU-MIMO; Tri-band (2.4 GHz,
  5 GHz, 6 GHz) ; Wi-Fi CERTIFIED 6™ (Wi-Fi 6E); Dual Band Simultaneous; IPv4, IPv6
• Bluetooth: Class 2, Bluetooth v5.3
• NFC: ISO 14443 Type A and B; FeliCa and ISO 15693 cards
• SIM (only MC9450^EX2 models): Dual SIM (Nano SIM + eSIM)
• WWAN (only MC9450^EX2 models): 5G, 4G, 3G; supports private networking
  (LTE/5G)
• GNSS (only MC9450^EX2 models): GPS, GLONASS, Galileo, QZSS
  Dual-Band GNSS — Concurrent L1/G1/E1 (GPS/QZSS, GLO, GAL) + L5/E5a/BDSB2a (GPS/QZSS, GAL) a-GPS Supports
   XTRA

Camera, Scanner and Audio

• Back Camera: 16 MP autofocus; flash LED generates balanced white light; supports
  Torch mode + HDR (standard)
• Front Camera: 8 MP
• Barcode capture: SE58 1D/2D Extended Range Scan Engine with IntelliFocus™
  technology with green laser aimer
• Voice & Audio: Speaker, microphone, PTT voice (internal speaker and Bluetooth
  wireless headset support)
• Notifications: Audible tone; multi-color LED; haptic feedback

Additional Features and Accessories

• Operating System: Android ^TM 14
• Operating Temperature: -20 °C to +50 °C (-4 °F to +122 °F)
• Protection Class (IEC 60529): IP65 and IP68 with battery
• External I/O: USB 2.0 (bottom pogo connector) — high speed (host and client)
• Sensors: Light Sensor, Magnetometer,  Motion Sensor
• Buttons: Trigger scan button; keypad scan button
• Keypad: 29 key numeric/calculation, 43 key numeric/function, 53 key alphanumeric STD,
  or 53 key terminal emulation (VT)
• Scope of Delivery: BARTEC MC9400/9450^EX2 Mobile Computer, Standard battery,
  Quick Start Guide, Mandatory accessories
• Required (not included): Charging accessories

^{Google is a trademark of Google LLC.
Qualcomm is a registered trademark of Qualcomm Incorporated}
