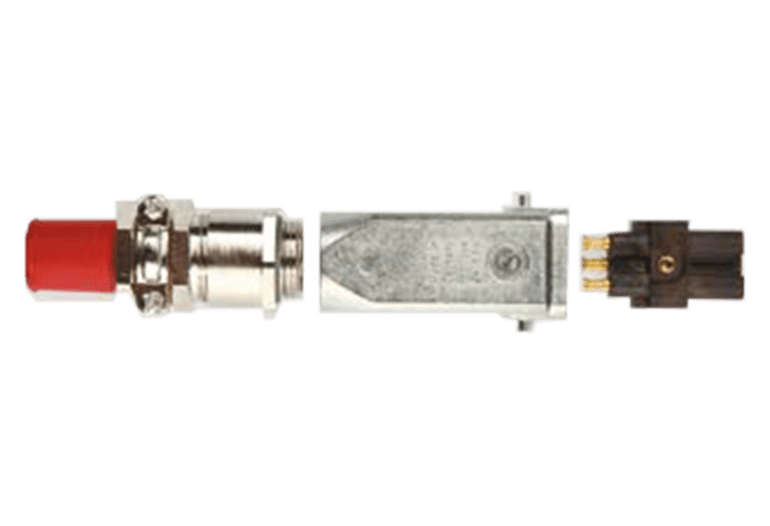

The mating connectors, assembly kit 03-9320-0168 to -0174, are compatible with the LOCAproof limit switches, type 37-2937-1130/…., from the firm of BARTEC GmbH. They are resistant to ionising radiation, high temperatures and vibrations and feature a high level of strain relief. The mating connectors are suitable for use in the construction of machines and turbines and also in nuclear technology.BARTEC GmbH supplies an assembly kit, which contains all the components for assembling a connection cable.
-25 °C to +85 °C (-13 °F to +185 °F)
| Dimensions | see datasheet |
|---|---|
| Accident conditions | Radiation resistances up to 800 kGy: Tmax. 156 °C/12 h P max. = 7.0 bar abs. Radiation resistances up to 250 kGy: Tmax. 152 °C/12 h P max. = 6.5 bar abs. |
| Radiation exposure | Under normal conditions: 50 kGy |
| Protection class | In conformance to DIN EN 60529 in locked position: IP 65 |
| Mechanical service life | Contact durability: min. 500 |
| Voltage, currents | Rated current: 10 A Rated voltage: 250 V Rated impulse voltage: 4 kV |
| Conductor cross-section | 0.5 mm2 (20 AWG) |
| Material | Brass, nickel-plated Flourelastomers Zinc die casting Ryton |
| Contact | Crimp contact Brass, gold plated |
