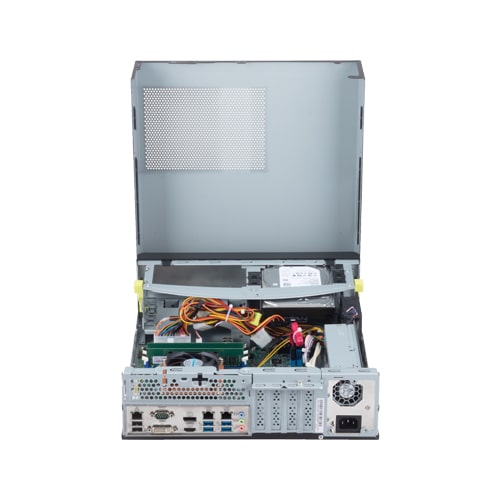

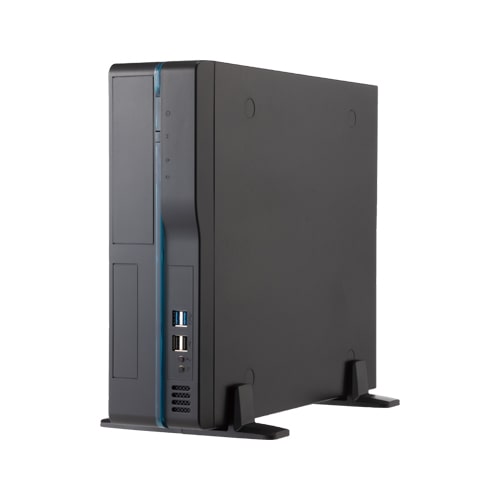

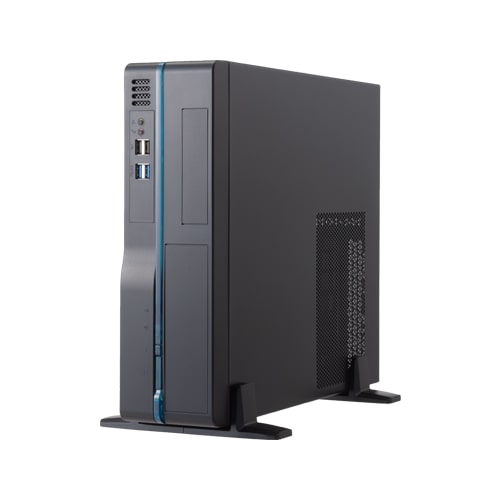

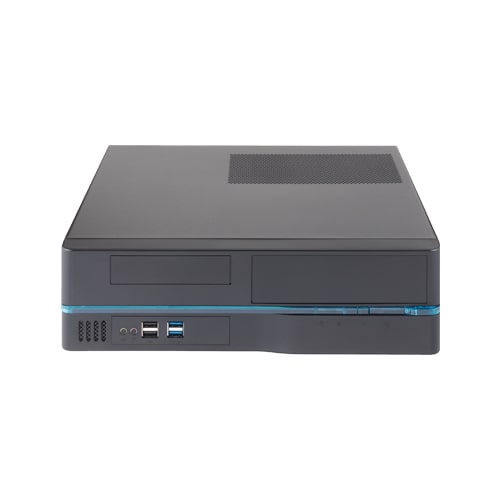

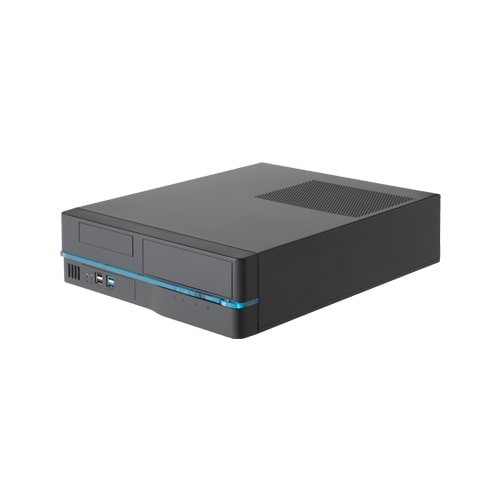

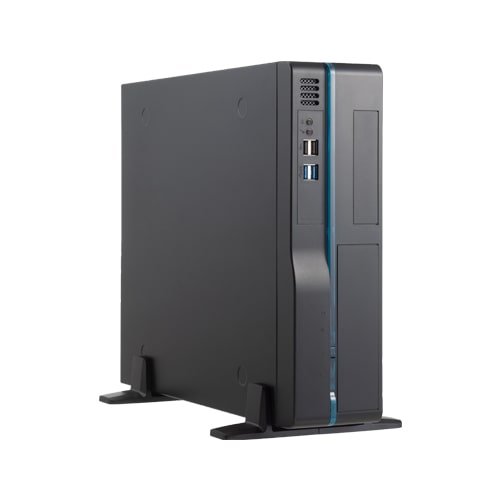

This product is a slim tower type industrial computer that is equipped with an 8th generation Intel® Core™ processor series.The Intel® Q370 chipset with DDR4 memory 32GB provides advanced computing and graphical performance.This product features a variety of interfaces such as one each port of DVI-I, HDMI, DisplayPort, Six USB3.2 Gen1 (USB3.0) ports (front: 2,rear: 4), four USB2.0 ports (front: 2, rear: 2), one serial ports (RS-232C/422A/485×1), and three 1000BASE-T ports, which can be used in a wide range of embedded applications such as general-purpose PC OS-based controllers and information terminals.Expansion slots : PCI-Express(x16) slot x1, PCI-Express(x4) slot x2, PCI slots x1
Equipment built-in terminal
Image processing terminal
Digital signage terminal
Reception terminal
| Mounting | Desktop; Wall Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 10 IoT Enterprise 2019 LTSC64-bit + Office LTSC 2021 Embedded |
|---|
| CPU Generation (Development code) | 8th Gen. (Coffee Lake-S) |
|---|---|
| Processor | Core i7-8700T; Core i5-8500; Core i5-8500T; Celeron G4900T |
| CPU socket | LGA1151 |
| Memory | up to 32GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x DisplayPort; 1x HDMI; 1x DVI-I |
|---|---|
| LAN | 3x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 6x USB3.2 Gen1 (USB3.0); 4x USB2.0; 1x RS-232C |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16); 2x PCI Express(x4); 1x PCI |
|---|---|
| Drive bay | 1x 3.5-inch shadow bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; UKCA; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| LPC-1700 | BTO model |
|
| LPC-1700-J436000100000 | Core i5-8500 / 32GB RAM / 3.5 inch SATA HDD 2TB / Win10 IoT Ent.2019 |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.*1
| CPU |
|
|---|---|
| Memory |
|
| Storage 1 |
|
Storage 2 |
|
| Optical drive |
|
| RAID(Mirroring)*2 |
|
| OS |
|
| Options |
|
| Expansion COM(B)*4 |
|
