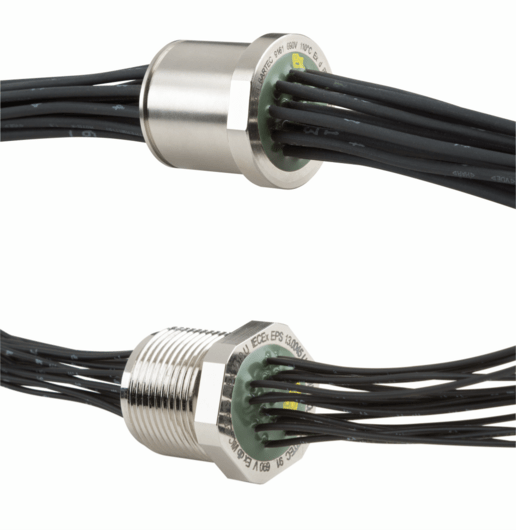

A line bushing is a component for the electrical connection between a flameproof “d“ enclosure and an increased safety “e“ terminal box. The bushing consists of a threaded or non-threaded metal sleeve encapsulating one or more cores providing a flameproof barrier. The lengths of these leads vary according to their applications. The depth of engagement of the threaded sleeves and the joint length of the cylindrical sleeve in the wall of the “d“ enclosure must correspond to the EN 60079-0 and EN 60079-1 standards. After installation the bushing must be protected against rotation and accidental loosening. Recommendations are given under “Accessories“. Our standard bushings come with threaded sleeves from M10 to M48 or with cylindrical sleeves. They are equipped with cores with a 0.2 to 95 mm2 csa. and approved for nominal voltages between 250 V and 3 000 V. See also table “Electrical data“.For the connection of intrinsically safe circuits in the “d“ area with the terminal strip in the connection compartment we provide line bushings with blue cores for “i“ low power circuits.
ATEX:Ex II 2G Ex db IIC GbEx I M2 Ex db I Mb
IECEx:Ex db IIC GbEx db I Mb
Service temperature (Ts):-60 °C to +110 °C(-76 °F to +230 °F)depending on the lead used and static test pressure (temperature ranges apply to the “fixed installation” of leads)
| Dimensions | see data sheet |
|---|---|
| Voltage | Rated voltage: 690 V/1 000 V/3 000 V |
| Current | see data sheet |
| Connection | max. number of cores: 50 cores Cross-section: 0.25 mm² to 120 mm² AWG24 to AWG1 Sleeve size: metric: M16 x 1.5 to M42 x 1.5 non-threaded: ∅ 22 mm to ∅ 36 mm Sleeve material: Metal, bare, varnished or galvanised |
