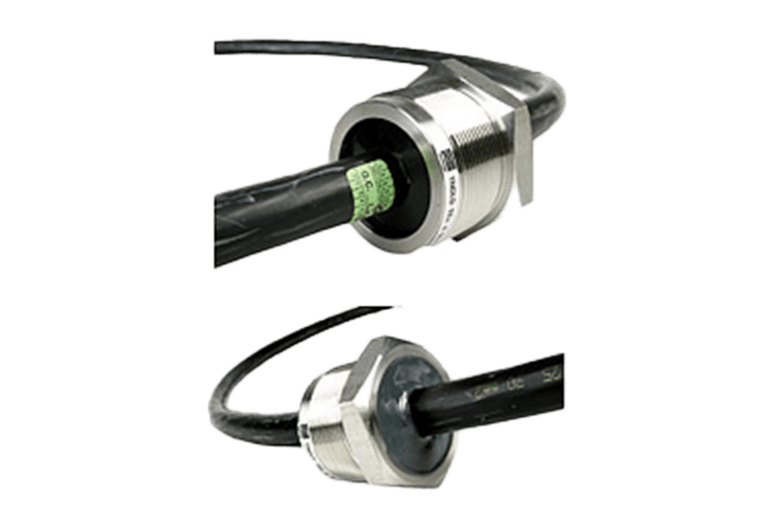

TNDLDE

Flameproof line bushing for coaxial cables for use in Zone 1
DLDE..
  • Stainless steel 316L
  • Variety of coaxial cables available for use
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Manuals/Operating Instructions/Guides
    Declarations
    Data Sheets

    The TNDLDE range of line bushings are designed as components for use in all Ex de enclosures to pass connection between the Ex d and Ex e compartment in combination Ex de enclosures.The TNDLDE is designed to accommodate coaxial cables such as RG179 (50 Ohm) or can be manufactured to order for custom or hybrid bushing requirements.



    Marking

    ATEX:Ex II 2 G Ex db IIC Gb

    IECEx:Ex db IIC Gb

    Ambient Temperature

    -40 °C to +110 °C

    Certification

    Technical Data

    Material Centre conductor: Copper Ø 2.25 mm
    Dielectric: REX (Polyethylene cross-linked) Ø 7.25 mm
    Outer conductor: Copper, Silver plated, braid, 95%, Ø 8.15 mm
    Jacket: RADOX (LSFH), RAL 9005 –
    bk 10.3 mm ±0.1
    Print: HUBER+SUHNER GX 07272 50W (PA no.)
    Weight 16.1 kg/100 m
    Voltage Max. operating voltage: 5 kVrms (at sea level)
    Test voltage: 10 kVrms (50Hz/1 min)
    Resistance Insulation resistance >1 x 108MΩm
    Frequency Max. Operating frequency: 2 GHz

    Manuals/Operating Instructions/Guides

    User Manual – TNDLD

    Declarations

    Declaration of Conformity TEC-16-ATEX-TNDLD-01

    Data Sheets

    Data Sheet – Flameproof Enclosures
