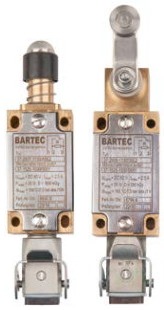

The LOCA limit switches in this series are metal-encapsulated precision switches in a robust compact construction. The connection is made either by a plug (Harting 7D) or a connection lead with cable gland (SR-SV-M 20, clearance depending on cable). The integrated basic switch is a single-pole changeover contact with a high switching accuracy and precise reproducibility of the switching point.
-25 °C to +85 °C (-13 °F to +185 °F)
| Dimensions | see datasheet |
|---|---|
| Accident conditions | Radiation resistances up to 800 kGy: Tmax. 156 °C/12 h P max. = 7.0 bar abs. Radiation resistances up to 250 kGy: Tmax. 152 °C/12 h P max. = 5.5 bar abs. |
| Radiation exposure | Under normal conditions: 50 kGy |
| Snap-action switch | Contacts Ag/Ni gold-plated |
| Switching capacity | Pmax. = 35 W at L/R ≤ 10 ms |
| Voltage, currents | UB = DC 60 V Umax. = DC 115 V Imax. = 2.5 A |
| Dielectric strength | Contact – ground: 1500 V Contact – contact: 500 V/5 s |
| Insulation resistance | at ambient tmeperature: > 100 MΩ at LOCA: 60 kΩ/ contact – contact Measuring voltage: 100 V |
| Weight | approx. 700 g |
| Enclosure/actuator material | Red bronze Stainless steel FKM PPS EPDM |
