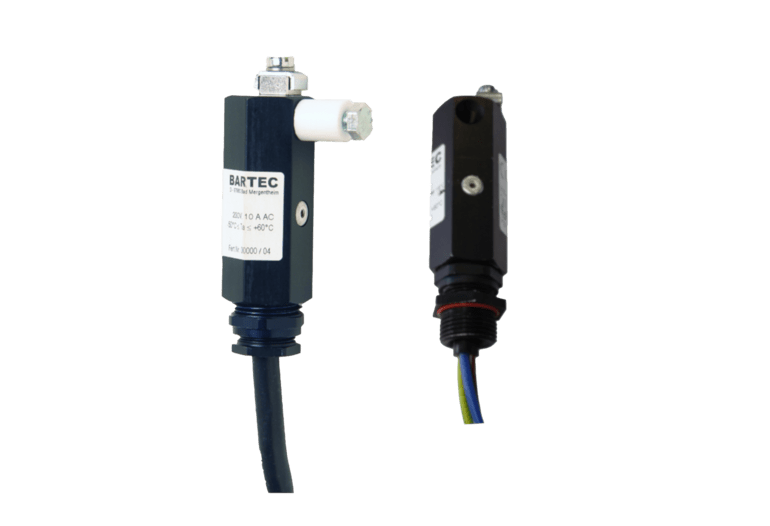

The KTE-d is a highly reliable bimetallic thermostat designed for use in hazardous (potentially explosive) areas. It is integrated into a cable and commonly used to protect devices against frost, regulate temperatures of switch and control cabinets, transmitter protection boxes, and measuring equipment. The KTE-d can also be used to indicate excessively high or low temperatures or as an alarm contact. Its ability to conform to the required minimum temperatures ensures exceptional reliability, making it a valuable tool for a wide range of applications.
| Control range | 10 °C ON/18 °C OFF (+/-3 ° K) fix (mechanical) (others on request) | |
|---|---|---|
| Electrical data | Voltage: max. AC 250 V (others on request) | |
| Current: AC 10 A (Switching current) | ||
| Connection: Flexible cable EWKF 3 x 1.5 mm²; Ø 8.1 mm or single cores | ||
| Mechanical data | Material: black anodised aluminium, seawater proof | |
| Installation: M 6 internal thread / Through hole d =5 mm or M 20 connection thread | ||
