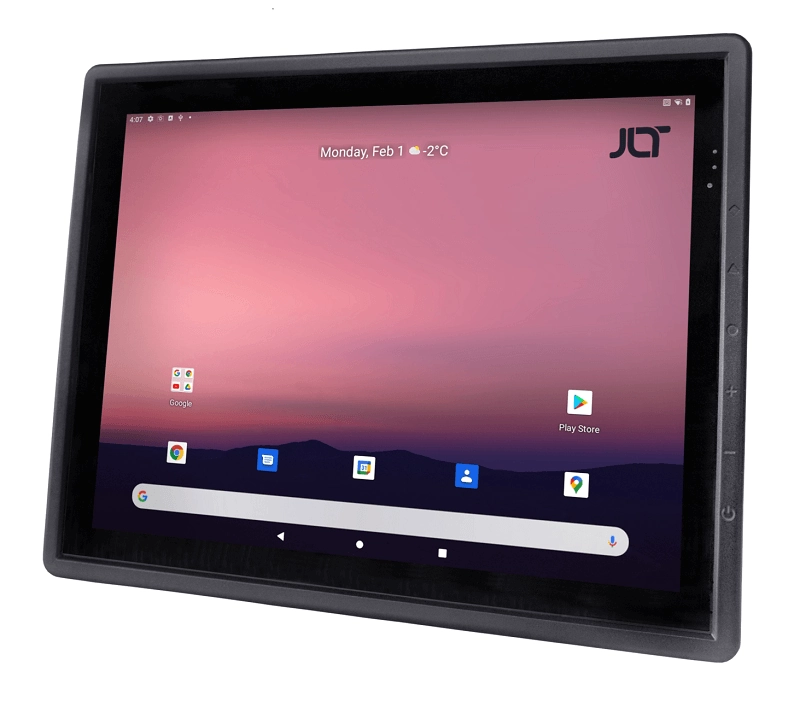

Ultra rugged 12″ vehicle mount Android PC designed to improve productivity in demanding warehouse and logistics operations
SIZE
292mm (w) x 231mm (h) x 50mm (d)
11.5 inch (w) x 9.1 inch (h) x 2 inch (d)
2.85 kg / 6.45 LB
Bluetooth v5.0 + BLE
Dualband WLAN 802.11 ac, 802.11 a/b/g/n
NFC for login
WWAN & GPS (Optional)
WLAN dual diversity antennas (IFA)
3 external (SMA) for WWAN & GPS or WLAN
and Bluetooth antennas
Encapsulated audio exciters
HD audio
Power status
Wi-Fi connection status
6x Capacitive touch buttons
Power
LED dimming +/-
or Volume +/-
1x USB C 3.1 (OTG & DP)
3x USB A 2.0
1x Ethernet 10/100/1000
1x RS232 with 5V (power feed at pin 1 or 9)
9-72 VDC isolated
Internal battery for graceful shut down at unexpected power outages
900 mAh STD or 1800 mAh Performance (optional)
~15W* (standby/off mode = 0.5 W)
Qualcomm® SnapDragon™ 660
1.90GHZ & 2.20GHz
4GB LPDDR4
12.1” XGA LED 1000 NIT
12.1” XGA LED 500 NIT
Capacitive touch screen with JLT PowerTouch™ technology and hardened glass
Light sensors for adjustable auto-dimming
64Gb – eMMC 5.1 MLC
SD Card up to 2 TB
Android 10 with GMS
SECURITY
TPM
-30° C to 55° C / -22° F to 131° F
-35° C to 75° C / -31° F to 167° F
10–95% RH
IP65 – IEC 60529:2001
5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh
30g for 11ms XYZ – IEC 60068-2-27
810G in applicable areas
