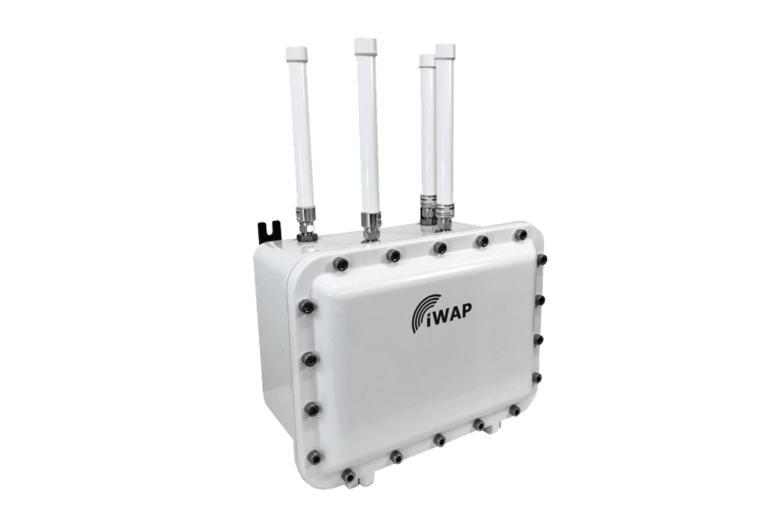

The iWAP 107 is not just an enclosure, but a Zone 1 and 21, Class 1 and Division 1 certified wireless enclosure system. Built for wireless applications, the iWAP 107 includes our proprietary iSOLATE RF isolation technology, meaning you can use standard antennas in the hazardous area.
Ex II 2 (1) GD Ex d [ia IIC Ga] IIB+H2 T5 GbEx II 2 (1) GD Ex tb [ia Da] IIIC T100°C DbcMETus Class I, II, Div 1, Groups B-GcMETus Class I, II, Zone 1/21 Groups IIB+H2, III
Ambient temperature depends on device chosen
| Material | Marine grade copper-free aluminium light alloy, epoxy powder coated or 316L Stainless Steel (optional) |
|---|---|
| Weight | Aluminium: c. 26.5kg (POE version) 316L Stainless Steel: c. 70kg (hardware dependant) |
| Dimensions | Aluminium: 415 x 315 x 250mm (16.34 x 12.4 x 9.84in) 316L Stainless Steel: 415 x 315 x 253mm (16.34 x 12.4 x 9.96in) |
