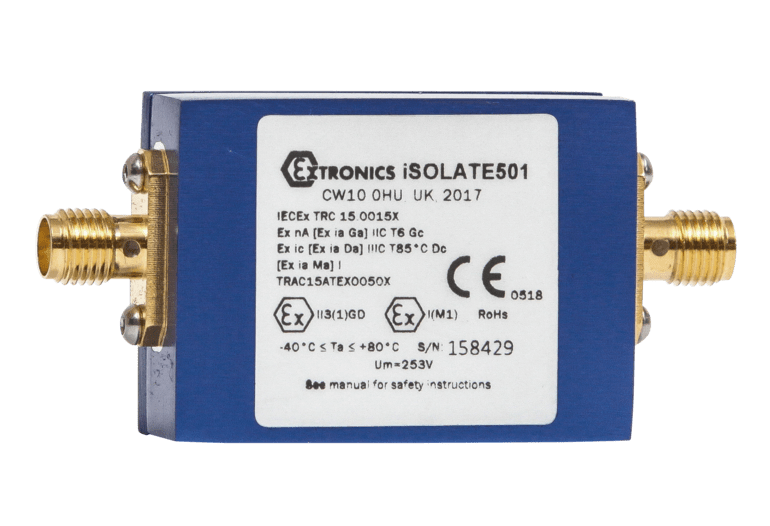

The iSOLATE501 is an ATEX, IECEx, and MET approved RF galvanic isolator for use in Zones 0, 1, 2/22 and mining applications. It is the next generation of Extronics groundbreaking technology, designed to improve further the performance of the industry proven iSOLATE500.
Ex II 3 (1) G D Ex nA [Ex ia Ga] IIC T6 Gc, Ex ic [Ex ia Da] IIIC T85°C DcEx I (M1) [Ex ia Ma] IcMETus Class I, II Div 2, Class III Div 1 & 2 Groups A-G. Class I, Zone 0, Group IIC T4. Associated equipment Class I, II, III Div 1, Groups A-G.
-40°C ≤ Ta ≤ +80°C
Material | Anodised aluminium |
---|---|
Weight | Approximately 38g (1.34oz) |
Dimensions | 57 x 28 x 13 mm (2.24 x 1.1 x 0.52 in) |
