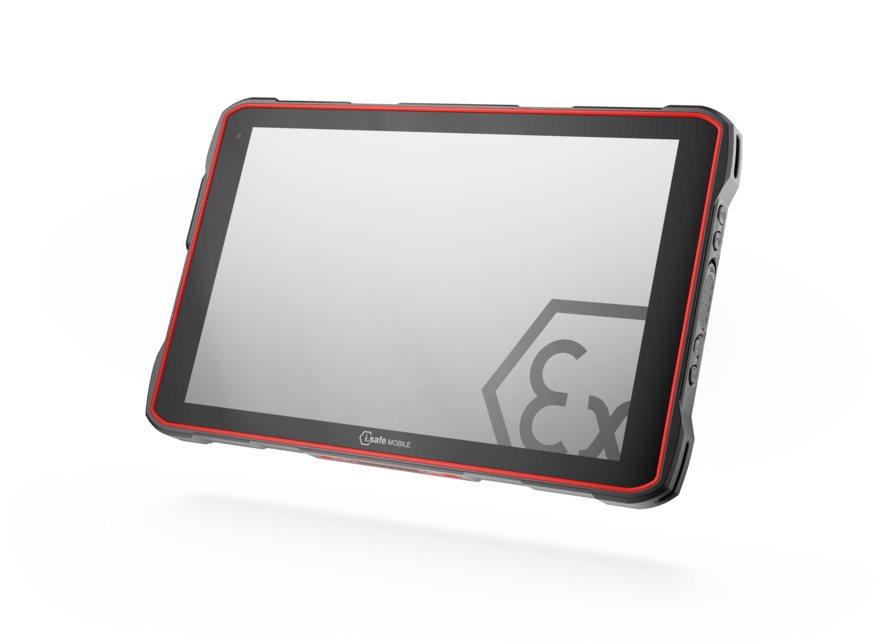

csm_PHO_PRO_FRO_IS940.M1_Front__SALL__AIN__V1_5bdb23cace

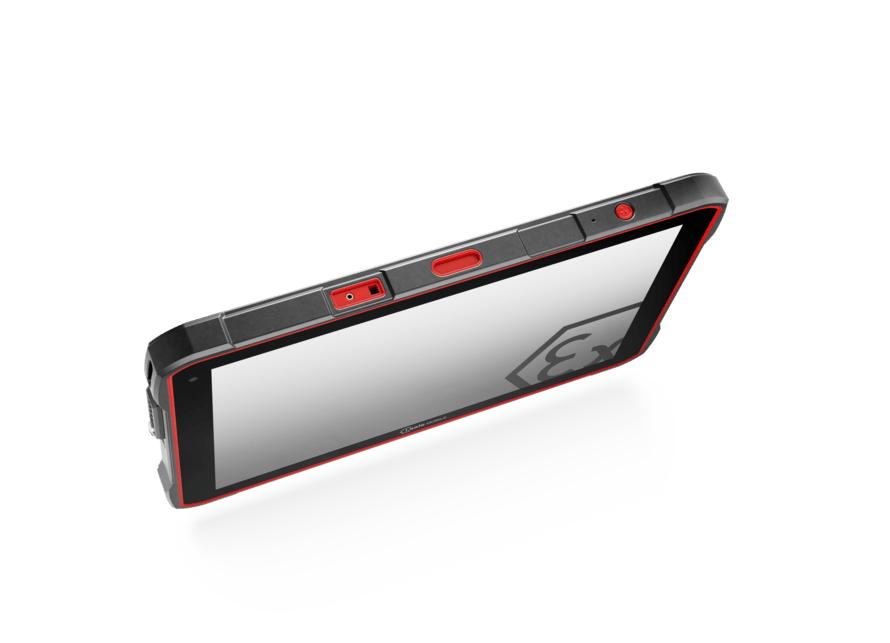

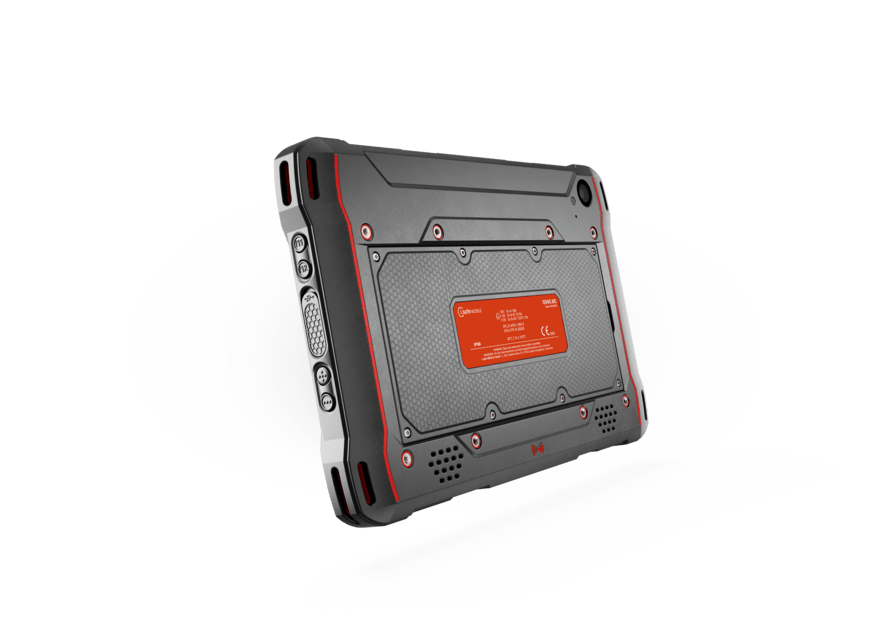

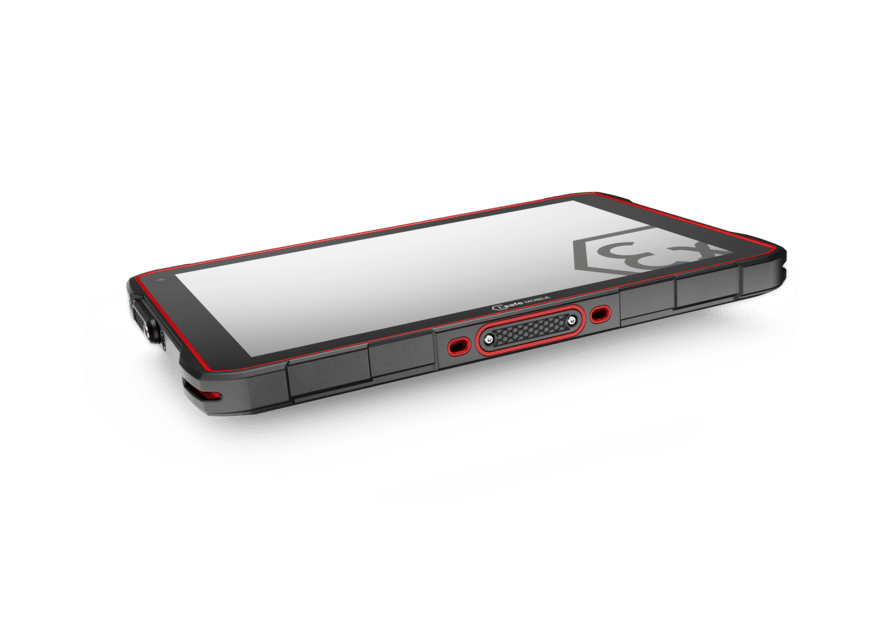

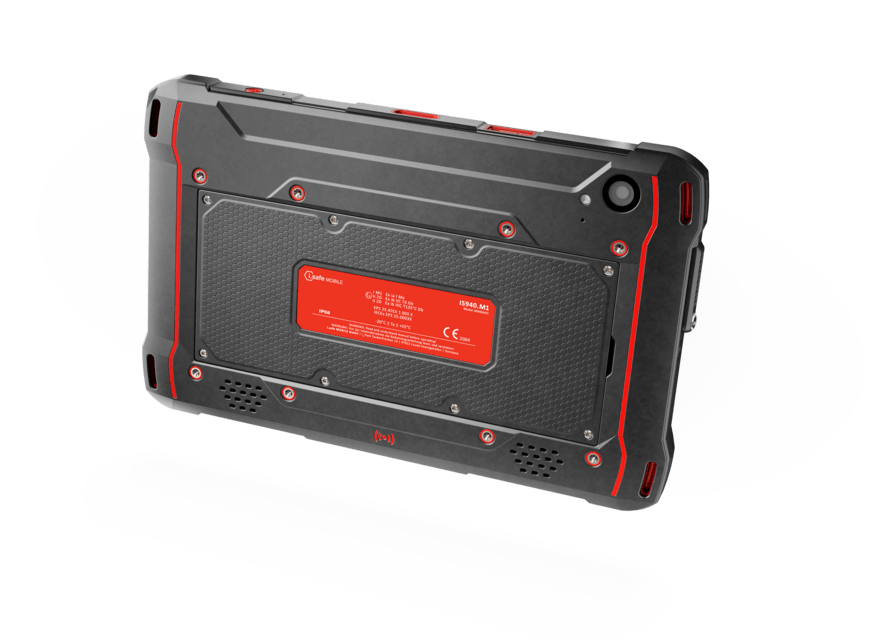

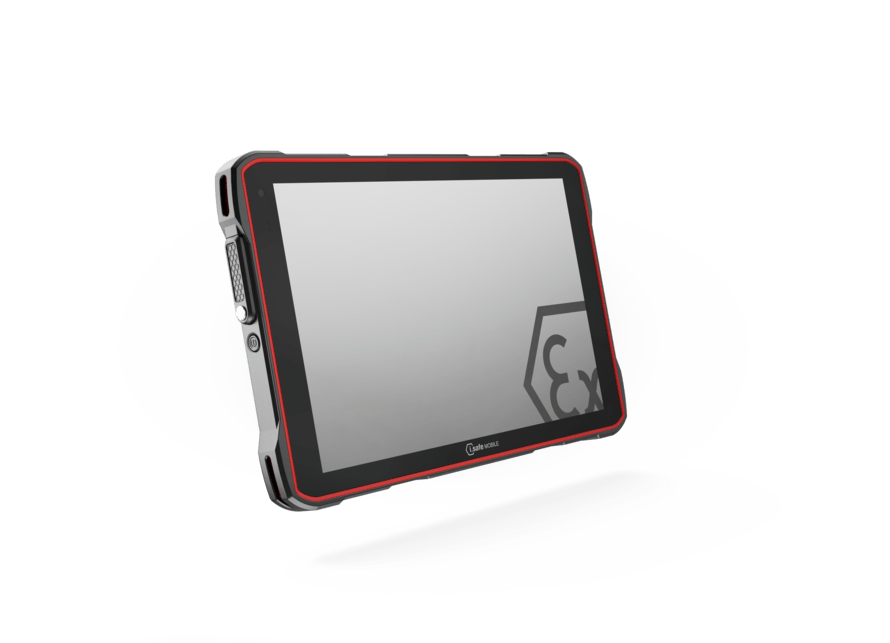

IS940.M1

The 10.1-inch 5G Android tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimised chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.

Request Quote

Full Name

Company Name

Your Email (Enter Corporate/Business Email-ID)

Email Verification Code (required)

Your Country

Your Mobile Number (required)

Device Requested

Message

Category: Products Mining

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 14
Processor	Qualcomm® QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 512 GB
Frequencies	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 266,17 x 168,46 x 19,82 mm Weight: 1059 g
Display	10,1″ (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	8160 mAh, 3,7 V replaceable
Camera	50 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C

Advantages

Android™ operating system
Processor with long-term support: Qualcomm® QCM6490 Octa Core
Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 512 GB
Clear 10.1″ display with Corning® Gorilla® Glass 3rd generation
Replaceable, powerful battery
Camera on the front and back
Wireless communications such as Wi-Fi® , Bluetooth®, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Programmable red key (e.g. for lone worker protection/SOS)
Additional programmable side buttons (assignable via “Button App”)
Mounting VESA 100
Amplified loudspeaker for noisy work environments
Type of protection: IP68 waterproof/dustproof
MIL-STD-810H
Can be used from -20 °C to +55 °C

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-SIM (Nano-SIM + eSIM)

Freely programmable key

USB-C, Docking Station

Download Datasheet

Approvals

ATEX Mining	Europe	I M1 Ex ia I Ma II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db
IECEx Mining	International	Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
ANZEx Mining	Australia	Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
IA Mining	South Africa	Ex ia I Ma Ex ib IIC T4 Gb Ex ib IIIC T135°C Db

Tablet
Battery
i.safe PROTECTOR 2.0
Power Adapter universal
Hand Strap
Display Protection Foil
Screwdriver
Safety Instructions

Downloads

Datasheet

Datasheet IS940.M1 (English)

Download (PDF, 787 KB)

Manual

	Quick Start Manual IS-MC930.1	Download (PDF, 726 KB)
	FCC Statement IS940.x	Download (PDF, 30 KB)
	IC Statement IS940.x	Download (PDF, 40 KB)
	Safety Instructions IS940.M1	Download (PDF, 2 MB)
	Operating Manual IS940.M1	Download (PDF, 0 B)

Certificates

	ATEX IS940.M1	Download (PDF, 1 MB)
	IECEx IS940.M1	Download (PDF, 1 MB)
	ANZEx IS940.M1	Download (PDF, 322 KB)
	DoC IS940.M1	Download (PDF, 327 KB)
