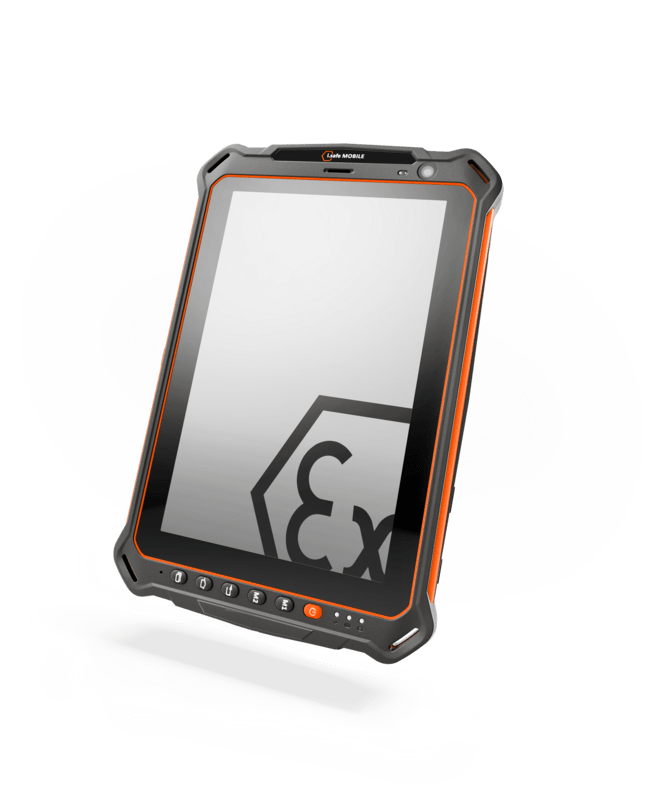

The robust and powerful tablet of the Industry 4.0 generation is Android™ Enterprise Recommended and, thanks to its zero-touch functionality, can be used quickly and is ideally suited for maintenance applications in the IoT environment. The 8-inch display, two freely programmable buttons, a long-life battery, a practical hand strap and a separate leather bag with a shoulder/belt or carry strap system are further highlights.
| Operating system | Android™ 13 |
|---|---|
| Processor | Qualcomm® Snapdragon SDM660 Octa Core |
| Memory | 4 GB RAM 64 GB internal memory microSD to 512 GB |
| Frequencies | 2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39 |
| Dimensions | Size: 237 x 156 x 22 mm Weight: 890 g |
| Display | 8,0″ (20,32 cm) usable with gloves |
| Battery | 8160 mAh, 3,7 V |
| Camera | 13 MP AF rear 5 MP FF front |
| Connectivity | Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou Near Field Communication |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C |
 ATEX |
Europe | II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X |
 IECEx |
International | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
 NEC500 |
North America | Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135°C Class III Div. 1 |
 EAC |
Russia | 1Ex ib IIC T4 Gb X Ex ib IIIC T135°C Db X |
 KCs |
South Korea | Ex ib IIC T4 Ex ib IIIC T135°C |
 INMETRO |
Brazil | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
 Japan-Ex |
Japan | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
IA |
South Africa | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
 PESO |
India | Ex ib IIC T4 Gb |
 |
